Tripp Lite 3-Phase PDU Switched 22.2kW 220/230V 24 C13 6 C19 Touchscreen 0U (pdu3xevsr6g32b)

This item is brand-new, factory sealed.

The PDU3XEVSR6G32B 23kW 3-Phase Switched Power Distribution Unit provides advanced network control and remote power monitoring with the ability to turn on, turn off, reboot or lock out power to each outlet. By reducing the frequency of on-site visits, these advanced remote capabilities can save you money and reduce downtime.

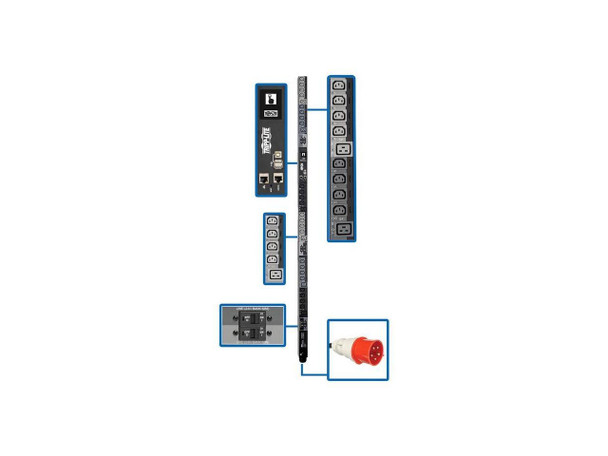

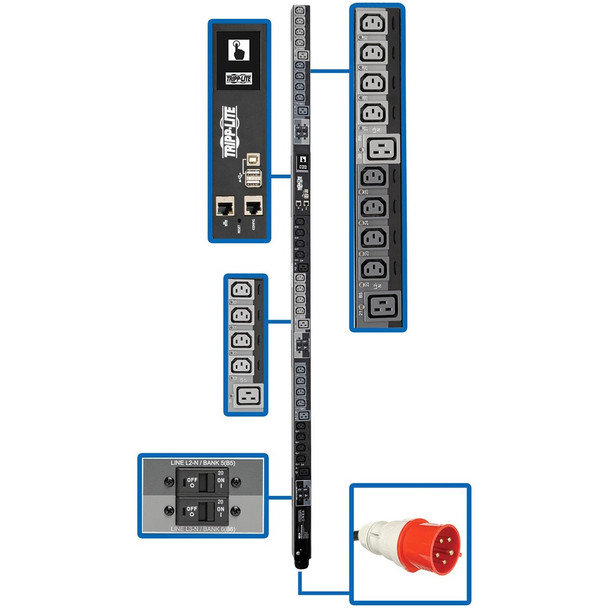

The 0U PDU features 30 switched 220-240V outlets (24 C13 and 6 C19) with included plug-lock insert sleeves to prevent cables from becoming accidentally disconnected. A 1.8-meter cord with IEC 309 32A Red 380-415V plug connects the PDU to a compatible AC power source, generator or protected UPS.


The built-in Java-free HTML5-based LX Platform network interface enables full remote access for PDU status monitoring and email notifications via secure web browser, SNMP, telnet or SSH. It supports 10/100 Mbps auto-sensing for optimum communication with an Ethernet network. Optional EnviroSense2 modules (sold separately) provide a variety of environmental monitoring capabilities. Protocols supported include IPv4, IPv6, HTTP, HTTPS, SMTP, SNMPv1, SNMPv2c, SNMPv3, Telnet, SSH, CLI, FTP, DHCP and NTP.


A color touchscreen LCD lets you toggle between menus to monitor input current level per phase, output current per load bank and per outlet with 1% billing-grade accuracy, environmental sensor data and network information. It also generates a unique QR code to allow access to the switchable PDU through a mobile device. PDU Type
Switched INPUT
Input Phase
3-Phase
PDU Input Voltage
380, 400, 415
Recommended Electrical Service
Three-phase 32A 380-415V service
Maximum Input Amps
32
PDU Plug Type
IEC-60309 32A RED (3P+N+E)
Input Cord Length (ft.)
6
Input Cord Length (m)
1.83 OUTPUT
Output Capacity Details
23kW (415/240V), 22.2kW (400/230V), 21.1kW (380/220V) total capacity, 32A max per output phase (L1, L2, L3), 20A max per breakered outlet bank, 16A max per C19 outlet, 12A max per C13 outlet
Frequency Compatibility
50 / 60 Hz
Output Receptacles
24) C13, (6) C19
Output Nominal Voltage
220-240V
Overload Protection

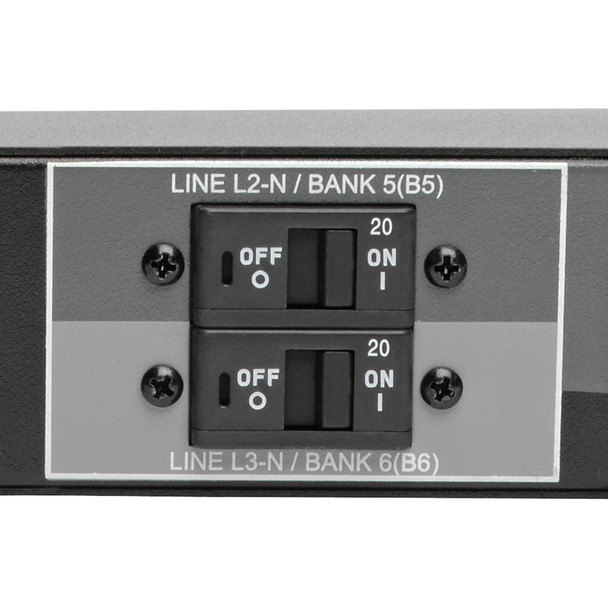

Six 20A breakers protect 4 C13 and 1 C19 outlet each
Customized Load Management Receptacles
Each outlet is individually controllable via remote interface USER INTERFACE, ALERTS and CONTROLS
Reported Load Segments
Reports input current per phase (L1, L2, L3), plus output current for each output load bank (B1-B6) and individual output receptacle (1-30), Outlets are color-coded and labeled for phase and load bank identification, L1-N feeds black outlets (B1, B4), L2-N feeds dark-gray outlets (B2, B5), L3-N feeds light-gray outlets (B3, B6)
Front Panel LCD Display
Touchscreen LCD reports NETWORK DATA (IP address, Subnet Mask, Gateway, MAC Address, Device Name, Model, Serial Number), INPUT PHASE DATA (Amperage, Wattage, Voltage per phase, plus Unbalance percentage), LOAD BANK DATA (Amperage, Wattage, Voltage per load bank, plus total PDU output in watts), OUTLET DATA (Amperage, Wattage per outlet), CONFIGURATION DATA (Listing of current configuration settings), ENVIRONMENTAL DATA (Reports data and status of E2 sensor modules, Sensor options are available for temperature and humidity, plus input and output dry contacts), MOBILE ACCESS (Generates a unique QR code to view reported PDU details on a mobile device)
Front Panel LEDs
One LED for each output receptacle offers power availability information: GREEN (Power ON, load bank capacity <80%), YELLOW (Power ON, load bank capacity >80%), RED (Power OFF/undervoltage), RED FLASHING (Power OFF/breaker trip), LED OFF (Power OFF). Network Activity (Green): Flashes for network activity. Link/Network Speed (Yellow): On steady for any speed.
Switches
LX Platform Interface: Recessed reset switch for interface reboot and factory reset
Current Measurement Accuracy (Amps)
+/-1%
Voltage Measurement Accuracy (Volts)
+/-1%
Power Measurement Accuracy (Watts)
+/-1% SURGE / NOISE SUPPRESSION
Automatic Shut-Off
No PHYSICAL
Material of Construction
Metal
Rack Height
0U
Form Factors Supported

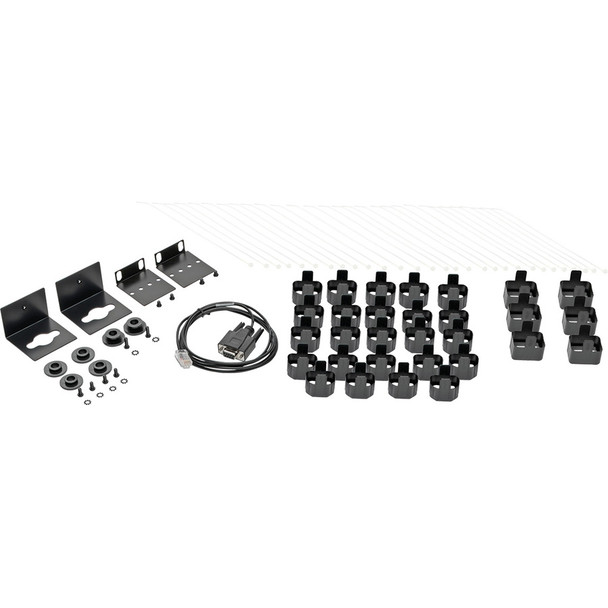

Vertical rackmount installation supported with included mounting brackets, supports toolless mounting in button-mount compatible racks
PDU Form Factor
Vertical (0U) ENVIRONMENTAL
Operating Temperature Range
32^o to 122^oF (0^o to 50^oC)
Storage Temperature Range
-22^o to 140^oF (-30^o to 60^oC)
Relative Humidity
5% to 95% non-condensing
Operating Elevation
0-10000 ft. (0-3000 m) COMMUNICATIONS
PowerAlert Software
LX Platform Interface: PowerAlert Device Manager
Communications Cable
USB B-to-USB A Configuration/Console Access cable
Network Monitoring Port
RJ45 Network port, RJ45 Config/Console Access port, 2x USB A ports supports a variety of Envirosense2 environmental and control modules. See Accessories>Management Hardware section for more information about these modules. USB B port (Configuration and Console Access)
SNMP Compatibility
SNMP V1, V2c, V3
Network Compatibility
10 Mbps, 100 Mbps (Fast Ethernet), 1 Gbps (Gigabit)
Communications Interface
Pre-installed network card, RS-232, USB FEATURES and SPECIFICATIONS
High Availability PDU Features
Auto Probe Monitoring and Reboot (included), Auto Load Shedding STANDARDS and COMPLIANCE
Product Certifications
EN 60950-1
Product Compliance
RoHS, CE (Europe), FCC Part 15 Class A (USA), UKCA, Trade Agreements Act (TAA)Item Dimension (L inchxW inchxH inch)
7 x 10 x 76

Weight
39.00 lb

Warranty Information
2 year limited
