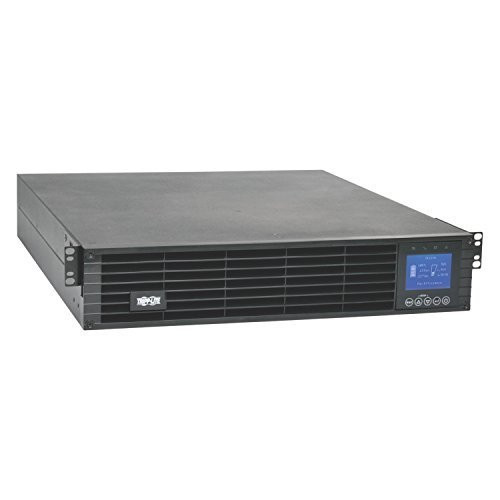

Tripp Lite 3000va 2700w Intl Ups Smart Online Lcd Rackmount 208/230v Usb 2u - 230 V Ac - 5 Minute - 2u Rack-mountable - 5 Minute - 2 X Iec 60320 C19 - , 8 X Iec 60320 C13 (suint3000lcd2u)
(No reviews yet)
Write a Review
- SKU:
- 18159182
- MPN:
- suint3000lcd2u
- Availability:
- Usually ships the same or next business day. In stock at our CA, IL, PA, TX warehouses.
- Shipping:
- Calculated at Checkout
- Stock Update:
- 12/08/2025 09:05:17 PM PST
- Stock Update:
- 12/08/2025 09:05:17 PM PST
Description
This item is brand-new, factory sealed.
DescriptionThe SUINT3000LCD2U SmartOnline 3000VA/2700W On-Line Double-Conversion UPS converts AC input to DC power, and then converts DC to fully regulated sine wave AC output with +/-2% voltage regulation in online and battery modes. An interactive front-panel LCD interface provides detailed real-time UPS status and advanced setup and configuration options.
Features
Protects Mission-Critical Rack-Mounted Equipment
Converts AC input to DC power, then DC to fully regulated sine wave AC output
+/-2% voltage regulation in online and battery modes
Selectable 200/208/220/230/240V output voltage
3000VA/2700W capacity
2 C19 and 8 C13 outlets
570-joule surge suppression rating
Supports tower installation with 2-9USTAND accessory
Interactive Front-Panel LCD
Reports detailed status information, including load and battery levels
Offers advanced configuration options, including output voltage and power strategies
5 Power Strategies
Auto Adaptive enables high efficiency and high-quality operation as necessary for ideal equipment protection
Max Efficiency favors economy operation with high 95% efficiency
Max Quality favors on-line, double-conversion mode, maintaining +/-2% output voltage regulation and zero transfer time
Frequency Regulation and Frequency Conversion enable +/-0.05 Hz output regulation for selected frequency (50/60 Hz)
OUTPUT
Output Volt Amp Capacity (VA): 3000
Output kVA Capacity (kVA): 3
Output Watt Capacity (Watts): 2700
Output kW Capacity (kW): 2.7
Output Capacity Details: DE-RATING INFORMATION: Max output in Frequency Conversion mode is reduced to 1890 watts for 208/220/230/240V output voltages Max output is reduced to 2160W at 200V output voltage in all operating modes OVERLOAD CAPACITY: Supports inverter operation up to 105% load continuously, 125% for 3 minutes, 150% for 30 seconds and >150% for 0.5 seconds before switching to BYPASS (when bypass input voltage and frequency are WITHIN bypass limits) or SHUTDOWN (when bypass input voltage or frequency are OUTSIDE bypass limits).
Power Factor: 0.9
Crest Factor: 3:1
Nominal Output Voltage(s) Supported: 200V, 208V, 220V, 230V, 240V
Nominal Voltage Details: Nominal output voltage is user configured on first power-on
Frequency Compatibility: 50 / 60 Hz, Supports 50 to 60 Hz and 60 to 50 Hz conversion
Frequency Compatibility Details: Output frequency matches input nominal on startup Output capacity de-rates by 30% during frequency conversion operation
Output Voltage Regulation (Line Mode): +/- 2%
Output Voltage Regulation (Economy Line Mode): +/- 10%
Output Voltage Regulation (Battery Mode): +/- 2%
Output Receptacles: (8) C13, (2) C19
Included Output Power Cables: Includes 2 C13 to C14 and 1 C19 to C20 power cables
Load Management Receptacles: Two switchable 4 outlet load banks (3 C13 and 1 C19 per bank)
Output AC Waveform (AC Mode): Pure Sine wave
Output AC Waveform (Battery Mode): Pure Sine waveINPUT
Rated input current (Maximum Load): 14.97A
Nominal Input Voltage(s) Supported: 200V AC, 208V AC, 220V AC, 230V AC, 240V AC
UPS Input Connection Type: C20 inlet
Input Phase: Single-PhaseBATTERY
Full Load Runtime (min.): 5 min. (2700w)
Half Load Runtime (min.): 13.5 min. (1350w)
Expandable Battery Runtime: Supports extended runtime with optional external battery packs
External Battery Pack Compatibility: BP72V15-2U(limit 1), BP72V28RT-3U(multi-pack compatible), BP72V18-2US(multi-pack compatible)
DC System Voltage (VDC): 72
Battery Recharge Rate (Included Batteries): 3.0 hours from 10% to 90% (typical, full load discharge)
Internal UPS Replacement Battery Cartridge: RBC72S
Battery Access: Front panel battery access door
Battery Replacement Description: Hot-swappable, replaceable batteries
Expandable Runtime: YesVOLTAGE REGULATION
Voltage Regulation Description: Online, double-conversion power conditioning
Overvoltage Correction: 2% output voltage regulation during overvoltages to 288
Undervoltage Correction: 2% output voltage regulation during undervoltages to 160V (100% load), 130V (70% load), 100V (30% load)USER INTERFACE, ALERTS and CONTROLS
Front Panel LCD Display: Interactive front-panel LCD interface reports UPS operating mode, detailed UPS status and site-power information LCD interface also enables a variety of advanced UPS setup and configuration options
Switches: 5 front panel switches: On/Off, Up, Down and Escape
Alarm Cancel Operation: Power-fail alarm can be silenced by following on-screen prompts
Audible Alarm: Audible alarm indicates power failure, low battery, overload and fault
LED Indicators: 4 front panel LEDs: AC input (green), AC output (green), Battery (yellow), Fault (red)SURGE / NOISE SUPPRESSION
UPS Dataline Suppression Details: Single line dialup / network dataline protection included
EMI / RFI AC Noise Suppression: Yes
AC Suppression Joule Rating: 570
AC Suppression Response Time: InstantaneousPHYSICAL
Included Mounting Accessory Description 4 post installation: accessories included
Installation Form Factors Supported with Included Accessories: 4 post 19 inch rackmount
Installation Form Factors Supported with Optional Accessories: 2 post rackmount(2POSTRMKITWM), 2-4 post front rail rackmount(UPSHDEARKIT), Tower(2-9USTAND)
Primary Form Factor: Rackmount
Rack Height (U Spaces) : 2
Cooling Method: Fan
UPS Housing Material: MetalENVIRONMENTAL
Operating Temperature Range: +32 to +104 degrees Fahrenheit / 0 to +40 degrees Celsius.
Storage Temperature Range: +5 to +122 degrees Fahrenheit / -15 to +50 degrees Celsius.
Relative Humidity: 5 to 95%, non-condensing
AC Mode BTU / Hr. (Full Load): 933
AC Economy Mode BTU / Hr. (Full Load): 485
Battery Mode BTU / Hr. (Full Load): 1399
AC Mode Efficiency Rating (100% Load): >90%
AC Economy Mode Efficiency Rating (100% Load): >95%
Audible Noise: <50dB at front side 1MCOMMUNICATIONS
Communications Interface: USB (HID enabled), DB9 Serial, Contact closure, EPO (emergency power off), Slot for SNMP/Web interface
Network Management Cards: SNMPWEBCARD, WEBCARDLX
PowerAlert Software: For local monitoring via the UPSs built-in communication ports, download PowerAlert Local software at http://www.tripplite.com/poweralert
Communications Cable: USB and DB9 cabling included
WatchDog Compatibility: Supports Watchdog application, OS and hard-reboot restart options for remote applicationsLINE / BATTERY TRANSFER
Transfer Time: No transfer time (0 ms.) in online, double-conversion mode, 4 ms. transfer time during economy mode operation
Low Voltage Transfer to Battery Power (Setpoint): 160V (100% load), 140V (66% load), 120V (33% load)
High Voltage Transfer to Battery Power (Setpoint): 288VSPECIAL FEATURES
Grounding Lug: Back panel grounding lug included
Cold Start (Startup in Battery Mode During a Power Failure): Cold-start operation supported
High Availability UPS Features: Automatic inverter bypass, Hot swappable batteries
Green Energy-Saving Features: High efficiency economy mode operation
Individually controllable load banksCERTIFICATIONS
UPS Certifications: CE
ENERGY STAR Qualified
Meets FCC Part 15 Category A (EMI)
Tested to CSA (Canada)
Tested to EAC (Belarus, Kazakhstan, Russia)
Tested to SASO (Saudi Arabia)
Tested to UL1778 (USA)
UPS Certification Details: Meets EMI approvals IEC62040-2:2006 FCC Part 15Item Dimension (L inchxW inchxH inch)
10 x 24 x 30
Weight
84.22lb
Warranty Information
2-year limited warranty
Features
Package Contents:
Yes
Restriction of Hazardous Substances (RoHS)
Philippines
- SmartOnline SUINT3000LCD2U 3000VA Rack-mountable UPS
- 4-post Rack-mount Installation Kit
- USB Cable
- RS-232 Cable
- C19-to-C20 Power Cable
- 2 x C13-to-C14 Power Cables
- Owner's Manual
Environmentally Friendly:
Yes
Environmental Compliance:
Restriction of Hazardous Substances (RoHS)
Country of Origin:
Philippines
Specs
| Power Description | |
| Load Capacity (Watt) | 2700 W |
| Input Voltage | 230 V AC |
| Output Voltage | 230 V AC |
| Load Capacity (VA) | 3000 VA |
| Physical Characteristics | |
| Form Factor | Rack-mountable |
| Weight (Approximate) | 68.72 lb |
| Height | 3.5" |
| Width | 17.2" |
| Depth | 24.3" |
| Rack Height | 2U |
| Warranty | |
| Limited Warranty | 2 Year |
| Battery Information | |
| Backup/Run Time (Full Load) | 5 Minute |
| General Information | |
| Brand Name | Tripp Lite series |
| Manufacturer Website Address | http://www.eaton.com |
| Marketing Information | Double-Conversion UPS Protects Equipment Against Damage, Downtime and Data Loss This on-line double-conversion UPS system maintains perfect output by converting AC input to DC, then reconverting UPS output to fully regulated sine wave AC. Constant on-line operation completely isolates sensitive equipment from every power problem on the AC line. The SmartOnline® SUINT3000LCD2U provides the highest level of power protection and battery backup for education, healthcare, military, government and other mission-critical IT applications where space is limited, but premium power reliability is essential. Reliable, Expandable Battery Backup Keeps You Operational Through Power Outages The field-replaceable, hot-swappable VRLA battery modules allow you to work through short power failures and give you enough time to safely save files and shut down your system in case of a prolonged blackout. Zero transfer time between on-line and battery modes maintains continuous operation of connected equipment without interruption or rebooting. Extra runtime is available by connecting up to four optional extended battery modules (BP72RT, sold separately). Optional LX Platform Network Management Card Allows Remote Access 24/7 The WEBCARDLXE network interface (sold separately) enables full remote configuration and management, including load shedding, reboots of connected equipment and safe shutdowns. The IP-based Auto Probe feature ensures continuous network uptime by communicating with other network devices, detecting lost connectivity and automatically rebooting IT equipment. Optional EnviroSense2 modules (E2MT, E2MTDO and E2MTHDI, all sold separately) provide a variety of environmental monitoring and control options. 10 Outlets Protect Your Connected Components Eight C13 and two C19 outlets provide connected equipment with pure sine wave AC output and allow you to manage power consumption down to the outlet group level. Power provided by these outlets is filtered to protect connected equipment against damaging surges and line noise. Five outlets are grouped into two load banks that let you shed non-critical loads to extend runtime for critical loads. Premium Protection from EMI/RFI Line Noise Helps Your Equipment Perform Better This UPS system filters out disruptive electromagnetic and radio frequency interference that can inflict hardware damage or data loss. This EMI/RFI filtering also helps your connected components perform better and last longer. Clear LCD Interface Keeps You Informed at a Glance The menu-driven front-panel LCD provides detailed alarms and notifications to help diagnose any issues. It provides system status, event logs, battery and power module status, usage analytics, serial number, firmware update info and more. Audible alarms can be disabled through the front menu when the UPS goes to battery power. The LCD rotates to accommodate both rack-mount and tower installation. Advanced Communications Ports Allow for Automatic Saves and Shutdowns RS-232 and USB ports connect to a device for a variety of communication options (cables are included). A dry-contact relay port can be programmed through the LCD to provide reliable communications to automation and industrial components. The RPO/ROO port permits emergency shutdown or remote restart of all connected equipment. More from the Manufacturer |
| Product Type | Double Conversion Online UPS |
| Product Name | SmartOnline SUINT3000LCD2U 3000VA Rack-mountable UPS |
| Manufacturer | Eaton Corporation |
| Manufacturer Part Number | SUINT3000LCD2U |
| Product Model | SUINT3000LCD2U |
| Product Line | SmartOnline |
| Technical Information | |
| Receptacle Type |
|
| Receptacle Detail |
|
