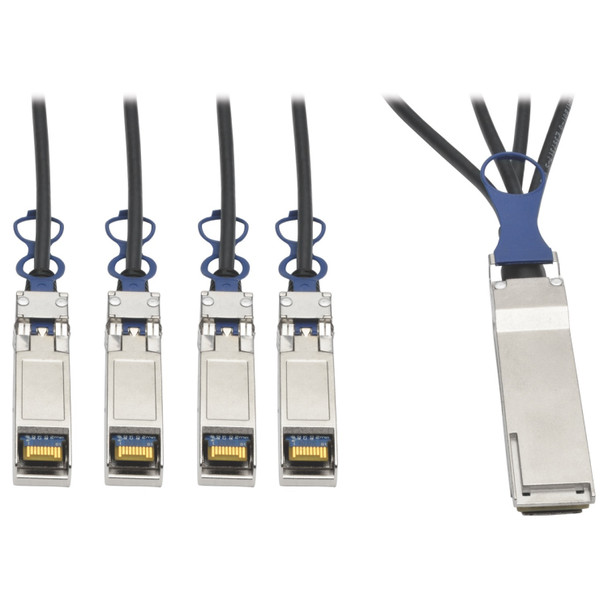

Tripp Lite 40gbe Qsfp+ To 10gbe Sfp+ Passive Copper Breakout Cable 1m 3' - Qsfp+/sfp+ For Network Device, Switch, Server - 5 Gb/s - 3.28 Ft - 1 X Qsfp+ Male Network - 4 X Sfp+ Male (n281-01m-bk)
- SKU:
- 19846588
- MPN:
- n281-01m-bk
- Availability:
- Out of stock
- Stock Update:
- 07/03/2025 11:50:07 AM PST
- Stock Update:
- 07/03/2025 11:50:07 AM PST
Description
This item is brand-new, factory sealed.
The N281-01M-BK 40 GbE QSFP+ to 10 GbE SFP+ Passive DAC Copper Breakout Cable provides next-generation performance by connecting your 40 GbE QSFP+ system to four 10 GbE SFP+ servers, switches and/or adapters. It's ideal for connecting active network equipment in data centers, high-end servers and enterprise wiring closets.
This one-meter hot-pluggable cable features zinc die-cast QSFP+ and SFP+ male connectors for superior EMI resistance, minimal insertion loss and low crosstalk for better performance. Ergonomic pull-tab ejectors make connecting to equipment a quick, easy task. Eight-pair wire technology is optimized for bandwidth-intense applications, including 40-Gigabit Ethernet (40GBASE-CR4), 10GBASE-CR4, 6G SAS, Fibre Channel and SONET.
Flexible 30 AWG conductors maintain a smooth high-frequency response (20 GHz). The N281-01M-BK undergoes a rigorous assembly and testing procedure aimed at eliminating unnecessary signal loss. It's fully compliant with the MSA (Multi-Source Agreement) SFF-8431 and SFF-8436 architecture for guaranteed compatibility with all QSFP and QSFP+ ports. Compatible with SDR, DDR and QDR.
Features
Yes
Environmental Compliance:
Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
Restriction of Hazardous Substances (RoHS)
Country of Origin:
China
Specs
| Physical Characteristics | |
| Product Color | Black |
| Color Family | Black |
| Shipping Weight (Approximate) | 8.80 oz |
| Shipping Width | 10.50" |
| Shipping Height | 12" |
| Warranty | |
| Limited Warranty | Lifetime |
| General Information | |
| Brand Name | Tripp Lite series |
| Manufacturer Website Address | http://www.eaton.com |
| Marketing Information | The N281-01M-BK 40 GbE QSFP+ to 10 GbE SFP+ Passive DAC Copper Breakout Cable provides next-generation performance by connecting your 40 GbE QSFP+ system to four 10 GbE SFP+ servers, switches and/or adapters. It's ideal for connecting active network equipment in data centers, high-end servers and enterprise wiring closets. This one-meter hot-pluggable cable features zinc die-cast QSFP+ and SFP+ male connectors for superior EMI resistance, minimal insertion loss and low crosstalk for better performance. Ergonomic pull-tab ejectors make connecting to equipment a quick, easy task. Eight-pair wire technology is optimized for bandwidth-intense applications, including 40-Gigabit Ethernet (40GBASE-CR4), 10GBASE-CR4, 6G SAS, Fibre Channel and SONET. Flexible 30 AWG conductors maintain a smooth high-frequency response (20 GHz). The N281-01M-BK undergoes a rigorous assembly and testing procedure aimed at eliminating unnecessary signal loss. It's fully compliant with the MSA (Multi-Source Agreement) SFF-8431 and SFF-8436 architecture for guaranteed compatibility with all QSFP and QSFP+ ports. Compatible with SDR, DDR and QDR. More from the Manufacturer |
| Product Type | Network Cable |
| Product Name | QN281-01M-BK QSFP+/SFP+ Network Cable |
| Manufacturer | Eaton Corporation |
| Manufacturer Part Number | N281-01M-BK |
| Product Model | N281-01M-BK |
| Technical Information | |
| Connector on Second End Details | 4 x SFP+ Network - Male |
| Data Transfer Rate | 40 Gbit/s |
| Cable Type | QSFP+/SFP+ |
| Connector on First End Details | 1 x QSFP+ Network - Male |
| Connector Type on First End | QSFP+ Network - Male |
| Connector Type on Second End | SFP+ Network - Male |
| Cable Length | 3.30 ft |
| Features |
|
| Device Supported |
|
| American Wire Gauge | 30 AWG |
