Tripp Lite

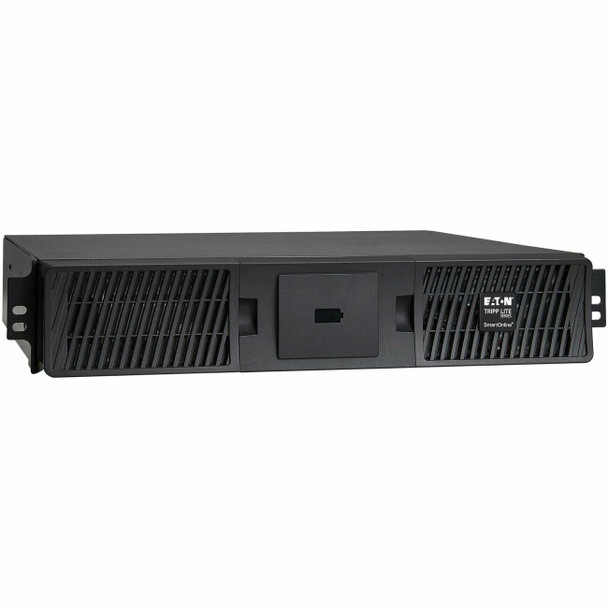

Tripp Lite 72V Extended Battery Module [EBM] for SmartOnline UPS Systems, 2U Rack/Tower (bp72rt)
- SKU:
- 20508641
- MPN:
- bp72rt
- Availability:
- Usually ships the same or next business day. In stock at our CA, IL, SC, TX warehouses.
- Shipping:
- Calculated at Checkout
- Stock Update:
- 04/10/2026 09:25:57 AM PST
- Stock Update:
- 04/10/2026 09:25:57 AM PST
Description
This item is brand-new, factory sealed.
Provides extended runtime for compatible UPS systems in education, healthcare, military, government and other IT applications in small or mid-size networks.
Features | Backup Battery Module Gives Your Compatible UPS System Extended Runtime
The valve-regulated lead-acid (VRLA) BP72RT offers extended battery runtime when used in conjunction with SU2200RTXLCD2U, SU2200RTXLCDN, SU3000RTXLCD2U, SU3000RTXLCD2UN, SUINT2200LCD2U and SUINT3000LCD2U SmartOnline® UPS systems. It can also be daisy-chained for a maximum of four matching battery packs to deliver even longer extended-run operation. Heavy-gauge cabling with high-current DC connectors is included for safe, simple installation.
Versatile Installation Options
You can mount the BP72RT in 2U of space in an EIA-standard 19-inch rack using the included 4-post rail kit or an optional 2-post rail kit (RK2PC, sold separately). You can also adapt it for tower installation using the UPS system's support stands.
Package Contents:
- 72V Extended Battery Module (EBM) for SmartOnline UPS Systems, 2U Rack/Tower
- External Battery Cable
- Rack-mounting Hardware
- Quick Start Guide
Features
- 72V Extended Battery Module (EBM) for SmartOnline UPS Systems, 2U Rack/Tower
- External Battery Cable
- Rack-mounting Hardware
- Quick Start Guide
Environmentally Friendly:
Yes
Compatibility:
Tripp Lite SmartOnline UPS Systems:
- SU2200RTXLCD2U
- SU2200RTXLCDN
- SU3000RTXLCD2U
- SU3000RTXLCD2UN
- SUINT2200LCD2U
- SUINT3000LCD2U
Environmental Compliance:
Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
Restriction of Hazardous Substances (RoHS)
Country of Origin:
Philippines
Specs
| Physical Characteristics | |
| Weight (Approximate) | 86.40 lb |
| Height | 3.4" |
| Width | 17.3" |
| Depth | 23.8" |
| Warranty | |
| Additional Warranty Information | <p><b>Extended Service Plans:</b> 5-year depot exchange plan: TL9SW5Y-3000BCExpedited parts coverage for 5 yearsParts, electronics and batteries coverageNext business day shippingTechnical support5-year onsite plan: TLWEBN75XX-7000BCOnsite parts and labor coverage for 5 yearsParts, electronics and batteries coverage24x7 onsite labor coverage, next-day responseNext-day shippingTechnical support</p> |
| Limited Warranty | 2 Year |
| General Information | |
| Brand Name | Tripp Lite series |
| Manufacturer Website Address | http://www.eaton.com |
| Marketing Information | Provides extended runtime for compatible UPS systems in education, healthcare, military, government and other IT applications in small or mid-size networks. Features | Backup Battery Module Gives Your Compatible UPS System Extended Runtime The valve-regulated lead-acid (VRLA) BP72RT offers extended battery runtime when used in conjunction with SU2200RTXLCD2U, SU2200RTXLCDN, SU3000RTXLCD2U, SU3000RTXLCD2UN, SUINT2200LCD2U and SUINT3000LCD2U SmartOnline® UPS systems. It can also be daisy-chained for a maximum of four matching battery packs to deliver even longer extended-run operation. Heavy-gauge cabling with high-current DC connectors is included for safe, simple installation. Versatile Installation Options You can mount the BP72RT in 2U of space in an EIA-standard 19-inch rack using the included 4-post rail kit or an optional 2-post rail kit (RK2PC, sold separately). You can also adapt it for tower installation using the UPS system's support stands. |
| Product Type | External Battery Pack |
| Product Name | 72V Extended Battery Module (EBM) for SmartOnline UPS Systems, 2U Rack/Tower |
| Manufacturer | Eaton Corporation |
| Manufacturer Part Number | BP72RT |
| Product Model | BP72RT |
| Technical Information | |
| Battery Chemistry | Lead Acid |
| Hot Swappable | Yes |
| Output Voltage | 72 V DC |
| Battery Characteristics |
|
| Environmental Conditions | |
| Maximum Operating Temperature | 104°F (40°C) |
| Minimum Operating Temperature | 32°F (0°C) |
