Tripp Lite 8-Port Gigabit Ethernet Switch L2 Managed w/ PoE 10/100/1000Mbps (ngs8c2poe)

This item is brand-new, factory sealed.

The energy-efficient NGS8C2POE 8-Port Gigabit L2 Web-Smart Managed PoE+ Network Switch features eight twisted-pair RJ45 Gigabit Ethernet ports that support auto-negotiable 10/100/1000 Mbps and auto MDI/MDIX cross-over detection functions for convenient plug-and-play capability. Each port can be configured to supply up to 30W of PoE+ (Power over Ethernet) via network cable to connected devices, such as VoIP phones and security cameras. Two dedicated mini-GBIC SFP ports are also included for uplinking data to other switches via optical fiber or copper.

Easy-to-read LEDs indicate connection and activity status for each port. Built-in web-smart management software lets you monitor and control each connected device via secure web-based interface. Each port supports up to 2 Gbps with full duplex.

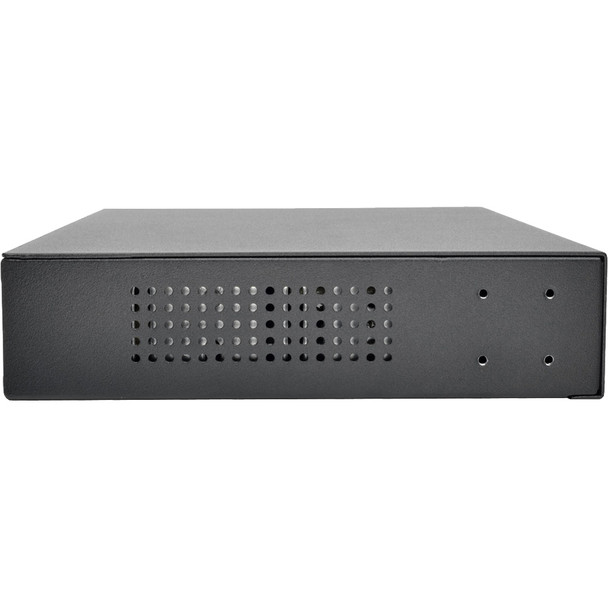

The heavy-duty metal housing mounts into 1U of an EIA-standard 19-inch rack using the included brackets and user-supplied hardware. Or attach the included rubber feet to the bottom of the unit for installation on a flat desktop surface. The five-foot input cord with NEMA 5-15P plug connects to a protected UPS, generator or mains input AC source.

Features

Enterprise Managed Network Switch

• 8 twisted-pair RJ45 Gigabit Ethernet ports
• Auto-negotiable 10/100/1000 Mbps
• Automatic MDI/MDIX cross-over detection
• 20 Gbps switching capacity (2 Gbps per port with full duplex)
• Easy-to-read LEDs indicate connection and activity status for each port
• Supports 9k jumbo frames
• Supports MAC address auto-learning and auto-aging up to 8,000 addresses
• Advanced Enterprise-level and L2 management features

140W Total PoE+ Budget

• Each RJ45 port can be configured to supply PoE+ to connected devices, such as VoIP phones and security cameras
• 30W maximum per port
• Total PoE power split into 2 port groups, each 70W max

Built-In Web-Smart Management Software

• Monitors and controls connected equipment via simple Web interface
• VLAN, trunking, VPN, port monitoring and other features improve network efficiency and performance

Dual Dedicated Mini-GBIC SFP Ports

• Connect to Mini-GBIC SFP modules for uplinking to other switches via optical fiber or copper
• LEDs indicate interface traffic

Compliant with Energy Efficient Ethernet standards

• Automatically shifts unused ports to low power state without interrupting network connection
• Meets IEEE 802.3ab, 802.3i, 802.3u, 802.3x, 802.3, 802.1q, 802.1d, 802.1w and 802.3ad standards

Versatile Installation Options

• Fanless metal housing mounts in 1U of EIA-standard 19 in. racks
• Supports desktop installation using included rubber feet on flat surface
• 5 ft. power cord with NEMA 5-15P plug connects to compatible AC power source

• NGS8C2POE 8-Port Gigabit L2 Web-Smart Managed PoE+ Network Switch
• Detachable AC Power Cord w/NEMA 5-15P plug, 5 ft.
• 2 x Rack-mounting Brackets
• 8 x Screws
• 4 x Rubber Feet
• Owner's Manual
