Description

This item is brand-new, factory sealed.

Allows you to extend a 1920 x 1440 (60Hz) video and audio signal up to 500 ft., or a 1024 x 768 (60Hz) video and audio signal up to 1,000 ft., when using 24Awg, Solid Wire Cat5e/6 cable. The range and number of monitors/speakers can be further expanded by adding repeater units. Connect up to 3 repeaters, with the receiver at the end of the chain, for a total of 4 sets of monitors and speakers. A 1920 x 1440 (60Hz) Video and Audio signal can be extended up to 500 ft. from the first repeater in the chain to the last receiver. A 1024 x 768 (60Hz) Video and Audio signal can be extended up to 1,000 ft. from the first repeater in the chain to the last receiver. For optimal image quality between 500 and 1,000 ft., use a Zero-Skew cable. The transmitter unit features functionality that allows for the EDID information from a connected display to be copied and sent to the connected computer, providing optimal compatibility. The remote (Receiver) unit features built-in Equalization and Gain controls to adjust the video image. Cable Type: A/V Extender; Connector/Port/Interface: 3.5mm (Female); HD15 (Female); RJ45 (Female); For Device Type: Digital Signage; Jacket Color: Black.

Allows you to extend a video and audio signal up to 500ft or 1000ft when using a 24Awg Cat5e/6 cable.

EDID copy feature ensures optimal display compatibility.

The range and number of monitors/speakers can be further expanded.

The remote (Receiver) unit features built-in Equalization and Gain controls to adjust the video image.

Ideal for digital signage situations, such as retail, schools, churches, etc.

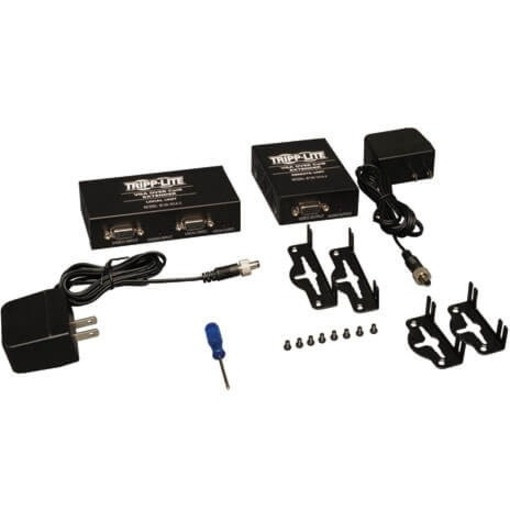

Local Transmitter; Remote Receiver; Mini Screwdriver; Mounting Hardware Kit; External Power Supply; Owner's Manual

Global Product Type:Cables-VGA, SVGA & XGA Cables

Global Product Type:Cables-VGA, SVGA & XGA Cables

Cable Type:A/V Extender

Connector/Port/Interface:3.5mm (Female)

Connector/Port/Interface:HD15 (Female)

Connector/Port/Interface:RJ45 (Female)

For Device Type:Digital Signage

Jacket Color:Black

OEM/Compatible:OEM

Package Includes:Local Transmitter

Package Includes:Remote Receiver

Package Includes:Mini Screwdriver

Package Includes:Mounting Hardware Kit

Package Includes:External Power Supply

Package Includes:Owner's Manual

Compliance Standards:TAA Compliant

Pre-Consumer Recycled Content Percent:0%

Post-Consumer Recycled Content Percent:0%

Total Recycled Content Percent:0%

Features

Package Contents:

Local (Transmitter) Unit
Remote (Receiver) Unit
Mini-Screwdriver for EQ/Gain Adjustment
2 x Mounting Hardware Kits
2 x External Power Supply (Input: 100-240V, 50/60Hz, 0.5A Output: 5V, 2A)
Owner's Manual

Certifications & Standards:
TAA

TAA Compliant:
Yes

Environmentally Friendly:
Yes

Environmental Compliance:
Restriction of Hazardous Substances (RoHS)

Country of Origin:
Taiwan

Specs

Power Description
Input Voltage	110 V AC 220 V AC
Physical Characteristics
Form Factor	Wall Mountable Rack-mountable Pole-mountable
Product Color	Black
Color Family	Black
Warranty
Limited Warranty	1 Year
Interfaces/Ports
Number of VGA Inputs	1
VGA In	Yes
Network (RJ-45)	Yes
Number of VGA Outputs	2
VGA Out	Yes
Number of Network (RJ-45) Ports	2
Video
Maximum Video Resolution	1920 x 1440
General Information
Brand Name	Tripp Lite series
Manufacturer Website Address	http://www.eaton.com
Marketing Information	Tripp Lite's B130-101A-2 allows you to extend a 1920 x 1440 (60Hz) video and audio signal up to 500 ft., or a 1024 x 768 (60Hz) video and audio signal up to 1,000 ft., when using 24Awg, Solid Wire Cat5e/6 cable, such as Tripp Lite's N022-01K-GY (Cat5) and N222-01K-GY (Cat6). The range and number of monitors/speakers can be further expanded by adding B132-110A repeater units. Connect up to 3 repeaters, with the B130-101A-2 receiver at the end of the chain, for a total of 4 sets of monitors and speakers. A 1920 x 1440 (60Hz) Video and Audio signal can be extended up to 500 ft. from the first repeater in the chain to the last receiver. A 1024 x 768 (60Hz) Video and Audio signal can be extended up to 1,000 ft. from the first repeater in the chain to the last receiver. For optimal image quality between 500 and 1,000 ft., use Zero-Skew cable, such as Tripp Lite P524-01K. The transmitter unit features functionality that allows for the EDID information from a connected display to be copied and sent to the connected computer, providing optimal compatibility. The remote (Receiver) unit features built-in Equalization and Gain controls to adjust the video image. Includes mounting hardware for both local and remote units, allowing them to be wallmounted, rackmounted or pole mounted. Ideal for digital signage situations, such as retail, schools, churches, etc. More from the Manufacturer
Product Type	Video Extender Transmitter/Receiver
Product Name	VGA + Audio over Cat5 Extender Kit (Transmitter + Receiver)
Manufacturer	Eaton Corporation
Manufacturer Part Number	B130-101A-2
Product Model	B130-101A-2
Media & Performance
Twisted Pair Cable Standard	Category 6
Media Type Supported	Twisted Pair
Technical Information
Maximum Operating Distance	1000 ft
Number of Input Devices Supported	1
Connectivity Technology	Wired
Number of Output Devices Supported	2
