Tripp Lite by Eaton SmartOnline 208/230V 1000VA 900W Double-Conversion UPS - 6 Outlets, Extended Run, Card Slot, LCD, USB, DB9, 2U (suint1000lcd2u)

(No reviews yet) Write a Review
SKU:
19844986
MPN:
suint1000lcd2u
Availability:
Usually ships in 2-3 business days. In stock at our CA, GA, IL warehouses.
Shipping:
$263.16 (Fixed Shipping Cost)
Stock Update:
02/10/2026 03:46:10 AM PST
  • Main
  • Rear

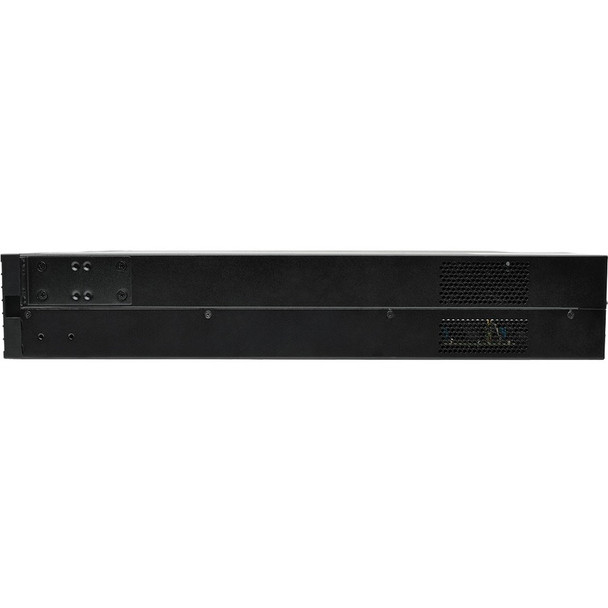

  • Left
  • Front
  • Alternate-Image2
  • Alternate-Image1
$1,078.30
Stock Update:
02/10/2026 03:46:10 AM PST

Description



This item is brand-new, factory sealed.

The SUINT1000LCD2U SmartOnline® 208/230V 1kVA 900W On-Line Double-Conversion UPS provides battery backup and AC power protection against blackouts, brownouts, power surges and line noise that can damage electronics or destroy data. It continuously regulates AC output within 2% of the selected nominal output voltage with zero transfer time from online to battery mode.

Operating with a high 93% line mode efficiency, the SUINT1000LCD2U saves you money by meeting strict EPA guidelines. Featuring six C13 outlets (four of them in two switchable two-outlet load banks) and a C14 input, the SUINT1000LCD2U has an internal battery that provides 12.3 minutes of support at half load and 4.7 minutes at full load. Adding external battery packs, such as BP24V36-2US (sold separately), provides extended runtime.

Managing the SUINT1000LCD2U is simplified through the interactive front-panel LCD interface, which displays operating conditions and diagnostic data, such as load and battery levels. You can set power strategies to reflect your protection priorities, whether it's precise power quality for sensitive systems or the highest possible electrical efficiency.

EMI/RFI noise filtering improves your equipment's performance and prevents damage. A 627-joule surge suppression rating protects your equipment from harmful power surges. Adding an optional Tripp Lite network management card, such as WEBCARDLX and SNMPWEBCARD, permits remote management of the UPS, including reboots and activity logs.

Features

Package Contents:
  • 1000VA 900W 208/230V Double-Conversion UPS
  • USB cable
  • DB9 cable
  • (2) IEC 10A 6ft. output cables
  • Rack-mounting hardware
  • Tower support stands
  • Safety instructions
  • Quick start guide

    •

    Certifications & Standards:
  • CAN/CSA-C22.2 No. 107.3 (Canada)
  • NOM (Mexico)
  • UL 1778
  • cTUVus
  • CE (Europe)

    •

    Energy Star:
    Yes



    Environmental Compliance:
    Restriction of Hazardous Substances (RoHS)



    Country of Origin:
    Philippines



    Specs

    Power Description
    Load Capacity (Watt)900 W
    Input Frequency
    • 40 Hz
    • 70 Hz
    Output Power Factor0.9
    Surge Energy Rating296 J
    Input Power Factor0.99
    Input Voltage
    • 200 V AC
    • 208 V AC
    • 220 V AC
    • 230 V AC
    • 240 V AC
    Output Voltage
    • 200 V AC
    • 208 V AC
    • 220 V AC
    • 230 V AC
    • 240 V AC
    Load Capacity (VA)1000 VA
    Input Current6 A
    Waveform TypePure Sine Wave
    Output Frequency
    • 50 Hz
    • 60 Hz
    Physical Characteristics
    Form FactorRack/Tower
    Weight (Approximate)36.38 lb
    Height3.4"
    Width17.3"
    Depth17.7"
    Rack Height2U
    Warranty
    Directly Connected Equipment Guarantee$250000
    Additional Warranty Information<li>5-year depot exchange plan: TL9SW5Y-1500UC</li><li>Expedited parts coverage for 5 years</li><li>Parts, electronics and UPS batteries coverage</li><li>Next business day shipping</li><li>Technical support</li><li>5-year onsite plan: TLWFLN75XX-2509UC</li><li>Onsite parts and labor coverage for 5 years</li><li>Parts, electronics and UPS batteries coverage</li><li>24x7 onsite labor coverage, next-day response</li><li>Next-day shipping</li><li>Technical support</li>
    Limited Warranty2 Year
    Controls/Indicators
    Status Indicators4 x Status-indicating LEDs
    Battery Information
    Backup/Run Time (Full Load)7.30 Minute
    Replaceable BatteryYes
    Battery ChemistryLead Acid
    Hot SwappableYes
    Battery Size48V
    Backup/Run Time (Half Load)17.90 Minute
    Typical Battery Recharge Time3 Hour
    Battery CharacteristicsValve-regulated
    Display & Graphics
    DisplayLCD
    General Information
    Brand NameTripp Lite series
    Manufacturer Website Addresshttp://www.eaton.com
    Marketing InformationDouble-Conversion UPS Protects Equipment Against Damage, Downtime and Data Loss
    This on-line double-conversion UPS system maintains perfect output by converting AC input to DC, then reconverting UPS output to fully regulated sine wave AC. Constant on-line operation completely isolates sensitive equipment from every power problem on the AC line. The SmartOnline® SUINT1000LCD2U provides the highest level of power protection and battery backup for education, healthcare, military, government and other mission-critical IT applications where space is limited, but premium power reliability is essential.
    Reliable, Expandable Battery Backup Keeps You Operational Through Power Outages
    The field-replaceable, hot-swappable VRLA battery modules allow you to work through short power failures and give you enough time to safely save files and shut down your system in case of a prolonged blackout. Zero transfer time between on-line and battery modes maintains continuous operation of connected equipment without interruption or rebooting. Extra runtime is available by connecting up to four optional extended battery modules (BP48RT, sold separately).
    Optional LX Platform Network Management Card Allows Remote Access 24/7
    The WEBCARDLXE network interface (sold separately) enables full remote configuration and management, including load shedding, reboots of connected equipment and safe shutdowns. The IP-based Auto Probe feature ensures continuous network uptime by communicating with other network devices, detecting lost connectivity and automatically rebooting IT equipment. Optional EnviroSense2 modules (E2MT, E2MTDO and E2MTHDI, all sold separately) provide a variety of environmental monitoring and control options.
    C13 Outlets Protect Your Connected Components
    Eight C13 outlets provide connected equipment with pure sine wave AC output and allow you to manage power consumption down to the outlet group level. Power provided by these outlets is filtered to protect connected equipment against damaging surges and line noise. Four outlets are grouped into two load banks that let you shed non-critical loads to extend runtime for critical loads.
    Premium Protection from EMI/RFI Line Noise Helps Your Equipment Perform Better
    This UPS system filters out disruptive electromagnetic and radio frequency interference that can inflict hardware damage or data loss. This EMI/RFI filtering also helps your connected components perform better and last longer.
    ENERGY STAR-Certified to Help You Save Money and Protect the Environment
    By meeting strict U.S. Department of Energy and U.S. Environmental Protection Agency requirements, this ENERGY STAR 2.0 UPS system provides high operational efficiency to signal a reduction in BTU emissions, save on utility and cooling costs and help protect the environment.

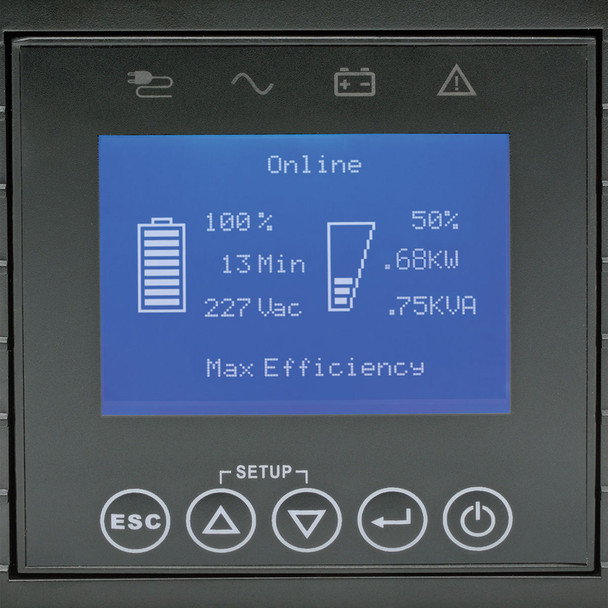

    Clear LCD Interface Keeps You Informed at a Glance
    The menu-driven front-panel LCD provides detailed alarms and notifications to help diagnose any issues. It provides system status, event logs, battery and power module status, usage analytics, serial number, firmware update info and more. Audible alarms can be disabled through the front menu when the UPS goes to battery power. The LCD rotates to accommodate both rack-mount and tower installation.
    Product TypeDouble Conversion Online UPS
    Product NameSUINT1000LCD2U SmartOnline 1kVA 900W On-Line Double-Conversion UPS
    ManufacturerEaton Corporation
    Manufacturer Part NumberSUINT1000LCD2U
    Product ModelSUINT1000LCD2U
    Product LineSmartOnline
    Technical Information
    Receptacle TypeIEC 60320 C13
    Receptacle Detail8 x IEC 60320 C13
    Energy SavingHigh efficiency economy mode operation; Individually controllable load banks
    PhaseSingle Phase
    Plug/Connector TypeIEC 60320 C14
    Cord Length6 ft
    EMI/RFI Noise FilterYes
    Application/Usage
    • Mission Critical Equipment
    • Education
    • Healthcare
    • Military
    • Government
    Transfer Time0 ns
    Number of Load Management Outlets2
    Management
    Network Management
    • Contact Closure
    • RS-232
    • SNMP/Web
    Alarm
    • UPS StartUp
    • Power Failure
    • Low Battery
    • Overload
    • UPS Fault
    • Remote Shutdown
    Interfaces/Ports
    USBYes
    Environmental Conditions
    Thermal Dissipation128.37 W
    Maximum Storage Elevation10000 ft
    Sound Emission (A-Weighted)40 dB(A)
    Maximum Operating Temperature104&deg;F (40&deg;C)
    Minimum Operating Temperature32&deg;F (0&deg;C)
    Storage Temperature-13&deg;F (-25&deg;C) - 131&deg;F (55&deg;C)
