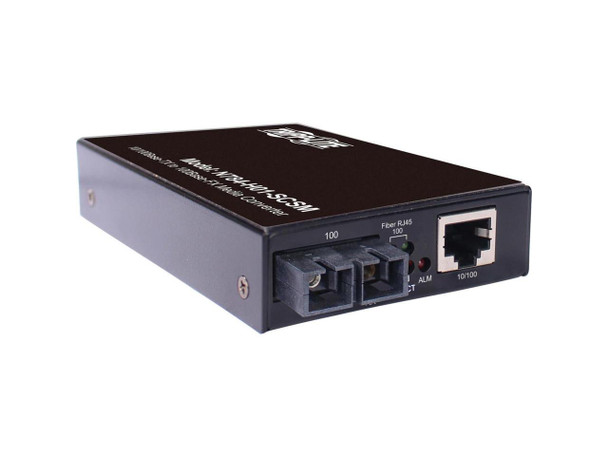

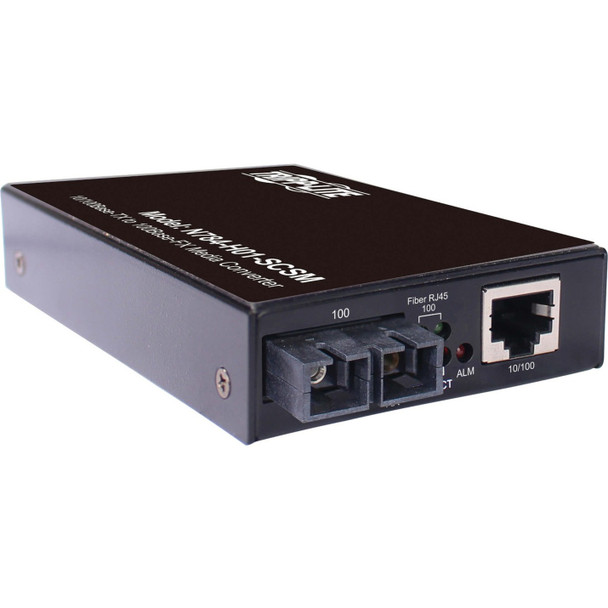

Tripp Lite Hardened Copper to Fiber Media Converter RJ45/SC SMF 10/100Mbps (n784-h01-scsm)

This item is brand-new, factory sealed.

Tripp Lite Network Copper RJ45 Ethernet to Fiber SC Duplex Singlemode Extender Converter, 1310nm Wavelength, Hardened Housing, 10/100 Mbps, Extend 18.6 Miles / 30 Km, 2-Year Warranty (N784-H01-SCSM)

• EXTENDS NETWORK CONNECTION OVER FIBER OPTIC CABLE: Extends a 10/100 Mbps Ethernet network connection over SC duplex singlemode fiber optic cable up to 30 kilometers. Automatic MDI/MDI-X configuration connects devices without crossover cabling.
• MONITOR YOUR INSTALLATION: LEDs indicate Ethernet connection and various statuses, including data transfer speed. Local Loop Back (LLB) and Remote Loop Back (RLB) functions ensure copper and fiber cables have been correctly installed.
• BUILT TO WITHSTAND A VARIETY OF HAZARDS: Operating temperature range of -10 to 60C or 14 to 140F. Protected from electrostatic discharge (ESD), radio frequency interference (RFI) and power surges. Wall & DIN mounting hardware included.
• COMPLIANT PRODUCTS FOR GOVERNMENT BUSINESSES: Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases.
• RELIABLE PRODUCT FULLY BACKED AND SUPPORTED: This product is covered by a 2-Year Limited Warranty and is supported by Tripp Lite's Chicago-based expert technical support team over phone and email.

• Brand: Tripp Lite
• Item model number: N784-H01-SCSM
• Item Weight: 1.32 pounds
• Product Dimensions: 7.2 x 9.17 x 2.44 inches
• Item Dimensions LxWxH: 7.2 x 9.17 x 2.44 inches
• Manufacturer: TRIPP LITE

EXTENDS A NETWORK CONNECTION UP TO 30 KM OVER SC SINGLEMODE FIBER OPTIC CABLE: This network media converter converts a copper Ethernet signal to a singlemode fiber optic signal and extends it to a second network device up to 30 kilometers (18.6 miles) away. Because copper Cat5e/6 cables are limited to only 100 meters, it is more effective to couple the N784-H01-SCSM with singlemode fiber cable to reach hubs, switches and other 10/100Base-TX/FX network devices located farther away. Auto-negotiation and automatic MDI/MDI-X configuration seamlessly connect devices without crossover cabling. MONITOR YOUR INSTALLATION WITH LINK FAULT SIGNALING AND LOOP BACK FUNCTIONS: Determine the health of your network connection via the Link Fault Signaling (LFS) and Loop Back functions. The LFS LED indicates when a copper or fiber cable has been severed or another cause of disruption in service has occurred. The Local Loop Back (LLB) and Remote Loop Back (RLB) functions ensure copper and fiber cables have been correctly installed. Use the DIP switches to control each function or turn them on or off. LEDS INDICATE INSTALLATION PERFORMANCE AND DIAGNOSTIC FUNCTIONS: Easy-to-read LEDs on the side of the unit indicate essential status information, including network speed and connection, LFS diagnostics and unit power. PROTECTIVE METAL HOUSING BUILT TO WITHSTAND A VARIETY OF HAZARDS: The hardened aluminum case is designed to operate in extreme temperatures ranging from -10 to 60 degrees Celsius (14 to 140 degrees Fahrenheit). It is protected from electrostatic discharge (ESD), radio frequency interference (RFI) and power surges. Hardware is included for wall or DIN mounting. WORKS IN TANDEM WITH TRIPP LITE'S N785-CH12 CHASSIS: House and power up to 12 Tripp Lite media converters, including the N784-H01-SCMM, using the N785-CH12 12-port chassis (sold separately) to create an organized installation. TAA-COMPLIANT FOR GSA SCHEDULE PURCHASES: The N784-H01-SCSM is compliant with the Federal Trade Agreements Act (TAA), which makes it eligible for GSA (General Services Administration) Schedule and other federal procurement contracts.

Package Contents:

• N784-H01-SCSM Transceiver/Media Converter
• L-shaped Bracket
• Rubber Foot
• SC Connector Cap
• External Power Supply with NEMA 1-15P Plug (Input: 100-240VAC, 50/60 Hz, 0.5A; Output: 12VDC 1.5A)
• DIN Rail Kit
• Wall-mounting Hardware
• Quick Start Guide
