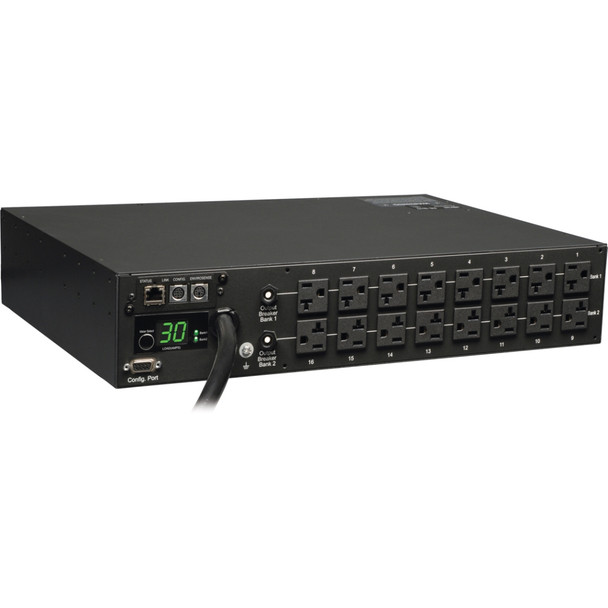

Tripp Lite Monitored PDUMNH30 16-Outlets PDU - 16 x NEMA 5-15/20R - 2U Rack-mountable
(No reviews yet)
Write a Review
- SKU:
- 18133337
- MPN:
- pdumnh30
- Availability:
- Out of stock
- Stock Update:
- 12/08/2025 11:24:36 AM PST
- Stock Update:
- 12/08/2025 11:24:36 AM PST
Description
This item is brand-new, factory sealed.
Pdumnh30 horizontal 2u monitored rack pdu supports 30a maximum capacity at 120v (agency de-rated to 24a / 2.88kw continuous). Includes 10ft./3m attached line cord with l5-30p input plug and 16 5-15/20r outlets. Outlets are arranged in two separately breakered 8 outlet load banks. Visual and remote current monitoring tracks total output load in amps plus output current levels for each output load bank. Supports 2u horizontal rackmount installation with included mounting brackets. Included cord retention plates keep vital network equipment plugged in and continuously powered. Monitored pdu systems support real-time remote monitoring via secure web snmp or telnet interface and custom notification of user-specified remote conditions via email and snmp trap. Pdu power consumption in amps is displayed locally via front panel lighted digital display and can be monitored remotely to warn of potential overloads before critical it mains breakers become overloaded. Advanced configurations support in-rack environmental monitoring with optional envirosense temperature / humidity probe and rack access notification for up to 4 srswitch or user supplied contact-closure sensors. Supports real-time monitoring of all reported functions with support for user-specified alarm and notification thresholds. Fully compatible with poweralert network management system software available via free download from www.Tripplite.Com key features 120v 30a monitored power distribution unit (pdu) with built-in web/network interface in 2u rackmount form factor l5-30p 30a 120v input plug and 16 nema 5-15/20r output receptacles 30a maximum capacity (agency derated to 24a continuous) outlets are arranged in two separately breakered 8 outlet loading banks supports local current metering and network monitoring via built-in web/network monitoring and control card remote interface provides data regarding input power conditions and pdu load level via secure network or web browser interface supports notification and logging of all major power events and user specified alarm thresholds optional envirosense temperature and humidity probe enables remote monitoring of environmental conditions and the ability to report conditions from up to four srswitch or user supplied contact closure sensors dhcp/manual configuration support provides the ability to have network settings automatically assigned to the card or manually assigned via permanent ip addresses 10/100 mbps auto-sensing allows optimal communication compatibility with your current 10/100 base-t network real-time clock backup maintains the time of day and date even if the pdu is shut down and unpowered tiered access priviledges allow an administrator and a guest to log into the web browser for monitoring all pdus alert notifications via email or snmp traps give users the added advantage of having an immediate event notification protocols supported include http https poweralert network management system smtp snmpv1 snmpv2 telnet ftp dhcp bootp ntp remote monitoring console and front panel ammeter displays bank 1 bank 2 and total pdu power consumption (user selected via push-button switch) included cord retention brackets keep vital network equipment plugged in and continuously powered 2u rackmount installation typical applications ideal for network configurations requiring a monitored pdu system package includes rackmount pdu plug retention plates rack mounting brackets owner's manualPackage Contents:
- Monitored PDUMNH30 16-Outlets PDU
- Plug Retention Plates
- Rack Mounting Brackets
- Owner's Manual
Features
Package Contents:
Yes
Yes
Restriction of Hazardous Substances (RoHS)
Taiwan
- Monitored PDUMNH30 16-Outlets PDU
- Plug Retention Plates
- Rack Mounting Brackets
- Owner's Manual
TAA Compliant:
Yes
Environmentally Friendly:
Yes
Environmental Compliance:
Restriction of Hazardous Substances (RoHS)
Country of Origin:
Taiwan
Specs
| Power Description | |
| Input Voltage | 120 V AC |
| Output Voltage | 120 V AC |
| Physical Characteristics | |
| Weight (Approximate) | 13.80 lb |
| Mount Type | Rack-mountable |
| Height | 3.5" |
| Width | 17.5" |
| Rack Height | 2U |
| Depth | 12.5" |
| Warranty | |
| Limited Warranty | 2 Year |
| General Information | |
| Brand Name | Eaton |
| Manufacturer Website Address | http://www.eaton.com |
| Marketing Information | 2.9kW Single-Phase Monitored PDU with LX Platform Interface Tripp Lite's PDUMNH30 distributes and monitors single-phase 120V power to connected rack equipment in data centers, network closets, server rooms, computer rooms and other applications requiring network-grade power. Its built-in network interface allows real-time remote monitoring of voltage, frequency and load levels to prevent overloads that cause expensive downtime. It features 16 NEMA 5-15/20R outlets and a 10-foot (3-meter) power cord with NEMA L5-30P plug, which connects the PDU to a compatible AC power source, generator or protected UPS system. Built-In LX Platform Network Management Interface Card The built-in Java-free HTML5-based LX Platform network interface enables full remote access for PDU status monitoring and email notifications via secure web browser, SNMP, telnet or SSH. It supports 10/100 Mbps auto-sensing for optimum communication with an Ethernet network. Optional EnviroSense2 modules (sold separately) provide a variety of environmental monitoring capabilities, including temperature and humidity conditions. Protocols supported include IPv4, IPv6, HTTP, HTTPS, SMTP, SNMPv1, SNMPv2, SNMPv3, telnet, SSH, FTP, DHCP and NTP. DHCP/Manual configuration lets you assign network settings to the card automatically, reducing the need for manual configuration. Automated alerts help prevent accidental overloads, power loss and downtime. Digital Load Meter The easy-to-read two-character digital LED meter displays output load levels in three segments: breakered bank 1, breakered bank 2 and total PDU output. Monitoring the individual breakered load banks helps ensure proper balance across the two output load banks. Monitoring total PDU output helps prevent PDU and supply circuit overloads that cause downtime. Optimized for Demanding Applications The all-metal housing is designed to endure in busy, demanding IT and industrial environments. The included cord retention brackets for the outlets help prevent connected equipment from becoming accidentally disconnected. Real-time clock backup maintains the time of day and date, even if the PDU is shut down and unpowered. Versatile Installation Options This server rack PDU features a 2U horizontal rack-mount form factor. Mounting flanges support installation in 2- and 4-post racks, with additional support for wall-mount and under-counter installation. Mounting ears are reversible for front- or rear-facing rack-mount installation. TAA-Compliant for GSA Schedule Purchases The PDUMNH30 monitored power distribution unit is compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases. 2-Year Warranty and Environmentally Responsible Design This monitored PDU comes with a 2-year limited warranty. It's manufactured in compliance with strict RoHS specifications, reflecting Tripp Lite's commitment to environmental responsibility. More from the Manufacturer |
| Product Type | PDU |
| Product Name | Monitored PDUMNH30 16-Outlets PDU |
| Manufacturer | Eaton Corporation |
| Manufacturer Part Number | PDUMNH30 |
| Product Model | PDUMNH30 |
| Product Series | Monitored |
| Technical Information | |
| Receptacle Type | NEMA 5-15/20R |
| Receptacle Detail | 16 x NEMA 5-15/20R |
| Plug/Connector Type | NEMA L5-30P |
| PDU Type | Monitored |
| Protection Type | Overload Protection |
| Management | |
| Management | <p><b>Protocols:</b></p><ul><li>HTTP</li><li>HTTPS</li><li>SMTP</li><li>SNMPv1</li><li>SNMPv2</li><li>Telnet</li><li>FTP</li><li>DHCP</li><li>BOOTP</li><li>NTP</li></ul> |
