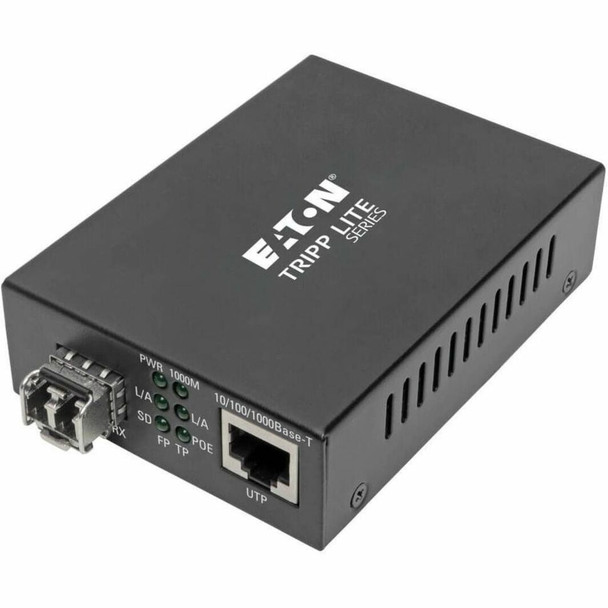

Eaton Tripp Lite Series Gigabit Multimode Fiber to Ethernet Media Converter, PoE+ - International Power Cables, 10/100/1000 LC, 850 nm, 550 m [1,804 ft.] (n785-int-plcmm1)
(No reviews yet)
Write a Review
- SKU:
- 20891725
- MPN:
- n785-int-plcmm1
- Availability:
- Out of stock
- Stock Update:
- 01/30/2026 04:47:31 PM PST
- Stock Update:
- 01/30/2026 04:47:31 PM PST
Frequently bought together:
Description
This item is brand-new, factory sealed.
Extends your copper Gigabit Ethernet network connection up to 550 m over LC fiber optic cable with the addition of PoE.Features | Extends Power and Data to a PoE+ Device up to 550 m via LC Multimode Fiber Cable
This economical unit converts a multimode fiber optic signal to a copper Ethernet signal that extends both power (48 VDC) and 10/100/1000 Mbps Gigabit Ethernet up to 550 meters (1,804 feet) using Cat5e/6 cabling. The N785-INT-PLCMM1 is ideal for providing power and data to PoE and PoE+ devices, such as security cameras, VoIP telephones, point-of-sale kiosks and access control devices.
Supports Power over Ethernet to Save You Money and Give You More Installation Choices
PoE saves you the expense and effort of purchasing, connecting and installing individual power supplies for each device. It also helps you install PoE devices in areas far away from AC outlets, such as poles or ceilings.
Supports Auto-Sensing of Network Speed and Other Advanced Functions

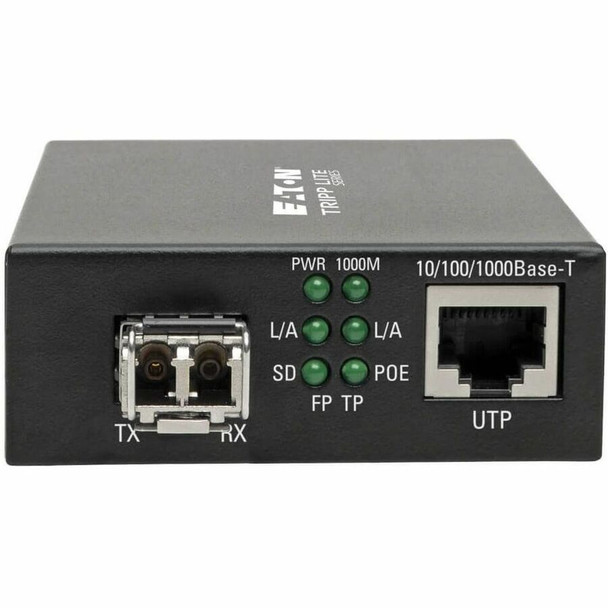

Monitoring and controlling your network nodes is easy with the N785-INT-PLCMM1's advanced features, such as automatic network speed sensing, full/half-duplex auto-detection and automatic MDI/MDIX configuration. Six LEDs indicate the converter's power, PoE, Ethernet network and fiber link statuses at a glance. Link fault pass through (LFP) monitors both the LC and RJ45 ports to ensure link status remains active.
Completely Plug-and-Play with No Additional Software Required for Connection
The compact metal converter is easy to install and set up with no software or drivers required. The included power supply comes with four international power cables (North America, Europe, United Kingdom, Australia) for connecting to an AC outlet with no computer or other signal source needed.
Package Contents:
- N785-INT-PLCMM1 Transceiver/Media Converter

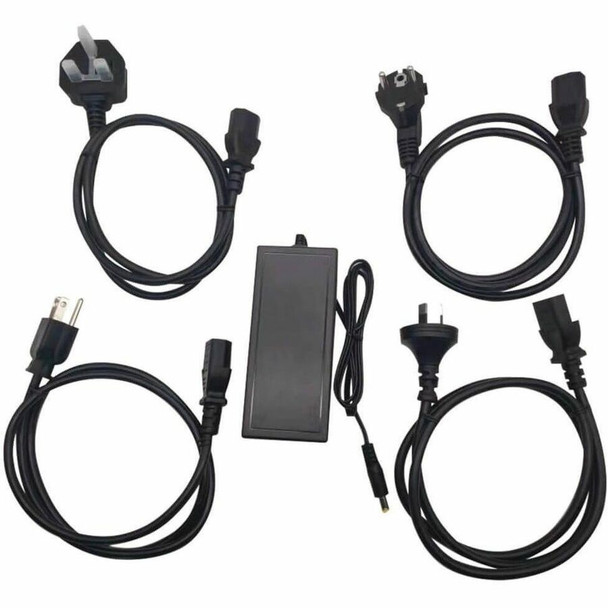

- External Power Supply (Input: 100-240V, 50/60 Hz, 1.5A; Output: 48V 1.25A)
- 4 x International Power Cables (North America, Europe, U.K., Australia)
- Owner's Manual
Features
Package Contents:
Yes
China
- N785-INT-PLCMM1 Transceiver/Media Converter
- External Power Supply (Input: 100-240V, 50/60 Hz, 1.5A; Output: 48V 1.25A)
- 4 x International Power Cables (North America, Europe, U.K., Australia)
- Owner's Manual
Environmentally Friendly:
Yes
Environmental Compliance:
Restriction of Hazardous Substances (RoHS)
Restriction of Hazardous Substances (RoHS) 3
Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
Waste Electrical and Electronic Equipment Directive (WEEE)
Country of Origin:
China
Specs
| Power Description | |
| Plug/Connector Type |
|
| Power Source | AC Adapter |
| Frequency |
|
| Physical Characteristics | |
| Form Factor |
|
| Height | 1" |
| Width | 2.8" |
| Depth | 3.7" |
| Warranty | |
| Limited Warranty | 2 Year |
| Interfaces/Ports | |
| Number of LC Ports | 1 |
| Network (RJ-45) | Yes |
| Total Number of Ports | 2 |
| LC Port Type | Duplex |
| Number of Network (RJ-45) Ports | 1 |
| General Information | |
| Brand Name | Tripp Lite series |
| Manufacturer Website Address | http://www.eaton.com |
| Marketing Information | Extends your copper Gigabit Ethernet network connection up to 550 m over LC fiber optic cable with the addition of PoE. Features | Extends Power and Data to a PoE+ Device up to 550 m via LC Multimode Fiber Cable This economical unit converts a multimode fiber optic signal to a copper Ethernet signal that extends both power (48 VDC) and 10/100/1000 Mbps Gigabit Ethernet up to 550 meters (1,804 feet) using Cat5e/6 cabling. The N785-INT-PLCMM1 is ideal for providing power and data to PoE and PoE+ devices, such as security cameras, VoIP telephones, point-of-sale kiosks and access control devices. Supports Power over Ethernet to Save You Money and Give You More Installation Choices PoE saves you the expense and effort of purchasing, connecting and installing individual power supplies for each device. It also helps you install PoE devices in areas far away from AC outlets, such as poles or ceilings. Supports Auto-Sensing of Network Speed and Other Advanced Functions Monitoring and controlling your network nodes is easy with the N785-INT-PLCMM1's advanced features, such as automatic network speed sensing, full/half-duplex auto-detection and automatic MDI/MDIX configuration. Six LEDs indicate the converter's power, PoE, Ethernet network and fiber link statuses at a glance. Link fault pass through (LFP) monitors both the LC and RJ45 ports to ensure link status remains active. Completely Plug-and-Play with No Additional Software Required for Connection The compact metal converter is easy to install and set up with no software or drivers required. The included power supply comes with four international power cables (North America, Europe, United Kingdom, Australia) for connecting to an AC outlet with no computer or other signal source needed. |
| Product Type | Transceiver/Media Converter |
| Product Name | N785-INT-PLCMM1 Transceiver/Media Converter |
| Manufacturer | Eaton Corporation |
| Manufacturer Part Number | N785-INT-PLCMM1 |
| Product Model | N785-INT-PLCMM1 |
| Media & Performance | |
| Maximum Distance Supported | 0.55 km |
| Media Type Supported |
|
| Fiber Mode Supported | Multi-mode |
| Fiber Optic Cable Wavelength | 850 nm |
| Network & Communication | |
| Ethernet Technology | Gigabit Ethernet |
| Network Technology | 10/100/1000Base-T |
Warranty Information
All Items are Brand New, Factory Sealed and come with a standard warranty. [Read our policies]
