Tripp Lite Pdu Metered 120v 20a 5-15/20r 6 Outlet L5-20p 24" Height 0urm - Vertical Rackmount (pdumv20-24)
(No reviews yet)
Write a Review
- SKU:
- 18060366
- MPN:
- pdumv20-24
- Availability:
- Out of stock
- Stock Update:
- 11/04/2024 05:24:10 PM PST
- Stock Update:
- 11/04/2024 05:24:10 PM PST
Description
This item is brand-new, factory sealed.

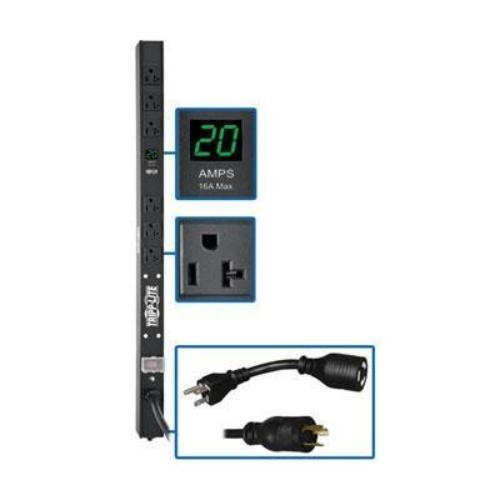

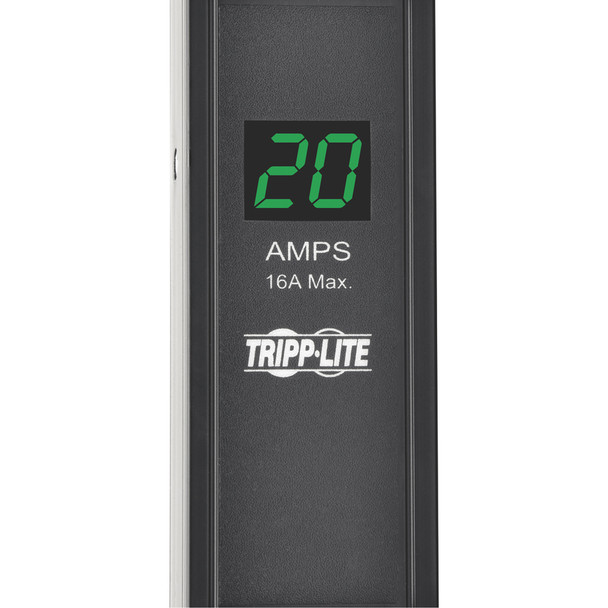

Tripp Lite single phase Metered PDU / Power Distribution Units offer real-time local reporting of load level in amps via built-in digital display. Enables visual monitoring of PDU load levels to prevent overloads as additional equipment is added. Offers reliable rackmount multi-outlet power distribution from any protected UPS, generator or mains input power source. High quality design includes rugged all-metal housing and secure rackmount installation with included mounting accessories.Package Contents:

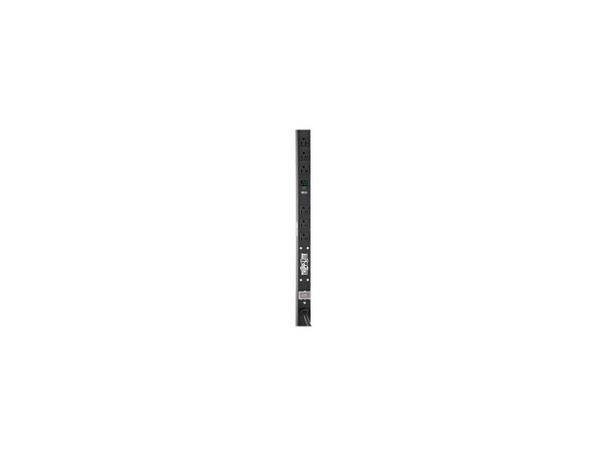

- PDUMV20-24 Metered Vertical PDU

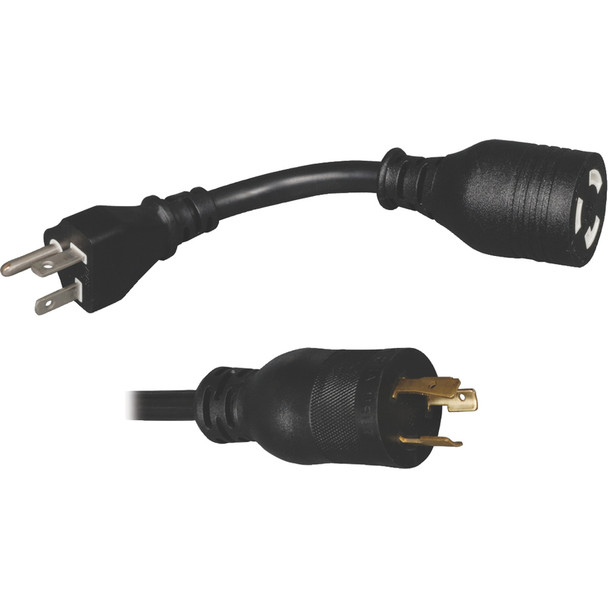

- 1 x L5-20P to 5-20P Plug Adapter
- Mounting Hardware
- Spare Mounting Buttons
- Instruction Manual with Warranty Information
Features
Package Contents:
Yes
Restriction of Hazardous Substances (RoHS)
China
- PDUMV20-24 Metered Vertical PDU
- 1 x L5-20P to 5-20P Plug Adapter
- Mounting Hardware
- Spare Mounting Buttons
- Instruction Manual with Warranty Information
Certifications & Standards:
- Tested to UL60950-1 (USA)
- UL/CSA60950-1 (Canada)
- NOM (Mexico)
- FCC Class A (Emissions)
Environmentally Friendly:
Yes
Environmental Compliance:
Restriction of Hazardous Substances (RoHS)
Country of Origin:
China
Specs
| Power Description | |
| Power Rating (Watt) | 2000 W |
| Input Voltage | 120 V AC |
| Output Voltage | 120 V AC |
| Input Current | 20 A |
| Physical Characteristics | |
| Weight (Approximate) | 3.20 lb |
| Cord Length | 15 ft |
| Mount Type | Rack-mountable |
| Height | 24" |
| Mounting Orientation | Vertical |
| Width | 1.8" |
| Rack Height | 0U |
| Depth | 1.3" |
| Warranty | |
| Limited Warranty | 2 Year |
| General Information | |
| Brand Name | Tripp Lite series |
| Manufacturer Website Address | http://www.eaton.com |
| Marketing Information | Tripp Lite single phase Metered PDU / Power Distribution Units offer real-time local reporting of load level in amps via built-in digital display. Enables visual monitoring of PDU load levels to prevent overloads as additional equipment is added. Offers reliable rackmount multi-outlet power distribution from any protected UPS, generator or mains input power source. High quality design includes rugged all-metal housing and secure rackmount installation with included mounting accessories. More from the Manufacturer |
| Product Type | PDU |
| Product Name | PDUMV20-24 Metered Vertical PDU |
| Manufacturer | Eaton Corporation |
| Manufacturer Part Number | PDUMV20-24 |
| Product Model | PDUMV20-24 |
| Product Line | Metered |
| Technical Information | |

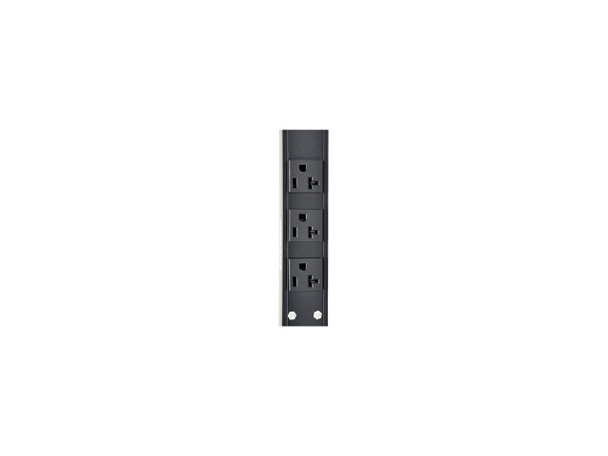

| Receptacle Type | NEMA 5-15/20R |
| Receptacle Detail | 6 x NEMA 5-15/20R |
| Plug/Connector Type | NEMA L5-20P |
| Protection Type | Overload Protection |
Warranty Information
All Items are Brand New, Factory Sealed and come with a standard warranty. [Read our policies]
