Tripp Lite PDU Metered ATS 2/2.4KW 200/240V 10 C13 2 C14 3.6M Cords 1URM (pdumh15hvat)
(No reviews yet)
Write a Review
- SKU:
- 18210908
- MPN:
- pdumh15hvat
- Availability:
- Usually ships the same or next business day. In stock at our NJ, TX warehouses.
- Shipping:
- Calculated at Checkout
- Stock Update:
- 12/09/2025 03:27:31 AM PST
- Stock Update:
- 12/09/2025 03:27:31 AM PST
Description
This item is brand-new, factory sealed.

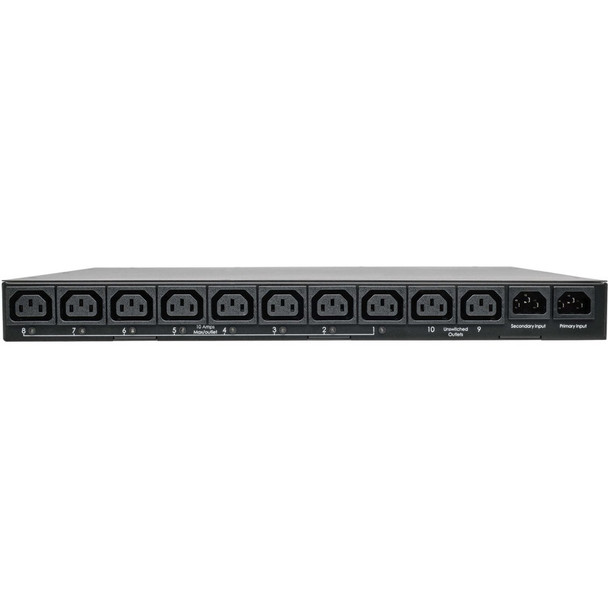

The PDUMH15HVAT 2-2.4kW Single-Phase 200-240V ATS/Metered PDU enables redundant power for network devices with non-redundant power supply configurations. Ideal for data centers and server rooms, it mounts in 1U of space in EIA-standard 19-inch racks and features 10 C13 outlets.Dual 3.6-meter input cords with IEC-320 C14 plugs connect to separate primary and secondary single-phase power sources in a nominal voltage range from 200-240V. Plug lock inserts prevent cords from accidental disconnection. The PDUMH15HVAT constantly evaluates the power quality of both input sources. Dynamic solid-state (TRIAC) automatic transfer switching allows the PDU to switch to the secondary source within 2-5 milliseconds should the primary source fail or become unstable to ensure your connected equipment operates without interruption.
Built-in slot supports the optional SNMPWEBCARD and WEBCARDLX (sold separately), which turn the PDUMH15HVAT into a switched PDU by allowing remote access to the PDU for power monitoring, configuration, outlet control and notifications via web browser, SSH, telnet or SNMP. Digital ammeter monitors total output current. LEDs display outlet on/off status and input power status on primary and secondary inputs.

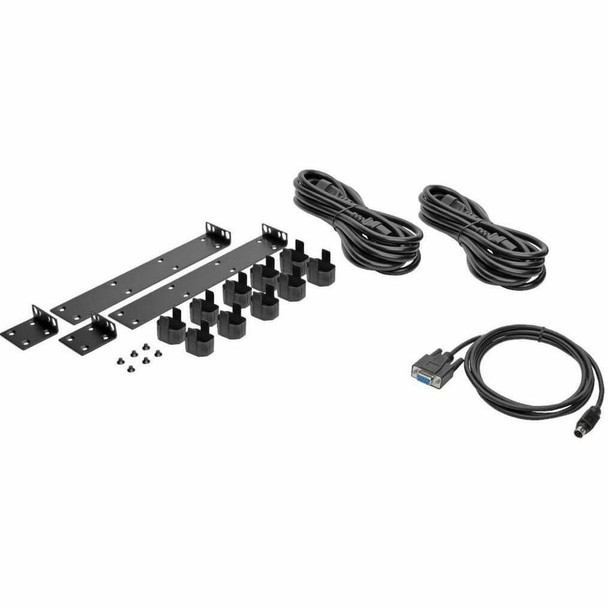

Package Contents:
- PDUMH15HVAT 10-Outlet PDU
- 10 x C14 plug lock inserts

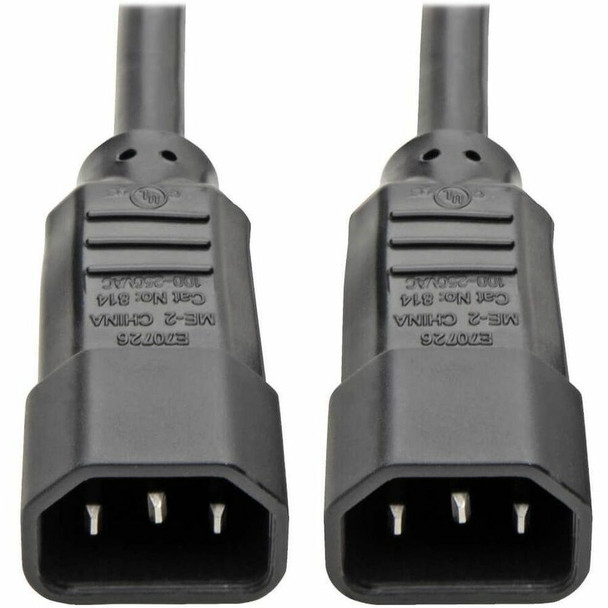

- 2 x C13 to C14 power cords, 3.6 m (11.8 ft.)
- 2 x Mounting brackets, horizontal
- 2 x Mounting brackets, vertical
- 6 x Screws
- Owner's manual
Features
Package Contents:
Yes
Yes
Restriction of Hazardous Substances (RoHS)
Taiwan
- PDUMH15HVAT 10-Outlet PDU
- 10 x C14 plug lock inserts
- 2 x C13 to C14 power cords, 3.6 m (11.8 ft.)
- 2 x Mounting brackets, horizontal
- 2 x Mounting brackets, vertical
- 6 x Screws
- Owner's manual
TAA Compliant:
Yes
Environmentally Friendly:
Yes
Environmental Compliance:
Restriction of Hazardous Substances (RoHS)
Country of Origin:
Taiwan
Specs
| Power Description | |
| Power Rating (Watt) | 2400 W |
| Input Voltage Range | 200 V AC - 240 V AC |
| Input Voltage | 230 V AC |
| Output Voltage |
|
| Input Current | 10 A |
| Physical Characteristics | |
| Weight (Approximate) | 10.32 lb |
| Mount Type | Rack-mountable |
| Height | 1.7" |
| Mounting Orientation | Horizontal |
| Width | 17.3" |
| Rack Height | 1U/2U |
| Depth | 14.4" |
| Warranty | |
| Limited Warranty | 2 Year |
| General Information | |
| Brand Name | Tripp Lite series |
| Manufacturer Website Address | http://www.eaton.com |
| Marketing Information | The PDUMH15HVAT 2-2.4kW Single-Phase 200-240V ATS/Metered PDU enables redundant power for network devices with non-redundant power supply configurations. Ideal for data centers and server rooms, it mounts in 1U of space in EIA-standard 19-inch racks and features 10 C13 outlets. Dual 3.6-meter input cords with IEC-320 C14 plugs connect to separate primary and secondary single-phase power sources in a nominal voltage range from 200-240V. Plug lock inserts prevent cords from accidental disconnection. The PDUMH15HVAT constantly evaluates the power quality of both input sources. Dynamic solid-state (TRIAC) automatic transfer switching allows the PDU to switch to the secondary source within 2-5 milliseconds should the primary source fail or become unstable to ensure your connected equipment operates without interruption. Built-in slot supports the optional SNMPWEBCARD and WEBCARDLX (sold separately), which turn the PDUMH15HVAT into a switched PDU by allowing remote access to the PDU for power monitoring, configuration, outlet control and notifications via web browser, SSH, telnet or SNMP. Digital ammeter monitors total output current. LEDs display outlet on/off status and input power status on primary and secondary inputs. More from the Manufacturer |
| Product Type | PDU |
| Product Name | PDUMH15HVAT 10-Outlet PDU |
| Manufacturer | Eaton Corporation |
| Manufacturer Part Number | PDUMH15HVAT |
| Product Model | PDUMH15HVAT |
| Packaged Quantity | 1 |
| Technical Information | |
| Plug/Connector Detail | 2 x IEC 60320 C14 |
| Receptacle Type | IEC 60320 C13 |
| Receptacle Detail | 10 x IEC 60320 C13 |
| Plug/Connector Type | IEC 60320 C14 |
| Protection Type | Overload Protection |
Warranty Information
All Items are Brand New, Factory Sealed and come with a standard warranty. [Read our policies]
View AllClose
Tripp Lite PDU Metered ATS 2/2.4KW 200/240V 10 C13 2 C14 3.6M Cords 1URM (pdumh15hvat)
$521.81
