Tripp Lite Pdu Metered Vertical 5.8kw 208/240v 8 C19 40 C13 L6-30p 0u Taa - Nema L6-30p - 8 X Iec 60320 C19, 40 X Iec 60320 C13 (pdumv30hv2)
- SKU:
- 18314194
- MPN:
- pdumv30hv2
- Availability:
- Usually ships the same or next business day. In stock at our CA, SC, TX warehouses.
- Shipping:
- Calculated at Checkout
- Stock Update:
- 12/08/2025 09:04:53 PM PST
Bulk discount rates
Below are the available bulk discount rates for each individual item when you purchase a certain amount
| Buy 2 or above | and pay only $495.77 each 495.77 |
- Stock Update:
- 12/08/2025 09:04:53 PM PST
Description
This item is brand-new, factory sealed.
The 70-inch (178-centimeter) PDUMV30HV2 30A 208/240V 5.8kW Single-Phase Metered Power Distribution Unit features 48 outlets for distributing single-phase AC power to rack-mounted equipment, including computers, routers, switches and servers.

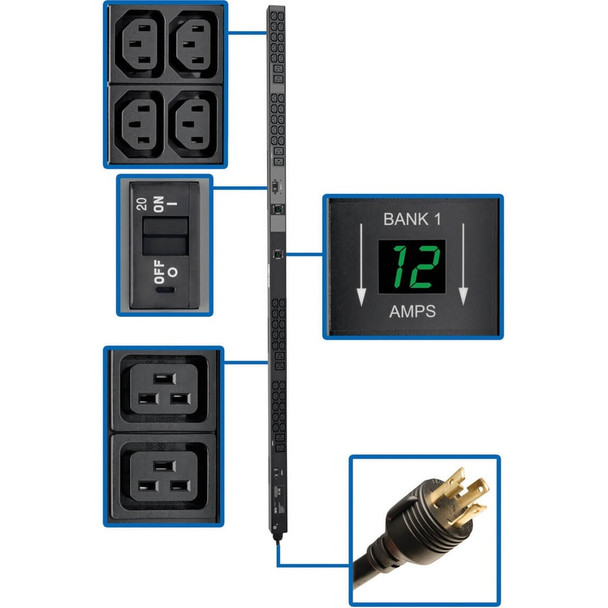

Outlets are arranged in two separate load banks, each with 24 outlets (4 C19 and 20 C13), a dedicated 20A circuit breaker and a digital meter that reports the bank's real-time output current in amps. The ammeters let you visually monitor each bank and maintain balanced loads to prevent circuit overloads and downtime due to breakers tripping. Special guards prevent the breakers from tripping accidentally. Outlets, breakers and ammeters are color-coded and labeled for easy identification.

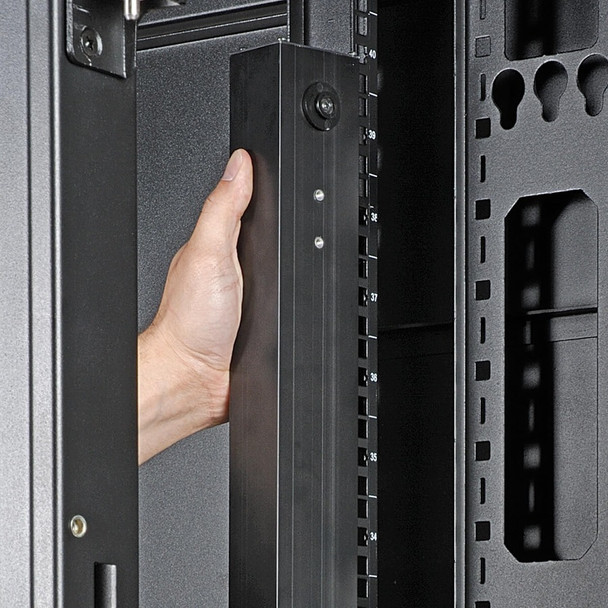

An ideal PDU for server rooms, network closets and data centers, the PDUMV30HV2's all-metal housing comes ready to mount vertically in your rack using the preinstalled 9 mm buttons or the included hardware. The NEMA L6-30P input plug with 10-foot (3-meter) cord connects to your facility's compatible AC power source, generator or protected UPS. Included C20 and C14 plug-lock inserts connect to your components' plugs to ensure they remain connected and continuously powered. Use the included ground screw to connect any equipment that requires a chassis ground.
Package Contents:
- PDUMV30HV2 48-Outlet PDU
- Plug-lock inserts (8 C20, 40 C13)
- Spare installation buttons, 2.9mm/4.6 mm
- Ground screw
- Mounting hardware
- Owner's Manual
Features
- PDUMV30HV2 48-Outlet PDU
- Plug-lock inserts (8 C20, 40 C13)
- Spare installation buttons, 2.9mm/4.6 mm
- Ground screw
- Mounting hardware
- Owner's Manual
TAA Compliant:
Yes
Environmentally Friendly:
Yes
Environmental Compliance:
Restriction of Hazardous Substances (RoHS)
Country of Origin:
Taiwan
Specs
| Power Description | |
| Power Rating (Watt) | 5800 W |
| Input Voltage | 230 V AC |
| Output Voltage | 230 V AC |
| Input Current | 30 A |
| Physical Characteristics | |
| Weight (Approximate) | 12.35 lb |
| Height | 70" |
| Mounting Orientation | Vertical |
| Width | 2.2" |
| Rack Height | 0U |
| Depth | 2.5" |
| Warranty | |
| Limited Warranty | 2 Year |
| General Information | |
| Brand Name | Tripp Lite series |
| Manufacturer Website Address | http://www.eaton.com |
| Marketing Information | The 70-inch (178-centimeter) PDUMV30HV2 30A 208/240V 5.8kW Single-Phase Metered Power Distribution Unit features 48 outlets for distributing single-phase AC power to rack-mounted equipment, including computers, routers, switches and servers. Outlets are arranged in two separate load banks, each with 24 outlets (4 C19 and 20 C13), a dedicated 20A circuit breaker and a digital meter that reports the bank's real-time output current in amps. The ammeters let you visually monitor each bank and maintain balanced loads to prevent circuit overloads and downtime due to breakers tripping. Special guards prevent the breakers from tripping accidentally. Outlets, breakers and ammeters are color-coded and labeled for easy identification. An ideal PDU for server rooms, network closets and data centers, the PDUMV30HV2's all-metal housing comes ready to mount vertically in your rack using the preinstalled 9 mm buttons or the included hardware. The NEMA L6-30P input plug with 10-foot (3-meter) cord connects to your facility's compatible AC power source, generator or protected UPS. Included C20 and C14 plug-lock inserts connect to your components' plugs to ensure they remain connected and continuously powered. Use the included ground screw to connect any equipment that requires a chassis ground. More from the Manufacturer |
| Product Type | PDU |
| Product Name | Metered PDUMV30HV2 48-Outlet PDU |
| Manufacturer | Eaton Corporation |
| Manufacturer Part Number | PDUMV30HV2 |
| Product Model | PDUMV30HV2 |
| Product Line | Metered |
| Technical Information | |
| Receptacle Type |
|
| Receptacle Detail |
|
| Plug/Connector Type | NEMA L6-30P |
| Protection Type | Overload Protection |
