Tripp Lite PDU Monitored 1.9kW 120V, 24 5-15/20R, LX Platform Interface, 70in. 0URM Rackmount Vertical TAA (pdumnv20lx)

This item is brand-new, factory sealed.

The PDUMNV20LX 1.9kW Single-Phase Monitored PDU provides real-time remote monitoring of voltage, frequency and load levels via built-in network connection. Recommended for any IT or industrial application, it features 24 NEMA 5-15/20R outlets with included cord retention brackets to prevent cables from becoming accidentally disconnected. A 10-foot cord with NEMA L5-20P plug and 5-20P adapter connects the PDU to a compatible AC power source, generator or protected UPS.

The built-in Java-free HTML5-based LX Platform network interface enables full remote access for PDU status monitoring and email notifications via secure web browser, SNMP, telnet or SSH. It supports 10/100 Mbps auto-sensing for optimum communication with an Ethernet network. Optional EnviroSense2 modules (sold separately) provide a variety of environmental monitoring capabilities. Protocols supported include HTTP, HTTPS, SMTP, SNMPv1, SNMPv2, SNMPv3, telnet, SSH, FTP, DHCP and NTP.

A digital ammeter allows you to monitor the PDUs current level in real time to ensure it remains well below maximum capacity with no danger of overload. The PDU mounts in 0U of space in EIA-standard 19-inch racks using the included toolless mounting buttons or the included rack-mounting brackets. Use the included PDUMVROTATEBRKT kit to install the unit with outlets facing the rear for better airflow or equipment access.OVERVIEW
PDU Type: MonitoredOUTPUT
Output Capacity Details: 2.03kW (127V), 1.92kW (120V), 1.6kW (100V) / 20A total capacity (Agency de-rated to 16A) 16A max per outlet
Frequency Compatibility: 50 / 60 Hz

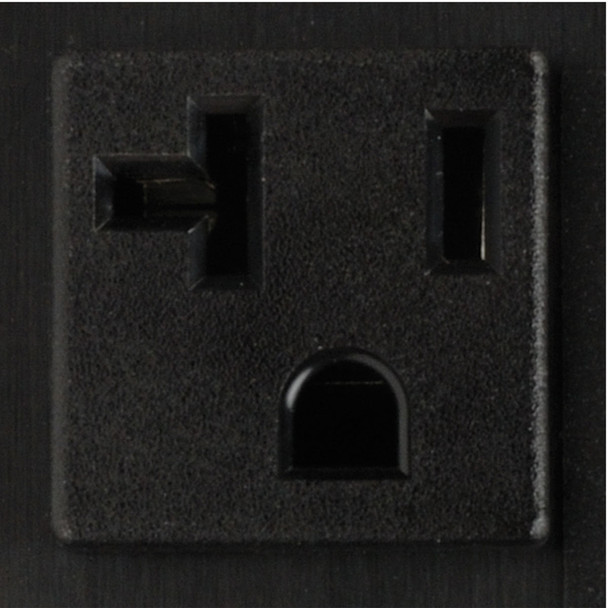

Output Receptacles: (24) 5-15/20R
Output Nominal Voltage: 100 120 127
Overload Protection: n/aINPUT
PDU Input Voltage: 100 120 127
Recommended Electrical Service: 20A 120V
Maximum Input Amps: 20
PDU Plug Type: NEMA 5-20P NEMA L5-20P
Input Cord Length (ft.): 10
Input Phase: Single-PhaseUSER INTERFACE, ALERTS AND CONTROLS

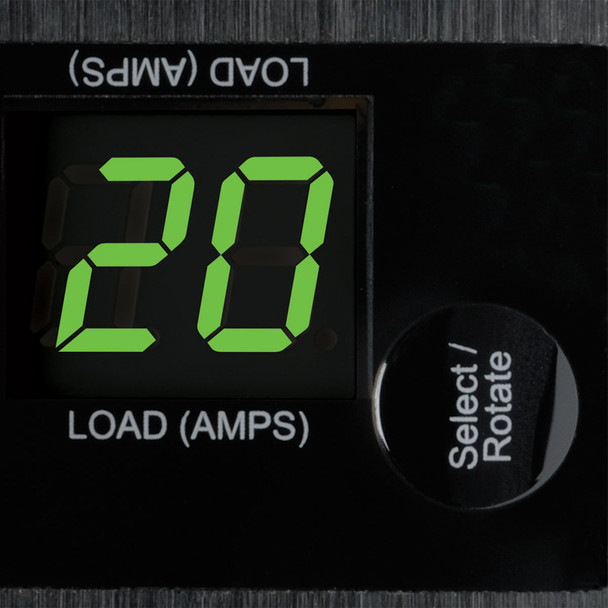

Front Panel LCD Display: Digital meter reports PDU output current in amps, Scroll IP-address information Display can be rotated 180 degrees for installation with the input cable at the top
Front Panel LEDs: n/a
Switches: Press the SCROLL IP / ROTATE button and release after one second to display the configured IP address in 2 digit intervals Press and release after two seconds to rotate the display 180 degreesPHYSICAL
Material of Construction: Metal
Form Factors: Supported 0U vertical rackmount installation supported with included mounting brackets supports toolless mounting in button-mount compatible racks
PDU Form Factor: 0U VerticalENVIRONMENTAL
Storage Temperature Range: 5 to 122F (-15 to 50C)
Relative Humidity: 5-95% non-condensing
Operating Elevation (ft.): 0-10,000
Operating Elevation (m): 0-3000COMMUNICATIONS
SNMP Compatibility: Via built-in LX Platform InterfaceCERTIFICATIONS
Certifications: Tested to UL/CAN 60950-1 (USA, Canada), FCC Class A, Part 15 (Emissions), NOM (Mexico), RoHS compliant, TAA CompliantItem Dimension (L"xW"xH")
4 x 6 x 73

Weight
12.2 lbs

Warranty Information
2-year limited warranty
