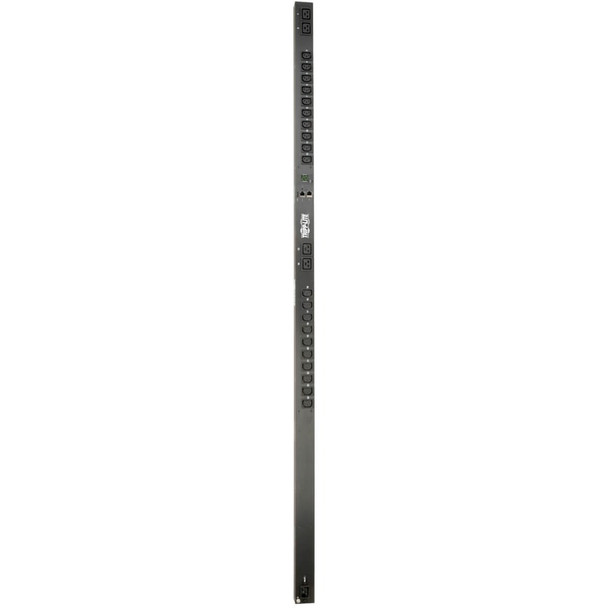

Tripp Lite PDU Monitored 3.3-3.7kW 20 C13 4 C19 208/230V 20A LX Platform 0URM (pdumnv20hvlx)
- SKU:
- 18157789
- MPN:
- pdumnv20hvlx
- Availability:
- Usually ships the same or next business day. In stock at our IL, NJ warehouses.
- Shipping:
- Calculated at Checkout
- Stock Update:
- 12/08/2025 04:28:01 PM PST
Bulk discount rates
Below are the available bulk discount rates for each individual item when you purchase a certain amount
| Buy 2 or above | and pay only $568.38 each 568.38 |
- Stock Update:
- 12/08/2025 04:28:01 PM PST
Description
This item is brand-new, factory sealed.
The PDUMNV20HVLX 3.3-3.7kW Single-Phase Monitored PDU provides real-time remote monitoring of voltage, frequency and load levels via built-in network connection. Recommended for your IT or industrial application, the 0U PDU features 24 outlets (20 C13 and 4 C19) with included plug-lock insert sleeves to prevent cables from becoming accidentally disconnected. The C20 inlet is compatible with a wide variety of user-supplied power cords for connecting to an AC source, generator or protected UPS. A detachable 10-foot cord with NEMA L6-20P plug is included.
The built-in Java-free HTML5-based LX Platform network interface enables full remote access for PDU status monitoring and email notifications via secure web browser, SNMP, telnet or SSH. It supports 10/100 Mbps auto-sensing for optimum communication with an Ethernet network. Optional EnviroSense2 modules (sold separately) provide a variety of environmental monitoring capabilities. Protocols supported include IPv4, IPv6, HTTP, HTTPS, SMTP, SNMPv1, SNMPv2, SNMPv3, telnet, SSH, FTP, DHCP and NTP.
A digital ammeter allows you to monitor the total connected load in real time to ensure it remains well below maximum capacity with no danger of overload. The PDU mounts in 0U of space in EIA-standard 19-inch racks using the included toolless mounting buttons or the included rack-mounting brackets. Use the included PDUMVROTATEBRKT kit to install the unit with outlets facing the rear for better airflow or equipment access.
Features
Distributes and Monitors Network-Grade AC Power
- 3.3-3.7kW 208/230V 20A monitored PDU with single-phase input
- C20 inlet compatible with wide variety of user-supplied power cords
- Detachable 10 ft. cord with NEMA L6-20P plug included
- Firmware upgrades support future product enhancements
20 C13 and 4 C19 Outlets Distribute AC Power
- Included plug-lock inserts prevent cables from becoming accidentally disconnected
Digital Ammeter
- Reports total connected equipment load in real time
- Supports IP-address self-ID
- Rotates 180° for easy reading at either angle
Built-In LX Platform Interface
- Allows full remote access for power monitoring with email notifications via secure web browser, SNMP, telnet or SSH
- Supports 10/100 Mbps auto-sensing for communication with an Ethernet network
- Optional EnviroSense2 modules (sold separately) provide a variety of environmental monitoring capabilities
- No Java required
Broad Communications Compatibility
- Supports IPv4, IPv6, HTTP, HTTPS, SMTP, SNMPv1, SNMPv2, SNMPv3, telnet, SSH, FTP, DHCP and NTP
- Supports automatic and manual assignment of IP address
Easy 0U Installation in EIA-Standard 19 in. Racks
- Mounts vertically using included toolless buttons or rack-mounting brackets
- Included PDUMVROTATEBRKT allows mounting with rear-facing outlets
TAA-Compliant
- Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases
Package Contents:
- PDUMNV20HVLX 3.3-3.7kW Single-Phase Monitored PDU
- Built-in LX Platform Interface
- Detachable NEMA L6-20P to C19 Power Cord, 10 ft
- Configuration Cable
- 24 x Plug-lock Inserts
- Rack-mounting Hardware
- PDUMVROTATEBRKT Mounting Bracket Accessory
- Owner's Manual
Features
- PDUMNV20HVLX 3.3-3.7kW Single-Phase Monitored PDU
- Built-in LX Platform Interface
- Detachable NEMA L6-20P to C19 Power Cord, 10 ft
- Configuration Cable
- 24 x Plug-lock Inserts
- Rack-mounting Hardware
- PDUMVROTATEBRKT Mounting Bracket Accessory
- Owner's Manual
TAA Compliant:
Yes
Environmentally Friendly:
Yes
Environmental Compliance:
Restriction of Hazardous Substances (RoHS)
Country of Origin:
Taiwan
Specs
| Power Description | |
| Power Rating (Watt) | 3700 W |
| Input Voltage | 230 V AC |
| Output Voltage | 230 V AC |
| Input Current | 16 A |
| Physical Characteristics | |
| Weight (Approximate) | 8.51 lb |
| Mount Type | Rack-mountable |
| Height | 70" |
| Mounting Orientation | Vertical |
| Width | 2.2" |
| Rack Height | 0U |
| Depth | 2.6" |
| Warranty | |
| Limited Warranty | 2 Year |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| General Information | |
| Brand Name | Eaton |
| Manufacturer Website Address | http://www.eaton.com |
| Marketing Information | The PDUMNV20HVLX 3.3-3.7kW Single-Phase Monitored PDU provides real-time remote monitoring of voltage, frequency and load levels via built-in network connection. Recommended for your IT or industrial application, the 0U PDU features 24 outlets (20 C13 and 4 C19) with included plug-lock insert sleeves to prevent cables from becoming accidentally disconnected. The C20 inlet is compatible with a wide variety of user-supplied power cords for connecting to an AC source, generator or protected UPS. A detachable 10-foot cord with NEMA L6-20P plug is included. The built-in Java-free HTML5-based LX Platform network interface enables full remote access for PDU status monitoring and email notifications via secure web browser, SNMP, telnet or SSH. It supports 10/100 Mbps auto-sensing for optimum communication with an Ethernet network. Optional EnviroSense2 modules (sold separately) provide a variety of environmental monitoring capabilities. Protocols supported include IPv4, IPv6, HTTP, HTTPS, SMTP, SNMPv1, SNMPv2, SNMPv3, telnet, SSH, FTP, DHCP and NTP. A digital ammeter allows you to monitor the total connected load in real time to ensure it remains well below maximum capacity with no danger of overload. The PDU mounts in 0U of space in EIA-standard 19-inch racks using the included toolless mounting buttons or the included rack-mounting brackets. Use the included PDUMVROTATEBRKT kit to install the unit with outlets facing the rear for better airflow or equipment access. Features Distributes and Monitors Network-Grade AC Power 3.3-3.7kW 208/230V 20A monitored PDU with single-phase input C20 inlet compatible with wide variety of user-supplied power cords Detachable 10 ft. cord with NEMA L6-20P plug included Firmware upgrades support future product enhancements 20 C13 and 4 C19 Outlets Distribute AC Power Included plug-lock inserts prevent cables from becoming accidentally disconnected Digital Ammeter Reports total connected equipment load in real time Supports IP-address self-ID Rotates 180° for easy reading at either angle Built-In LX Platform Interface Allows full remote access for power monitoring with email notifications via secure web browser, SNMP, telnet or SSH Supports 10/100 Mbps auto-sensing for communication with an Ethernet network Optional EnviroSense2 modules (sold separately) provide a variety of environmental monitoring capabilities No Java required Broad Communications Compatibility Supports IPv4, IPv6, HTTP, HTTPS, SMTP, SNMPv1, SNMPv2, SNMPv3, telnet, SSH, FTP, DHCP and NTP Supports automatic and manual assignment of IP address Easy 0U Installation in EIA-Standard 19 in. Racks Mounts vertically using included toolless buttons or rack-mounting brackets Included PDUMVROTATEBRKT allows mounting with rear-facing outlets TAA-Compliant Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases More from the Manufacturer |
| Product Type | PDU |
| Product Name | PDUMNV20HVLX 3.3-3.7kW Single-Phase Monitored PDU |
| Manufacturer | Eaton Corporation |
| Manufacturer Part Number | PDUMNV20HVLX |
| Product Model | PDUMNV20HVLX |
| Technical Information | |
| Receptacle Type |
|
| Receptacle Detail |
|
| Phase | Single Phase |
| PDU Type | Monitored |
| Management | |
| Management | <ul> <li>IPv4</li> <li>IPv6</li> <li>HTTP</li> <li>HTTPS</li> <li>SMTP</li> <li>SNMPv1</li> <li>SNMPv2</li> <li>SNMPv3</li> <li>telnet</li> <li>SSH</li> <li>FTP</li> <li>DHCP and NTP</li> </ul> |
