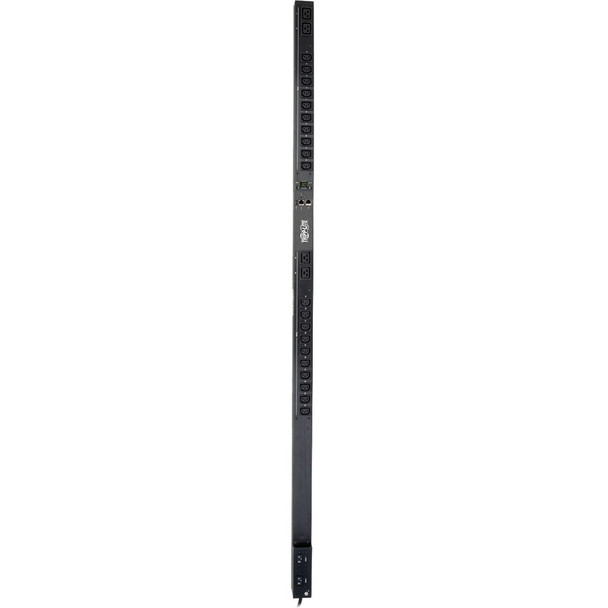

Tripp Lite PDU Monitored 5/5.8kW 208/240V, 20 C13 4 C19, LX Platform Interface, 0URM Rackmount Vertical TAA (pdumnv30hvlx)
- SKU:
- 18156974
- MPN:
- pdumnv30hvlx
- Availability:
- Out of stock
- Stock Update:
- 02/10/2026 09:07:15 AM PST
- Stock Update:
- 02/10/2026 09:07:15 AM PST
Description
This item is brand-new, factory sealed.

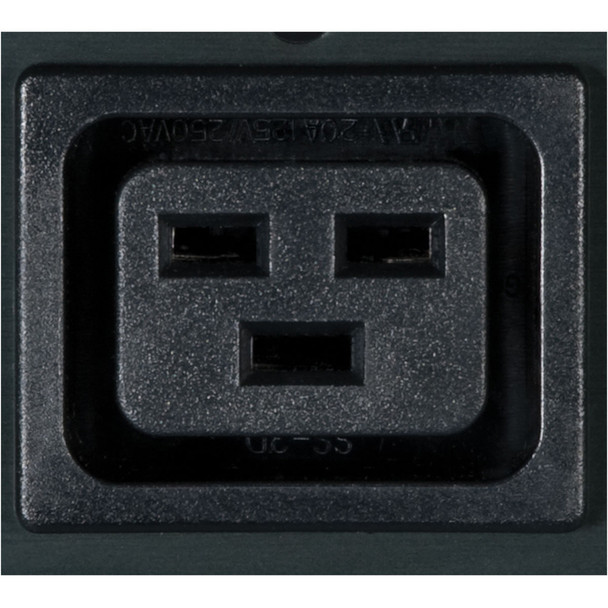

The PDUMNV30HVLX 5.8kW Single-Phase Monitored PDU provides real-time remote monitoring of voltage, frequency and load levels via built-in network connection. Recommended for any IT or industrial application, it features 24 outlets (20 C13 and 4 C19) with included cord retention brackets to prevent cables from becoming accidentally disconnected. A 10-foot cord with NEMA L6-30P plug connects the PDU to a compatible AC power source, generator or protected UPS.

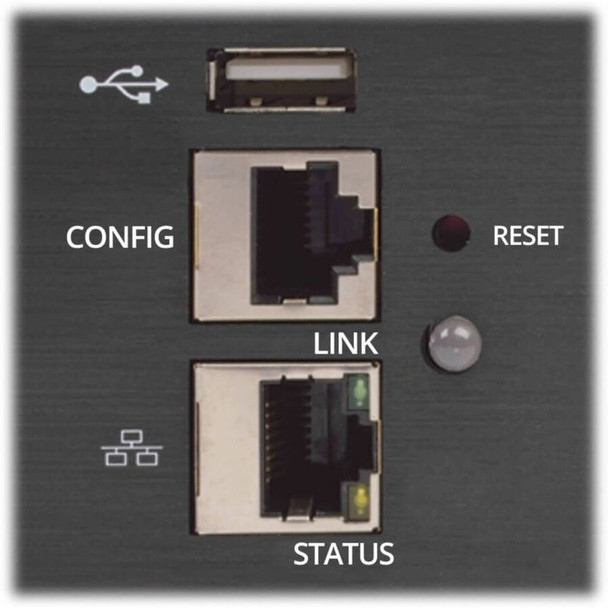

The built-in Java-free HTML5-based LX Platform network interface enables full remote access for PDU status monitoring and email notifications via secure web browser, SNMP, telnet or SSH. It supports 10/100 Mbps auto-sensing for optimum communication with an Ethernet network. Optional EnviroSense2 modules (sold separately) provide a variety of environmental monitoring capabilities. Protocols supported include HTTP, HTTPS, SMTP, SNMPv1, SNMPv2, SNMPv3, telnet, SSH, FTP, DHCP and NTP.
A digital ammeter allows you to monitor each bank's load in real time to ensure it remains well below maximum capacity with no danger of overload. The PDU mounts in 0U of space in EIA-standard 19-inch racks using the included toolless mounting buttons or the included rack-mounting brackets. Use the included PDUMVROTATEBRKT kit to install the unit with outlets facing the rear for better airflow or equipment access.
Package Contents:
- PDUMNV30HVLX 5/5.8kW Single-Phase Monitored PDU
- Configuration cable
- 24 x Cable ties
- 2 x Cord retention brackets
- Rack-mounting hardware
- PDUMVROTATEBRKT mounting bracket accessory
- Owner's manual
Features
- PDUMNV30HVLX 5/5.8kW Single-Phase Monitored PDU
- Configuration cable
- 24 x Cable ties
- 2 x Cord retention brackets
- Rack-mounting hardware
- PDUMVROTATEBRKT mounting bracket accessory
- Owner's manual
TAA Compliant:
Yes
Environmentally Friendly:
Yes
Environmental Compliance:
Restriction of Hazardous Substances (RoHS)
Country of Origin:
Taiwan
Specs
| Power Description | |
| Power Rating (Watt) | 5800 W |
| Input Voltage Range | 200 V AC - 240 V AC |
| Input Voltage | 230 V AC |
| Output Voltage |
|
| Input Current | 30 A |
| Physical Characteristics | |
| Weight (Approximate) | 11.50 lb |
| Mount Type | Rack-mountable |
| Height | 70" |
| Mounting Orientation | Vertical |
| Width | 2.2" |
| Rack Height | 0U |
| Depth | 2.6" |
| Warranty | |
| Limited Warranty | 2 Year |
| General Information | |
| Brand Name | Eaton |
| Manufacturer Website Address | http://www.eaton.com |
| Marketing Information | The PDUMNV30HVLX 5.8kW Single-Phase Monitored PDU provides real-time remote monitoring of voltage, frequency and load levels via built-in network connection. Recommended for any IT or industrial application, it features 24 outlets (20 C13 and 4 C19) with included cord retention brackets to prevent cables from becoming accidentally disconnected. A 10-foot cord with NEMA L6-30P plug connects the PDU to a compatible AC power source, generator or protected UPS. The built-in Java-free HTML5-based LX Platform network interface enables full remote access for PDU status monitoring and email notifications via secure web browser, SNMP, telnet or SSH. It supports 10/100 Mbps auto-sensing for optimum communication with an Ethernet network. Optional EnviroSense2 modules (sold separately) provide a variety of environmental monitoring capabilities. Protocols supported include HTTP, HTTPS, SMTP, SNMPv1, SNMPv2, SNMPv3, telnet, SSH, FTP, DHCP and NTP. A digital ammeter allows you to monitor each bank's load in real time to ensure it remains well below maximum capacity with no danger of overload. The PDU mounts in 0U of space in EIA-standard 19-inch racks using the included toolless mounting buttons or the included rack-mounting brackets. Use the included PDUMVROTATEBRKT kit to install the unit with outlets facing the rear for better airflow or equipment access. More from the Manufacturer |
| Product Type | PDU |
| Product Name | PDUMNV30HVLX 5/5.8kW Single-Phase Monitored PDU |
| Manufacturer | Eaton Corporation |
| Manufacturer Part Number | PDUMNV30HVLX |
| Technical Information | |
| Receptacle Type |
|
| Receptacle Detail |
|
| Phase | Single Phase |
| Plug/Connector Type | NEMA L6-30P |
| PDU Type | Monitored |
| Management | |
| Management | <ul> <li>HTTP</li> <li>HTTPS</li> <li>SNMPv1</li> <li>SNMPv2</li> <li>SNMPv3</li> <li>telnet</li> <li>SSH</li> <li>FTP</li> <li>DHCP</li> <li>NTP</li> </ul> |
