Tripplite
Tripp Lite Pdu Monitored Horizontal 3.3/3.8kw 208/240v Ats L6-20r L6-20p 1u - 3.80 Kva - 1u (pdumnh20hvat)
(No reviews yet)
Write a Review
- SKU:
- 19846683
- MPN:
- pdumnh20hvat
- Availability:
- Usually ships the same or next business day. In stock at our IL warehouse.
- Shipping:
- Calculated at Checkout
- Stock Update:
- 02/02/2026 12:38:48 PM PST
- Stock Update:
- 02/02/2026 12:38:48 PM PST
Description
This item is brand-new, factory sealed.

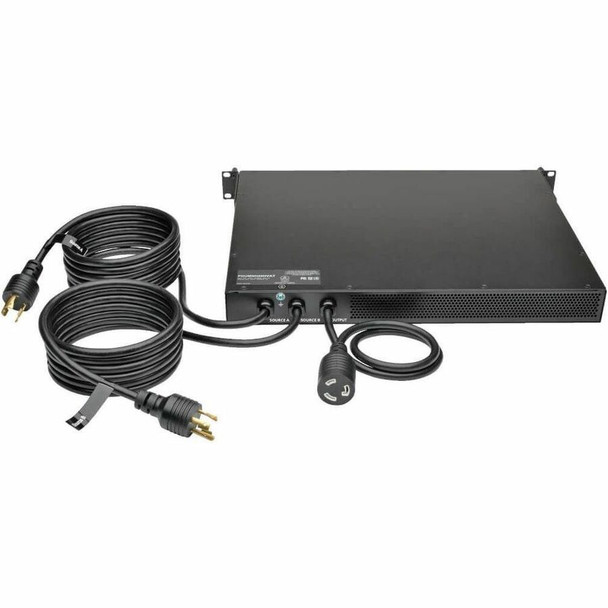

The PDUMNH20HVAT 3.3/3.8kW Single-Phase 208/240V ATS/Monitored PDU provides remote power monitoring and enables redundant power for network devices with non-redundant power supply configurations. Ideal for data centers and server rooms, it mounts in 1U of space in EIA-standard 19-inch racks and features one L6-20R outlet-perfect for connecting a single device or a 0U 208/240V PDU with an L6-20P plug.Dual 10-foot input cords with L6-20P plugs connect to separate primary and secondary single-phase power sources. The PDU constantly evaluates the power quality of both input sources. Dynamic solid-state(TRIAC) automatic transfer switching allows the PDU to switch to the secondary source within 1-5 milliseconds should the primary source fail or become unstable to ensure your connected equipment operates without interruption.
Built-in Ethernet network interface allows remote access to the PDU for power monitoring, configuration, control and notifications via web browser, SSH, telnet or SNMP. Provides real-time load/current data with billing-grade accuracy(+/- 1 percent). Tiered access privileges allow both an administrator and a guest to log in. Automated alerts help prevent accidental overloads, power loss and downtime. Digital display indicates power availability, voltage, source A/B input status, output load and power factor, as well as temperature and humidity conditions with the optional ENVIROSENSE module(sold separately).
Package Contents:
- PDUMNH20HVAT 1-Outlet PDU
- Mounting brackets
- Owner's manual
Features
Package Contents:
Yes
Yes
Restriction of Hazardous Substances (RoHS)
Taiwan
- PDUMNH20HVAT 1-Outlet PDU
- Mounting brackets
- Owner's manual
TAA Compliant:
Yes
Environmentally Friendly:
Yes
Environmental Compliance:
Restriction of Hazardous Substances (RoHS)
Country of Origin:
Taiwan
Specs
| Power Description | |
| Power Rating (Watt) | 3800 W |
| Input Voltage | 230 V AC |
| Output Voltage | 230 V AC |
| Input Current | 20 A |
| Physical Characteristics | |
| Weight (Approximate) | 15.37 lb |
| Mount Type | Rack-mountable |
| Height | 1.7" |
| Mounting Orientation | Horizontal |
| Width | 16.9" |
| Rack Height | 1U |
| Depth | 14" |
| Warranty | |
| Limited Warranty | 2 Year |
| General Information | |
| Brand Name | Tripp Lite series |
| Manufacturer Website Address | http://www.eaton.com |
| Marketing Information | The PDUMNH20HVAT 3.3/3.8kW Single-Phase 208/240V ATS/Monitored PDU provides remote power monitoring and enables redundant power for network devices with non-redundant power supply configurations. Ideal for data centers and server rooms, it mounts in 1U of space in EIA-standard 19-inch racks and features one L6-20R outlet-perfect for connecting a single device or a 0U 208/240V PDU with an L6-20P plug. Dual 10-foot input cords with L6-20P plugs connect to separate primary and secondary single-phase power sources. The PDU constantly evaluates the power quality of both input sources. Dynamic solid-state (TRIAC) automatic transfer switching allows the PDU to switch to the secondary source within 1-5 milliseconds should the primary source fail or become unstable to ensure your connected equipment operates without interruption. The built-in Java-free HTML5-based LX Platform network interface enables full remote access for PDU status monitoring and email notifications via secure web browser, SNMP, telnet or SSH. It supports 10/100 Mbps auto-sensing for optimum communication with an Ethernet network. Optional EnviroSense2 modules (sold separately) provide a variety of environmental monitoring capabilities, including temperature and humidity conditions. Protocols supported include IPv4, IPv6, HTTP, HTTPS, SMTP, SNMPv1, SNMPv2, SNMPv3, telnet, SSH, FTP, DHCP and NTP. DHCP/Manual configuration lets you assign network settings to the card automatically, reducing the need for manual configuration. Automated alerts help prevent accidental overloads, power loss and downtime. More from the Manufacturer |
| Product Type | PDU |
| Product Name | PDUMNH20HVAT 1-Outlet PDU |
| Manufacturer | Eaton Corporation |
| Manufacturer Part Number | PDUMNH20HVAT |
| Product Model | PDUMNH20HVAT |
| Technical Information | |
| Plug/Connector Detail | 2 x NEMA L6-20P |
| Receptacle Type | NEMA L6-20R |
| Receptacle Detail | 1 x NEMA L6-20R |
| Plug/Connector Type | NEMA L6-20P |
Warranty Information
All Items are Brand New, Factory Sealed and come with a standard warranty. [Read our policies]
View AllClose
Tripp Lite Pdu Monitored Horizontal 3.3/3.8kw 208/240v Ats L6-20r L6-20p 1u - 3.80 Kva - 1u (pdumnh20hvat)
$918.10
