Tripp Lite PDU 3-Phase Metered 208V 14.4kW 36 C13; 6 C19; 3 L6-30R 0URM (PDU3MV6H50A)

This item is brand-new, factory sealed.

Tripp Lite 3 phase Metered PDU / Power Distribution Units offer real-time local reporting of current levels in amps via set of 3 built-in digital meters. Enables visual monitoring of PDU current levels to preserve proper loading balance and prevent circuit overloads as additional equipment is added. Offers reliable rackmount multi-outlet power distribution from any protected UPS, generator or mains input power source. High quality design includes rugged all-metal housing and secure rackmount installation with included mounting accessories.


Features


  14.4kW 3 phase 208V Metered Power Distribution Unit / PDU

  Set of 3 built-in current meters continuously report load current in amps for all 3 output phases

  Attached Hubbell CS8365C 50A (3P+E) 208V 3 phase input plug with 6 ft. / 1.8m cord

  0U, 70 in. / 178cm vertical form factor supports installation in 2 or 4 post equipment racks

  45 total 208V outlets (36 C13, 6 C19, 3 L6-30R) arranged in three breakered single phase output load banks

  Included cord retention brackets keep vital network equipment plugged in and continuously powered

  Toolless mounting supported in button-mount compatible racks, plus nut-and-bolt mounting brackets for other mounting applications (set of 2 9mm buttons pre-installed, 2 9mm and 4 6mm spare buttons included)

  Federal Trade Agreements Act / TAA Compliant for GSA Schedule purchasesPDU Type
MeteredOUTPUT
Output Capacity Details: 14.4kW (208V) total capacity 20A max output phases L2-L3 and L3-L1, 30A max output phase L1-L2, 24A max per L6-30R outlet, 16A max per C19 outlet, 12A max per C13 outlet
Frequency Compatibility: 50 / 60 Hz
Output Receptacles: (36) C13, (6) C19, (3) L6-30R
Output Nominal Voltage: 208
Overload Protection: 3 circuit breakers protect each outlet bank (30A: L1-L2, 20A: L2-L3, 20A: L3-L1)INPUT
PDU Input Voltage: 208
Recommended Electrical Service: 50A 208V with Hubbell CS8365C outlet
Maximum Input Amps: 40
PDU Plug Type: HUBBELL CS8365C 50A
Input Cord Length: 1.83 m
Input Phase: 3-PhaseReported Load Segments
Supports local monitoring of current for each output phase combination (30A max: L1-L2, 20A max: L2-L3 and L3-L1), Outlets are color-coded and labelled for easy phase and load bank identification, L1-L2 feeds black outlets, L2-L3 feeds dark-gray outlets, L3-L1 feeds light-gray outletsFront Panel LCD Display

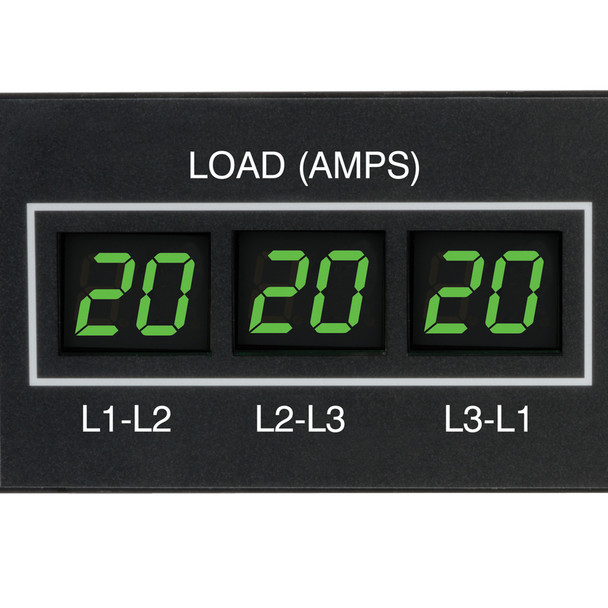

Set of 3 digital current meters report current in amps for each output phaseFront Panel LEDs
n/aSwitches
n/aMaterial of Construction
MetalForm Factors Supported
Vertical rackmount installation supported with included mounting brackets supports toolless mounting in button-mount compatible racksPDU Form Factor
Vertical (0U)ENVIRONMENTAL
Operating Temperature Range: 32 to 122F (0 to 50C)
Storage Temperature Range: 5 to 140F (-15 to 60C)
Relative Humidity: 5-95 percent non-condensing
Operating Elevation (m) : 0-3000Certifications
Tested to UL60950-1 (USA, Canada), NOM (Mexico), Class A (Emissions), ROHS, TAA CompliantPackage Includes
Metered PDU with pre-installed mounting buttons
Cord retention brackets
Spare installation buttons (2 9mm / 4 6mm)
Rack mounting brackets
Owners manualItem Dimension (L inchxW inchxH inch)
77 x 10 x 6

Weight
28.00lb

Warranty Information
2-year limited warranty
