Tripp Lite PDU Switched 120V 30A 24 5-15/20R L5-30P LX Interface 0URM TAA (PDUMVR30NETLX)
(No reviews yet)
Write a Review
- SKU:
- 18157079
- MPN:
- pdumvr30netlx
- Availability:
- Out of stock
- Stock Update:
- 02/04/2026 03:43:40 PM PST
- Stock Update:
- 02/04/2026 03:43:40 PM PST
Description
This item is brand-new, factory sealed.
The PDUMVR30NETLX 2.9kW Single-Phase Switched PDU with individual outlet metering provides advanced network control and remote power monitoring with the ability to turn on, turn off, reboot or lock out power to each outlet. By reducing the frequency of on-site visits, these advanced remote capabilities can save you money and reduce downtime.The switched PDU features 24 individually controllable NEMA 5-15/20R outlets with included cord retention brackets to prevent cables from becoming accidentally disconnected. A 10-foot power cord with NEMA L5-30P plug connects the PDU to an AC source, generator or protected UPS.
The built-in Java-free HTML5-based LX Platform network interface enables full remote access for PDU status monitoring and email notifications via secure web browser, SNMP, telnet or SSH. It supports 10/100 Mbps auto-sensing for optimum communication with an Ethernet network. Optional EnviroSense2 modules (sold separately) provide a variety of environmental monitoring capabilities. Protocols supported include IPv4, IPv6, HTTP, HTTPS, SMTP, SNMPv1, SNMPv2, SNMPv3, telnet, SSH, FTP, DHCP and NTP.

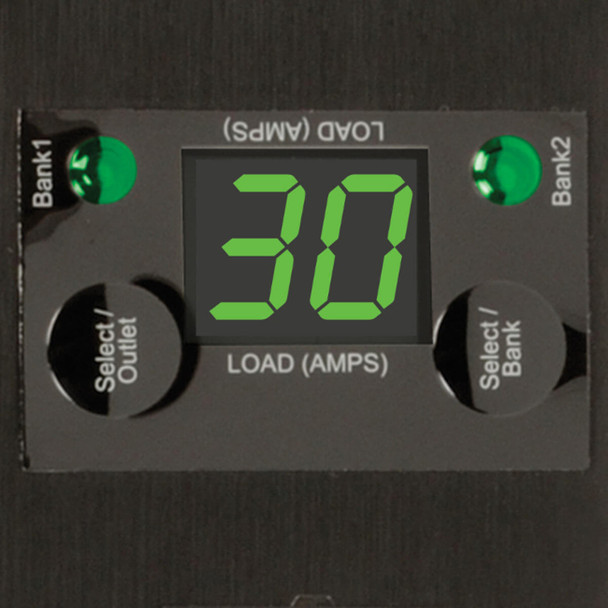

A digital ammeter allows you to monitor each load bank's current, each outlet's current and the total connected PDU load in real time to ensure they remain well below maximum capacity with no danger of overload. The switched PDU mounts in 0U of space in EIA-standard 19-inch racks using the included toolless mounting buttons or the included rack-mounting brackets.

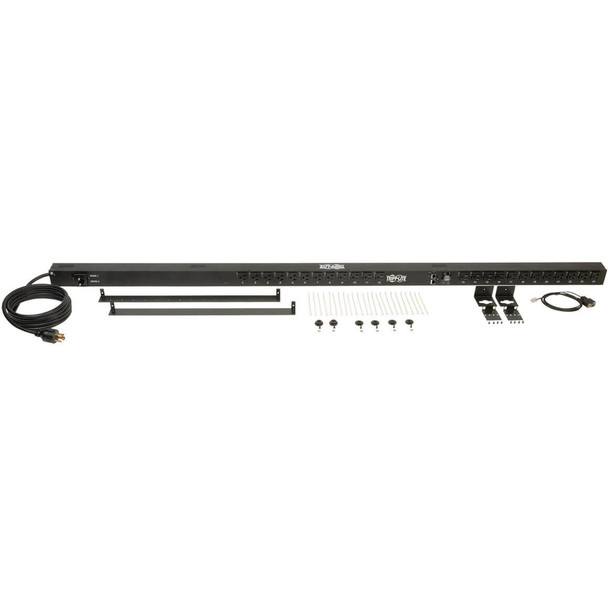

Package Contents:
- PDUMVR30NETLX 24-Outlet PDU
- Built-in LX Platform Interface
- Configuration Cable
- Cord Retention Brackets
- 24 x Cable Ties
- Rack-mounting Hardware
- Mounting Bracket Accessory
- Owner's Manual
Features
Package Contents:
Yes
Yes
Restriction of Hazardous Substances (RoHS)
Taiwan
- PDUMVR30NETLX 24-Outlet PDU
- Built-in LX Platform Interface
- Configuration Cable
- Cord Retention Brackets
- 24 x Cable Ties
- Rack-mounting Hardware
- Mounting Bracket Accessory
- Owner's Manual
TAA Compliant:
Yes
Environmentally Friendly:
Yes
Environmental Compliance:
Restriction of Hazardous Substances (RoHS)
Country of Origin:
Taiwan
Specs
| Power Description | |
| Power Rating (Watt) | 3050 W |
| Input Voltage | 120 V AC |
| Output Voltage Range | 100 V AC - 127 V AC |
| Input Current | 30 A |
| Physical Characteristics | |
| Weight (Approximate) | 9.94 lb |
| Mount Type | Rack-mountable |
| Height | 70" |
| Mounting Orientation | Vertical |
| Width | 2.2" |
| Rack Height | 0U |
| Depth | 2" |
| Warranty | |
| Limited Warranty | 2 Year |
| General Information | |
| Brand Name | Eaton |
| Manufacturer Website Address | http://www.eaton.com |
| Marketing Information | The PDUMVR30NETLX 2.9kW Single-Phase Switched PDU with individual outlet metering provides advanced network control and remote power monitoring with the ability to turn on, turn off, reboot or lock out power to each outlet. By reducing the frequency of on-site visits, these advanced remote capabilities can save you money and reduce downtime. The switched PDU features 24 individually controllable NEMA 5-15/20R outlets with included cord retention brackets to prevent cables from becoming accidentally disconnected. A 10-foot power cord with NEMA L5-30P plug connects the PDU to an AC source, generator or protected UPS. The built-in Java-free HTML5-based LX Platform network interface enables full remote access for PDU status monitoring and email notifications via secure web browser, SNMP, telnet or SSH. It supports 10/100 Mbps auto-sensing for optimum communication with an Ethernet network. Optional EnviroSense2 modules (sold separately) provide a variety of environmental monitoring capabilities. Protocols supported include IPv4, IPv6, HTTP, HTTPS, SMTP, SNMPv1, SNMPv2, SNMPv3, telnet, SSH, FTP, DHCP and NTP. A digital ammeter allows you to monitor each load bank's current, each outlet's current and the total connected PDU load in real time to ensure they remain well below maximum capacity with no danger of overload. The switched PDU mounts in 0U of space in EIA-standard 19-inch racks using the included toolless mounting buttons or the included rack-mounting brackets. More from the Manufacturer |
| Product Type | PDU |
| Product Name | PDUMVR30NETLX 24-Outlet PDU |
| Manufacturer | Eaton Corporation |
| Manufacturer Part Number | PDUMVR30NETLX |
| Product Model | PDUMVR30NETLX |
| Technical Information | |
| Receptacle Type | NEMA 5-15/20R |
| Receptacle Detail | 24 x NEMA 5-15/20R |
| Phase | Single Phase |
| Plug/Connector Type | NEMA L5-30P |
| PDU Type | Switched |
| Protection Type | Overload Protection |
| Management | |
| Management | <b>Protocols:</b><br /> <ul> <li>IPv4</li> <li>IPv6</li> <li>HTTP</li> <li>HTTPS</li> <li>SMTP</li> <li>SNMPv1</li> <li>SNMPv2</li> <li>SNMPv3</li> <li>telnet</li> <li>SSH</li> <li>FTP</li> <li>DHCP </li> <li>NTP</li> </ul> |
