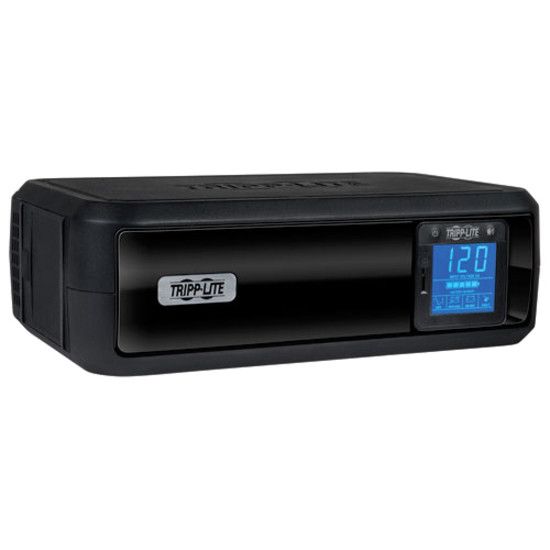

Tripp Lite Smartpro Smart1000lcdtaa 1000 Va Tower/rack Mountable Ups - 1000va/500w - 3 Minute Full Load - 4 X Nema 5-15r - Battery Backup System, 4 X Nema 5-15r - Surge-protected
- SKU:
- 18859917
- MPN:
- smart1000lcdtaa
- Availability:
- Out of stock
- Stock Update:
- 02/04/2026 01:52:38 PM PST
- Stock Update:
- 02/04/2026 01:52:38 PM PST
Description
This item is brand-new, factory sealed.
Tripp Lite's SMART1000LCDTAA is compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases. This Line-Interactive Digital UPS System offers voltage regulation, surge suppression and long-lasting battery support for personal computers, network workstations, home entertainment systems and media centers. Internal UPS circuits support entry-level PCs for up to 60 minutes or individual VCR/DVR component for as long as 3 hours during power failures. Prevents data loss, viewing interruptions, lost recordings and loss of component programming. Automatic Voltage Regulation (AVR) circuits regulate brownouts as low as 89 volts back to usable levels without using battery power. Offers complete power protection in an attractive black tower configuration. Includes 4 battery-supported outlets, plus 4 additional surge suppression-only outlets for items not requiring battery support. USB port enables optional unattended system shutdown without data loss in the case of extended power failure, USB cable included. PowerAlert software available via free download from www.tripplite.com. HID-compliant USB interface enables full integration with built-in power management and auto shutdown features of Windows and Mac OS X. Built-in single-line RJ-11 phone suppression jacks protect modem, satellite receiver or other peripherals with a standard dialup/DSL phone connection. Set of 2.2 GHz coaxial jacks protect against surges entering on CATV, satellite or broadcast antenna connections. Built-in audible alarm and large LCD front panel voltage display indicates line power status, battery power status, battery low/replace status and voltage boost operation. The LCD display includes a dimmer switch and can be rotated for easy viewing in any application. 1000VA/500W power-handling ability supports entry-level PCs, home entertainment systems, network workstations, audio/video components. Offers 3 minutes battery runtime with a full load of 1000VA/500W and 9 minutes with a half load of 500VA/250W. 3-year warranty; $250,000 connected equipment insurance (USA & Canada only).
Package Contents:
- SmartPro SMART1000LCDTAA 1000 VA Tower UPS TAA Compliant
- USB Cable
- Phone Cable
- Manual with Warranty Information
Features
- SmartPro SMART1000LCDTAA 1000 VA Tower UPS TAA Compliant
- USB Cable
- Phone Cable
- Manual with Warranty Information
Certifications & Standards:
- UL 1778
- CSA
- FCC Part 15 Category B (EMI)
- TAA
TAA Compliant:
Yes
Environmentally Friendly:
Yes
Environmental Compliance:
Restriction of Hazardous Substances (RoHS)
Country of Origin:
Taiwan
Specs
| Power Description | |
| Load Capacity (Watt) | 500 W |
| Input Voltage | 110 V AC |
| Output Voltage | 120 V AC |
| Load Capacity (VA) | 1000 VA |
| Input Current | 12 A |
| Physical Characteristics | |
| Form Factor | Tower |
| Weight (Approximate) | 15.50 lb |
| Height | 12" |
| Width | 3.7" |
| Depth | 7.2" |
| Warranty | |
| Limited Warranty | 3 Year |
| Interfaces/Ports | |
| USB | Yes |
| Battery Information | |
| Backup/Run Time (Full Load) | 3 Minute |
| Backup/Run Time (Half Load) | 9 Minute |
| Typical Battery Recharge Time | 20 Hour |
| General Information | |
| Brand Name | Tripp Lite series |
| Manufacturer Website Address | http://www.eaton.com |
| Marketing Information | The TAA-compliant SMART1000LCDTAA SmartPro LCD 120V, 1000VA/500W Line-Interactive Uninterruptible Power Supply provides battery backup and AC power protection against blackouts, brownouts, power surges and line noise that can damage electronics or destroy data. Ideal for backing up your desktop computer or audio/visual components, this line-interactive UPS switches to battery backup mode in milliseconds to keep your connected equipment running long enough to save files and shut down safely with no data loss. While all eight NEMA 5-15R outlets protect against surges, four outlets also provide up to 3 hours of UPS battery support for a DVR component, 60 minutes of support for a basic desktop PC and LCD monitor, and 10 minutes of support at half load (250W). Automatic voltage regulation (AVR) corrects undervoltages as low as 89V without using any battery power. EMI/RFI noise filtering improves your equipment's performance and prevents damage. A 1038-joule surge suppression rating protects your equipment from harmful power surges. Space-saving NEMA 5-15P plug with 6-ft. (1.83 m) cord connects to any NEMA 5-15R socket and allows furniture to be placed flush against the wall. Large rotatable LCD screen with dimmer shows real-time statuses at a glance. With Tripp Lite's free PowerAlert software (available via free web download), the SMART1000LCDTAA enables safe unattended system shutdown and file saves in case of a prolonged power failure. |
| Product Type | Line-interactive UPS |
| Product Name | SMART1000LCDTAA 1000 VA Tower UPS TAA Compliant |
| Manufacturer | Eaton Corporation |
| Manufacturer Part Number | SMART1000LCDTAA |
| Product Model | SMART1000LCDTAA |
| Product Line | SmartPro |
| Technical Information | |
| Receptacle Type | NEMA 5-15R |
| Receptacle Detail | 4 x NEMA 5-15R |
| Plug/Connector Type | NEMA 5-15P |
| Dataline Protection | RJ-11 |
