Tripp Lite Smartrack 21u Wall-mount Standard-depth Rack Enclosure Server Cabinet - 19" 21u Wide X 16.50" Deep Wall Mountable - Black - 90.72 Kg X Maximum Weight Capacity - 200 Lb X (srw21u)
- SKU:
- 18155778
- MPN:
- srw21u
- Availability:
- Usually ships in 2-3 business days. In stock at our CA, TX warehouses.
- Shipping:
- $315.79 (Fixed Shipping Cost)
- Stock Update:
- 01/30/2026 03:42:48 AM PST
- Stock Update:
- 01/30/2026 03:42:48 AM PST
Description
This item is brand-new, factory sealed.

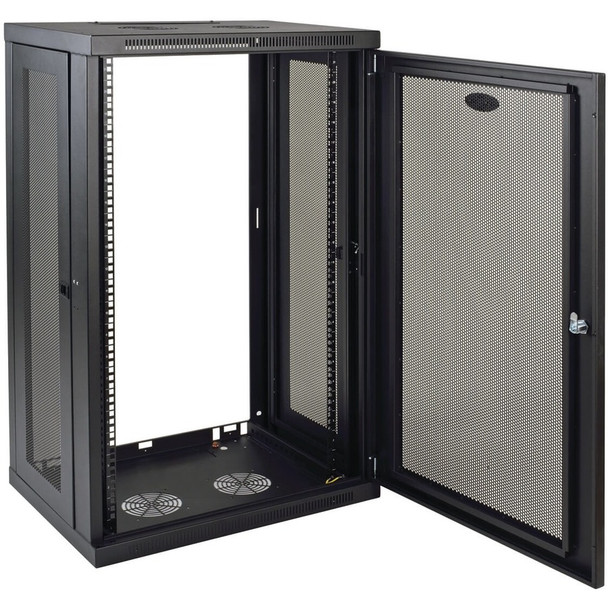

The SRW21U SmartRack 21U Wall-Mount Standard-Depth Rack Enclosure Cabinet is ideal for storing standard 19-inch rack equipment in network closets, retail outlets, offices, classrooms and other areas with limited floor space where you need equipment to be secure and out of the way. Constructed from heavy-duty steel with a durable black powder-coat finish, it supports a maximum load capacity of 200 pounds.
To ensure your valuable equipment stays safe and secure, the reversible front door locks with the included keys. The door and lockable, removable side panels are ventilated, which allows air to flow freely through the cabinet to keep equipment cool. Vented top and bottom panels help remove warm air from the enclosure and draw in cool air by convection. They also support the installation of Tripp Lite SRFANWM fans. The front door can open left or right by rotating the SRW21U 180° before mounting. Convenient top and bottom ports allow easy cable routing through the enclosure.
The SRW21U comes fully assembled and ready to mount. Installing equipment within the enclosure is easy with its square and threaded mounting holes and numbered rack spaces. The front vertical mounting rails adjust in 7/8-inch increments to accommodate equipment from 3 to 16.5 inches deep.
Package Contents:
- SmartRack 21U Wall-Mount Standard-Depth Rack Enclosure Cabinet
- 44 x M6 Screws
- 44 x M6 Cage Nuts
- 44 x M6 Cup Washers
- 44 x 12-24 Screws
- Removable Mounting Plate
- 3 x Mounting Plate Screws
- 2 x Keys
- Owner's Manual
Features
- SmartRack 21U Wall-Mount Standard-Depth Rack Enclosure Cabinet
- 44 x M6 Screws
- 44 x M6 Cage Nuts
- 44 x M6 Cup Washers
- 44 x 12-24 Screws
- Removable Mounting Plate
- 3 x Mounting Plate Screws
- 2 x Keys
- Owner's Manual
Environmentally Friendly:
Yes
Assembly Required:
No
Environmental Compliance:
Restriction of Hazardous Substances (RoHS)
Country of Origin:
China
Specs
| Physical Characteristics | |
| Form Factor | Wall Mountable |
| Weight (Approximate) | 51 lb |
| Rack Width | 19" |
| Product Color | Black |
| Rack Depth | 16.50" |
| Static/Stationary Weight Capacity | 200 lb |
| Maximum Weight Capacity | 200 lb |
| Height | 40.9" |
| Color Family | Black |
| Width | 23.6" |
| Depth | 17.7" |
| Rack Height | 21U |
| Warranty | |
| Limited Warranty | 5 Year |
| General Information | |
| Brand Name | Tripp Lite series |
| Manufacturer Website Address | http://www.eaton.com |
| Marketing Information | The SRW21U SmartRack 21U Low-Profile Switch-Depth Wall-Mount Rack Enclosure Cabinet is designed to house EIA-standard 19-inch rack equipment in network wiring closets, retail locations, classrooms, back offices and other areas with limited floor space where you need equipment to be secure, organized and out of the way. Constructed from heavy-duty steel with a durable black powder-coated finish, the cabinet has a maximum load capacity of 200 pounds.The side panels and front door lock securely to help prevent damage, tampering or theft. The front, top, bottom and removable side panels are vented, which allows air to flow freely and keep equipment cool. The reversible front door can open left or right by rotating the cabinet 180° before mounting. Convenient top and bottom ports allow easy cable routing. The SRW21U comes fully assembled and ready to mount to the wall, or use Tripp Lite's optional SRCASTER rolling caster kit to make it a mobile rack. Square and threaded mounting holes and numbered rack spaces make equipment installation easy. The vertical mounting rails adjust in 7/8-inch increments to accommodate equipment up to 16.5 inches deep, such as network switches and patch panels. More from the Manufacturer |
| Product Type | Rack Cabinet |
| Product Name | SmartRack 21U Wall-Mount Standard-Depth Rack Enclosure Cabinet |
| Manufacturer | Eaton Corporation |
| Manufacturer Part Number | SRW21U |
| Product Model | SRW21U |
| Product Line | SmartRack |
