Tripp Lite Sr25ubsp1 Rack Enclosure Server Cabinet Shock Pallet - 25u - 19" - 25u (65595)

This item is brand-new, factory sealed.

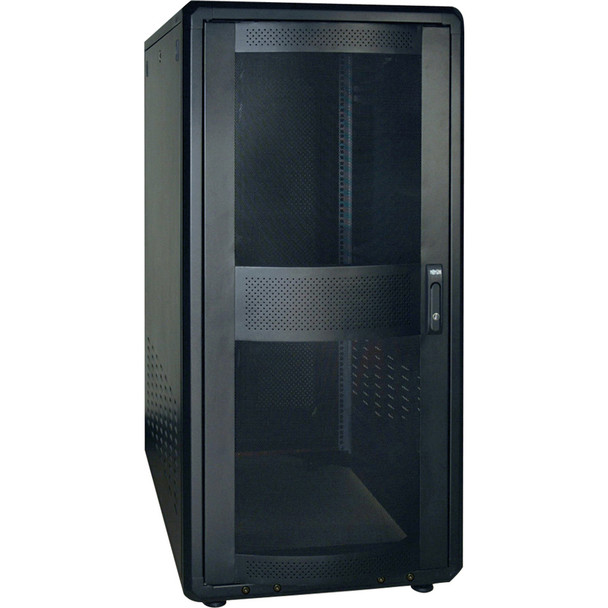

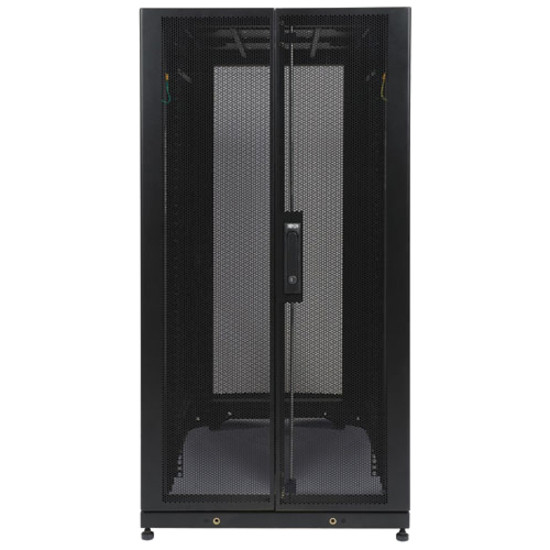

25U SmartRack Enclosure ships mounted on a special pallet that features additional reinforcement and shock-absorbing material. The pallets protective cushion safeguards the enclosure and the precision components it contains during re-shipping. Reinforced pallet and reusable packaging provide the flexibility to fully configure rack enclosures in a centralized location and safely re-ship them to remote sites, saving significant service costs. They also allow the freedom to custom-configure enclosures with network and server hardware along with UPS systems, PDUs, KVM switches and a variety of other devices prior to final installation. SmartRack Enclosures are designed for secure, high-density server and networking applications in IT environments. With provisions to integrate cooling, power distribution and cable management, SmartRacks make ideal homes for mission-critical equipment.- This special version of Tripp Lite 25U SmartRack Enclosure (SR25UB) ships mounted on a "shock pallet" that features additional reinforcement and shock-absorbing material for safe loading and re-shipping- Heavy-duty ramps (included) allow enclosure to be rolled on and off the pallet during configuration- Shipping Capacity: shock-pallet supports up to 1,250 lbs. (200 lbs. SmartRack Enclosure weight + up to 1,050 lbs. of additional equipment), enabling safe loading and re-shipping- Final Installation Capacity: SmartRack Enclosure supports up to 2,500 lbs. of equipment after final installation- 4 interior vertical posts with unthreaded square hole openings- Textured powder coat finish- Massive front to rear ventilation capacity- Maximum usable internal depth of 37 inches / 94 cm (front to rear rail)- Locking, reversible and removable front door- Locking, removable side panels- Locking, removeable split rear doors- Casters and levelers- Roll through 7 foot doorways- Open bottom for cable access- Top cable access openings- Compatibility with air management accessoriesPHYSICAL- EXTERNAL DIMENSIONS: 50.49 x 24 x 42 (H x W x D), Max front to rear rail dimension = 37 inches- EXTERNAL DIMENSIONS: 128.24 x 60.96 x 106.68 (H x W x D), Max front to rear rail dimension = 94 cm- Shipping Dimensions (HWD/in): 53 x 27 x 45

Package Contents:

• SmartRack SR25UBSP1 25U Premium Enclosure with Doors and Side Panels - Shock Pallet

Features

Package Contents:

• SmartRack SR25UBSP1 25U Premium Enclosure with Doors and Side Panels - Shock Pallet



Additional Information:

• Ship fully assembled
• Textured powder coat finish
• Massive front to rear ventilation capacity
• Maximum usable internal depth of 37 inches / 94 cm (front to rear rail)
• Casters and levelers
• Roll through 7 foot doorways
• Open bottom for cable access
• Top cable access openings
• Compatibility with air management accessories
• Load Capacity 3000 lbs



Country of Origin:
China



Specs

Physical Characteristics
Product Color	Black
Height	50.5"
Color Family	Black
Width	24"
Depth	42"
Rack Height	25U
Warranty
Limited Warranty	5 Year
General Information
Brand Name	Tripp Lite series
Manufacturer Website Address	http://www.eaton.com
Marketing Information	25U SmartRack Enclosure ships mounted on a special pallet that features additional reinforcement and shock-absorbing material. SmartRack enclosures are designed for secure, high density server and networking applications in IT environments. Vendor-neutral square hole/cage nut mounting for guaranteed compatibility with all EIA-310-D compliant 19" equipment. Enclosures ship fully assembled for rapid deployment on heavy-duty casters. Toolless mounting slots allow quick installation of PDUs and vertical cable managers. Includes adjustable mounting rails and lightweight modular doors and side panels. Integrated baying tabs facilitate combining enclosures in rows. The SR25UBSP1 holds up to 3000 lbs and supports cooling, cable management, and PDUs. Perforated doors permit massive front to rear airflow. Enclosures are fully compatible with hot-aisle/cold-aisle data center configurations. Meets all enclosure requirements towards PCI DSS (Payment Card Industry Data Security Standard) compliance. More from the Manufacturer
Product Type	Rack Cabinet
Product Name	SR25UBSP1 Rack Enclosure Server Cabinet Shock Pallet - 25U - 19"
Manufacturer	Eaton Corporation
Manufacturer Part Number	SR25UBSP1
Product Model	SR25UBSP1
Product Line	SmartRack
