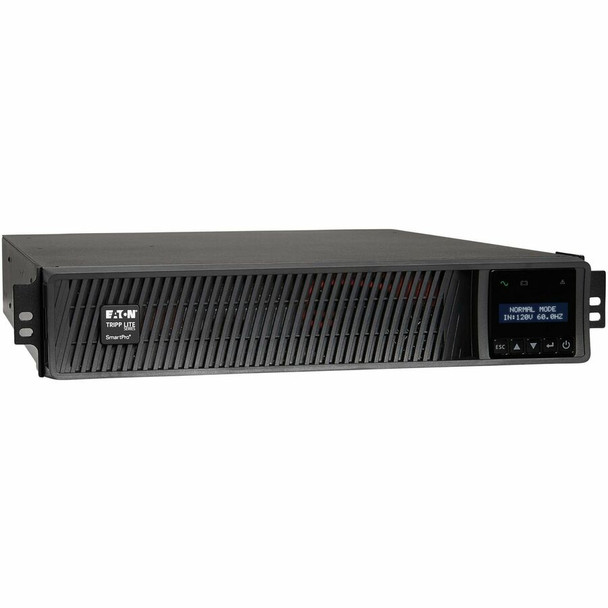

Tripp Lite UPS Smart 750VA 600W 120V LCD USB DB9 Ext Run WEBCARDLX 2URM (smart750rmxl2un)
- SKU:
- 19307479
- MPN:
- smart750rmxl2un
- Availability:
- Usually ships the same or next business day. In stock at our IL warehouse.
- Shipping:
- Calculated at Checkout
- Stock Update:
- 03/10/2026 04:47:27 PM PST
- Stock Update:
- 03/10/2026 04:47:27 PM PST
Description
This item is brand-new, factory sealed.
Tripp Lite UPS Smart 750VA 600W 120V LCD USB DB9 Ext Run WEBCARDLX 2URM (SMART750RMXL2UN)- Line-interactive UPS offers complete power protection for small network applications including telecom/security and digital signage
- Protects equipment against blackouts/ brownouts/ overvoltages/ surges and line noise
- Keeps AC power running during blackouts to allow time for file saves and safe shutdown
- Maintains continuous 120V nominal output during brownouts/overvoltages
- Product Dimensions: 13.1 x 17.4 x 3.5 inches
- Item Weight: 35.4 pounds
750VA/600W/120V Battery Backup for PC Networks, Security Systems or Digital Signage The SmartPro line-interactive SMART750RMXL2UN UPS system with AVR provides reliable battery backup and AC power protection against blackouts, brownouts, overvoltages, surges and line noise that can damage valuable electronics or destroy data. The six-outlet 120V battery backup is ideal protection for small networks, wiring closets, security systems, telecom, high-end PC gaming, digital signage equipment and other professional applications, including retail, casino and hotel/motel management. Reliable, Expandable Battery Backup Keeps You Operational Through Power Outages The user-replaceable, hot-swappable internal battery provides 20.7 minutes of support at half load (300W) and 8.5 minutes at full load (600W), allowing you to work through short power failures and giving you enough time to safely save files and shut down your system in case of a prolonged blackout. For mission-critical applications demanding scalable extended runtime, the UPS supports external battery packs, such as Tripp Lites BP24V36-2US (sold separately). The intelligent battery management system extends battery life. WEBCARDLX Network Interface Offers 24/7 Remote Access for Monitoring and Control The Java-free HTML5-based WEBCARDLX enables full remote access for site power and UPS status monitoring, configuration, control and email notifications via secure web browser, SNMP, telnet or SSH. It supports 10/100 Mbps auto-sensing for optimum communication with an Ethernet network. Automated alerts help prevent accidental overloads, power loss and downtime. WEBCARDLX allows you to use the Auto Probe feature, which can prevent costly service calls by automatically rebooting non-responsive network devices. 6 NEMA Outlets Protect Your Connected Components Six 5-15R outlets provide battery backup, 570 joules of surge protection and voltage regulation for your crucial components. Two independently switched two-outlet load banks enable both scheduled and real-time remote rebooting and load shedding. Automatic Voltage Regulation (AVR) Corrects Low- and High-Voltage Conditions AVR protects your equipment from incremental hardware damage, data loss and performance problems caused by brownouts and overvoltages. The SMART750RMXL2UN can correct brownouts as low as 83V and overvoltages as high as 147V back to nominal 120V power continuously, all while keeping the battery fully charged and ready to take over in case of power failure. Premium Protection from EMI/RFI Line Noise Helps Your Equipment Perform Better This UPS system filters out disruptive electromagnetic and radio frequency interference that can inflict hardware damage or data loss. This EMI/RFI filtering also helps your connected components perform better and last longer. Designed for High Efficiency to Help You Save Money and Protect the Environment A 95% efficiency rating reduces BTU emissions, energy consumption and, ultimately, your energy costs. Silenceable Alarm and Easy-to-Read LCD Keep You Informed Around the Clock The front-panel LCD lets you monitor important data, such as load level, power factor, voltage, battery charge and estimated runtimes. It rotates for comfortable viewing in both rack and tower configurations. The audible alarm sounds for power failure, low battery and overloads. You may silence it using the built-in switch or disable it. Advanced Communications Ports Allow for Automatic Saves and Shutdowns RS-232 and HID-compliant USB ports connect to a computer running Tripp Lites free downloadable PowerAlert software to enable safe unattended file saves and system shutdown in case of a prolonged power failure. The EPO port supports emergency shutdown in large facilities. Cables are included. Versatile Installation Options Hardware is included for mounting the Tripp Lite SmartPro UPS system in 2U of space in an EIA-standard 19-inch 4-post rack. Using optional mounting accessories (sold separately), you can adapt the SMART750RMXL2UN for 2-post (2POSTRMKITWM), front-rail (UPSHDEARKIT), 4-post short-depth (4POSTRAILKITWM), tower (2-9USTAND) or wall mounting (2POSTRMKITWM). The 10-foot power cord with NEMA 5-15P plug connects to any compatible AC outlet.
Package Contents:
- SmartPro SMART750RMXL2UN 750VA Rack/Tower UPS
- WEBCARDLX Network Management Card
- USB Cable
- DB9 Cable
- EPO Cable
- Rack-mounting Hardware
- Owner's Manual
Features
- SmartPro SMART750RMXL2UN 750VA Rack/Tower UPS
- WEBCARDLX Network Management Card
- USB Cable
- DB9 Cable
- EPO Cable
- Rack-mounting Hardware
- Owner's Manual
Environmentally Friendly:
Yes
Environmental Compliance:
Restriction of Hazardous Substances (RoHS)
Country of Origin:
Philippines
Specs
| Power Description | |
| Load Capacity (Watt) | 600 W |
| Input Frequency | 60 Hz |
| Surge Energy Rating | 570 J |
| Input Voltage | 120 V AC |
| Output Voltage |
|
| Load Capacity (VA) | 750 VA |
| Waveform Type | Pure Sine Wave |
| Output Frequency | 60 Hz |
| Physical Characteristics | |
| Form Factor | Rack/Tower |
| Weight (Approximate) | 35.40 lb |
| Height | 3.5" |
| Width | 17.4" |
| Depth | 13.1" |
| Rack Height | 2U |
| Warranty | |
| Limited Warranty | 2 Year |
| Controls/Indicators | |
| Status Indicators | <p><b>Front Panel LCD Information And Configuration Screen:</b></p> <ul> <li>UPS and Site Power Status</li> <li>Operating Data</li> <li>Plus Configuration Of Voltage</li> <li>Frequency</li> <li>Operating Mode</li> <li>Alarm Function and A Variety Of Additional Options</li> </ul> |
| Interfaces/Ports | |
| EPO Port | Yes |
| Serial Port | Yes |
| USB (HID Compliant) Port | Yes |
| Battery Information | |
| Backup/Run Time (Full Load) | 8.50 Minute |
| DC System Voltage | 24 V DC |
| Replaceable Battery | Yes |
| Hot Swappable | Yes |
| Backup/Run Time (Half Load) | 20.70 Minute |
| Typical Battery Recharge Time | 4.50 Hour |
| General Information | |
| Brand Name | Tripp Lite series |
| Manufacturer Website Address | http://www.eaton.com |
| Marketing Information | 750VA/750W/120V Battery Backup for Distributed IT, Telecom or Enterprise Deployments The series SmartPro rack-mount line-interactive UPS system provides reliable battery backup and AC power protection against blackouts, brownouts, surges and line noise that can damage your valuable IT equipment or destroy data. The SMART750RMXL2U is ideal power management for high-end in-rack networking equipment, including servers, VoIP phones, data storage and PoE switches. Unity power factor ensures the most watts possible at each power rating, so you can connect more equipment. Reliable, Expandable Battery Backup Keeps You Operational Through Power Outages The field-replaceable, hot-swappable VRLA battery modules allow you to work through short power failures and give you enough time to safely save files and shut down your system in case of a prolonged blackout. Switchover from line to battery power happens within milliseconds to maintain continuous operation of connected equipment without interruption or rebooting. Extra runtime is available by connecting up to four optional extended battery modules (BP48VRM2U, sold separately). Pre-Installed LX Platform Network Management Card Allows Remote Access 24/7 The WEBCARDLXE network interface enables full remote configuration and management, including load shedding, reboots of connected equipment and safe shutdowns. The IP-based Auto Probe feature ensures continuous network uptime by communicating with other network devices, detecting lost connectivity and automatically rebooting IT equipment. Optional EnviroSense2 modules (E2MT, E2MTDO and E2MTHDI, all sold separately) provide a variety of environmental monitoring and control options. NEMA 5-15R Outlets Protect Your Connected Components Eight managed 5-15R outlets provide connected equipment with pure sine wave AC output and allow you to monitor power consumption down to the outlet group level. Power provided by these outlets is filtered to protect connected equipment against damaging surges and line noise. Four outlets are grouped into two programmable load banks that let you shed non-critical loads to extend runtime for critical loads. Front and rear cooling fans help protect equipment from overheating. Automatic Voltage Regulation (AVR) Corrects Low- and High-Voltage Conditions AVR protects your equipment from incremental hardware damage, data loss and performance problems caused by brownouts. The SMART750RMXL2UN maintains regulated 120V nominal output during brownouts and overvoltages from 80V to 151V while keeping the battery fully charged and ready to take over in case of power failure. Premium Protection from EMI/RFI Line Noise Helps Your Equipment Perform Better This UPS system filters out disruptive electromagnetic and radio frequency interference that can inflict hardware damage or data loss. This EMI/RFI filtering also helps your connected components perform better and last longer. ENERGY STAR-Certified to Help You Save Money and Protect the Environment By meeting strict U.S. Department of Energy and U.S. Environmental Protection Agency requirements, this ENERGY STAR 2.0 UPS system provides high operational efficiency to signal a reduction in BTU emissions, save on utility and cooling costs and help protect the environment. More from the Manufacturer |
| Product Type | Line-interactive UPS |
| Product Name | SmartPro SMART750RMXL2UN 750VA Rack/Tower UPS |
| Manufacturer | Eaton Corporation |
| Manufacturer Part Number | SMART750RMXL2UN |
| Product Model | SMART750RMXL2UN |
| Product Line | SmartPro |
| Technical Information | |
| Receptacle Type | NEMA 5-15R |
| Receptacle Detail | 6 x NEMA 5-15R |
| Overload Protection | Yes |
| Phase | Single Phase |
| Plug/Connector Type | NEMA 5-15P |
| EMI/RFI Noise Filter | Yes |
| Application/Usage |
|
| Transfer Time | 4 ms |
| AVR | Yes |
| Management | |
| Network Management | SNMP/Telnet/SSH |
| Alarm |
|
| Environmental Conditions | |
| Thermal Dissipation | 31.94 W |
| Sound Emission (A-Weighted) | 45 dB(A) |
| Maximum Operating Temperature | 104°F (40°C) |
| Storage Temperature | 5°F (-15°C) - 122°F (50°C) |
