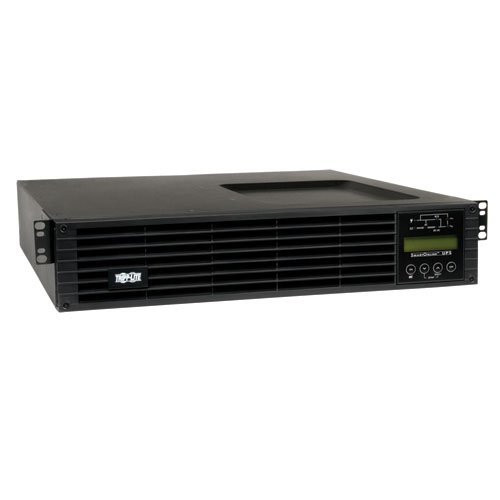

Tripp Lite UPS Smart Online 2200VA 1800W Rackmount 120V LCD USB DB9 2URM (SU2200RTXLCD2U)

(No reviews yet) Write a Review
SKU:
18061308
MPN:
su2200rtxlcd2u
Availability:
Usually ships the same or next business day. In stock at our CA, IL, PA, SC, TX warehouses.
Shipping:
Calculated at Checkout
Stock Update:
12/29/2025 06:39:26 AM PST
$1,883.06
Stock Update:
12/29/2025 06:39:26 AM PST

Description



This item is brand-new, factory sealed.

Tripp Lite Smart Online UPS systems offer high performance power protection ideal for critical server and network equipment in datacenters, computer rooms and network closets. Online, double-conversion Uninterruptible Power Supply (UPS) maintains perfectly regulated output power by continuously converting raw AC input to DC, then re-converting output back to AC. Fully regulated sine wave AC output with +/-2% voltage regulation powers network equipment continuously, even during severe brownouts and overvoltages, all without depleting UPS battery reserves. Maintains battery-derived AC output during power failures with zero transfer time. Extended runtime options available. Interactive LCD interface reports UPS operating mode, detailed UPS and site-power data, plus enables a variety of UPS setup and configuration options. Highly efficient operation in optional economy mode saves BTU heat output and energy costs. Network management interfaces support communications via USB, RS-232, contact-closure and optional SNMPWEBCARD network interface. Built-in DB9 port offers both enhanced RS-232 data and basic contact closure monitoring ability. HID-compliant USB interface enables integration with built-in power management and auto shutdown features of Windows and Mac OS X. Includes PowerAlert monitoring software and complete cabling. Emergency Power Off (EPO) interface. LED display reports UPS operating mode, line power availability, battery mode operation, inverter operation, ECO mode status and output power availability. LED/LCD display panel easily rotates for viewing in rackmount or tower configurations. Audible alarm with push-button momentary alarm-cancel and silent-mode LCD configuration options. Programmable self-test. Fault-tolerant auto-bypass mode. Battery independent restart. Field-replaceable, hot-swappable internal batteries and external battery packs. Output Volt Amp Capacity (VA)
2200 Output kVA capacity (kVA)
2.2 Output Watt Capacity (watts)
1800 Output kW capacity
1.8 Output power factor
0.82 Output Capacity Details
ON LINE MODE: Maximum output capacity ratings are reduced for some nominal voltage settings (127/120V 1800 watts / 115V 1620 watts / 110V 1530 watts / 100V 1440 watts). FREQUENCY REGULATION / CONVERSION MODE: Maximum output ratings are reduced in frequency regulation / conversion mode (127/120V 1260 watts / 115V 1134 watts / 110V 1071 watts / 100V 1008 watts) Crest Factor
3:1 Nominal Output Voltage(s) Supported
100V 110V 115V 120V 127V Nominal Voltage details
120V factory-default nominal voltage Frequency compatibility
50/60 Hz (auto-selectable) Supports 50 to 60 Hz and 60 to 50 Hz conversion Frequency compatibility details
ON LINE MODE: Output frequency is automatically configured to match nominal input frequency on startup Output matches input frequency when +/-5Hz of nominal Output is regulated to +/-0.05Hz when input frequency exceeds +/-5Hz of nominal. UPS switches to battery mode when input frequency is below 40Hz or above 70Hz. FREQUENCY REGULATION / CONVERSION MODE: Output is regulated to +/-0.05Hz of selected output frequency input is 40 to 70Hz UPS switches to battery mode when input frequency is below 40Hz or above 70Hz. BATTERY MODE: Output is regulated to +/-0.05Hz. Output voltage regulation (line mode)
+/- 2% Output voltage regulation (Economy line mode)
+/- 10% Output voltage regulation (Battery mode)
+/- 3% Built-in UPS output receptacles
6 5-15/20R outlet(s) 1 L5-20R outlet(s) Built-in controllable switched load banks
Two switchable three-outlet 5-15/20R load banks Output AC waveform (AC mode)
Pure Sine wave Output AC waveform (battery mode)
Pure Sine wave INPUT
Rated input current (at maximum load)
16A
Nominal Input Voltage(s) Supported
100V AC 110V AC 115V AC 120V AC 127V AC
Nominal input voltage description
120V factory default
UPS input connection type
5-20P
Input circuit breaker
30A
UPS Input cord length (ft.)
10
UPS Input cord length (m)
3
Recommended Electrical Service
20A 120V BATTERY
Full load runtime (minutes)
4 min. (1800w)
Half load runtime (minutes)
12 min. (900w)
Expandable battery runtime
Extended runtime supported via optional external battery packs
External battery pack compatibility
BP48V24-2U (limit 1)
Expandable runtime description
Some external battery configurations require the use of Tripp Lites External Battery Configuration Software, see manual for details
DC system voltage (VDC)
48
Battery recharge rate (included batteries)
Less than 3 hours recharge to 90%
Replacement battery cartridge (internal UPS battery replacement)
RBC94-2U
Battery Access
Front panel battery access
Battery replacement description
Hot-swappable, user replaceable batteries

Features

Package Contents:
  • SmartOnline SU2200RTXLCD2U 2000VA Rack/Tower UPS
  • USB Cable
  • DB9 RS232 Cable
  • Rack-mounting Hardware
  • Tower Support Stands
  • Safety Instructions
  • Quick Start Guide

    •

    Certifications & Standards:

    FCC Class A




    Environmentally Friendly:
    Yes



    Software Included:
    PowerAlert UPS Monitoring Software



    Energy Star:
    Yes



    Environmental Compliance:

    Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
    Restriction of Hazardous Substances (RoHS)



    Country of Origin:
    Philippines



    Specs

    Power Description
    Load Capacity (Watt)1800 W
    Input Frequency60 Hz
    Output Power Factor0.9
    Surge Energy Rating190 J
    Input Power Factor0.99
    Input Voltage120 V AC
    Output Voltage
    • 100 V AC
    • 110 V AC
    • 115 V AC
    • 120 V AC
    • 127 V AC
    Load Capacity (VA)2000 VA
    Waveform TypePure Sine Wave
    Output Frequency60 Hz
    Physical Characteristics
    Form FactorRack/Tower
    Weight (Approximate)61.51 lb
    Height3.4"
    Width17.3"
    Depth23.8"
    Rack Height2U
    Warranty
    Limited Warranty2 Year
    Controls/Indicators
    Status Indicators4 x status-indicating LEDs
    Battery Information
    Backup/Run Time (Full Load)7.70 Minute
    DC System Voltage72 V DC
    Replaceable BatteryYes
    Battery ChemistryLead Acid
    Hot SwappableYes
    Backup/Run Time (Half Load)20.20 Minute
    Typical Battery Recharge Time3 Hour
    Battery CharacteristicsValve-regulated
    Display & Graphics
    DisplayLCD
    General Information
    Brand NameTripp Lite series
    Manufacturer Website Addresshttp://www.eaton.com
    Marketing Information2kVA 1.8kW 120V Battery Backup Protects Equipment against Damage, Downtime and Data Loss
    This on-line double-conversion UPS system maintains perfect output by converting AC input to DC, then reconverting UPS output to fully regulated sine wave AC. Constant on-line operation completely isolates sensitive equipment from every power problem on the AC line. The SmartOnline® SU2200RTXLCD2U provides the highest level of power protection and battery backup for education, healthcare, military, government and other mission-critical IT applications where space is limited, but premium power reliability is essential.
    Reliable, Expandable Battery Backup Keeps You Operational Through Power Outages
    The field-replaceable, hot-swappable VRLA battery modules allow you to work through short power failures and give you enough time to safely save files and shut down your system in case of a prolonged blackout. Zero transfer time between on-line and battery modes maintains continuous operation of connected equipment without interruption or rebooting. Extra runtime is available by connecting up to four optional extended battery modules (BP72RT, sold separately).
    Optional LX Platform Network Management Card Allows Remote Access 24/7
    The WEBCARDLXE network interface (sold separately) enables full remote configuration and management, including load shedding, reboots of connected equipment and safe shutdowns. The IP-based Auto Probe feature ensures continuous network uptime by communicating with other network devices, detecting lost connectivity and automatically rebooting IT equipment. Optional EnviroSense2 modules (E2MT, E2MTDO and E2MTHDI, all sold separately) provide a variety of environmental monitoring and control options.
    NEMA Outlets Protect Your Connected Components
    One L5-20R and six 5-20R managed outlets provide connected equipment with pure sine wave AC output and allow you to monitor power consumption down to the outlet group level. Power provided by these outlets is filtered to protect connected equipment against damaging surges and line noise. Four 5-20R outlets are split evenly into two switchable load banks that let you reboot select components or shed non-critical loads to extend runtime for critical loads. A cooling fan helps protect equipment from overheating.
    Premium Protection from EMI/RFI Line Noise Helps Your Equipment Perform Better
    This UPS system filters out disruptive electromagnetic and radio frequency interference that can inflict hardware damage or data loss. This EMI/RFI filtering also helps your connected components perform better and last longer.
    Intuitive Front-Panel Interface for Convenient UPS Operation and Monitoring
    The two-line front-panel LCD monitoring screen features 10 selectable screens that allow quick access to a wide range of detailed UPS and site power information. LEDs show UPS status: a green light means utility power is on, an orange light means the UPS is in battery or bypass mode and a red light indicates an active alarm or fault. The control panel rotates to accommodate both rack-mount and tower configurations.
    Automatically Turns Back On After Power Is Restored
    Battery-independent restart ensures automatic UPS power-up without user interaction after lengthy power outages, even after a complete battery discharge.
    More from the Manufacturer
    Product TypeDouble Conversion Online UPS
    Product NameSmartOnline SU2200RTXLCD2U 2000VA Rack/Tower UPS
    ManufacturerEaton Corporation
    Manufacturer Part NumberSU2200RTXLCD2U
    Product ModelSU2200RTXLCD2U
    Product LineSmartOnline
    Technical Information
    Receptacle Type
    • NEMA 5-20R
    • NEMA L5-20R
    Receptacle Detail
    • 6 x NEMA 5-20R
    • 1 x NEMA L5-20R
    Bypass Switch
    • Automatic
    • Internal
    Energy SavingHigh efficiency economy mode operation; Individually controllable load banks
    Overload ProtectionYes
    PhaseSingle Phase
    Plug/Connector TypeNEMA 5-15P
    EMI/RFI Noise FilterYes
    Application/Usage
    • Education
    • Healthcare
    • Military
    • Government
    • IT Equipment
    • Mission Critical Equipment
    Emergency Power OFFYes
    Transfer Time0 ns
    Management
    Network ManagementSNMP
    Alarm
    • Remote Shutdown
    • UPS StartUp
    • Power Failure
    • Overload
    • UPS Fault
    • Low Battery
    Interfaces/Ports
    USBYes
    Serial PortYes
    Environmental Conditions
    Sound Emission47 dB
    Maximum Operating Temperature104°F (40°C)
    Minimum Operating Temperature32°F (0°C)
    Storage Temperature32°F (0°C) - 104°F (40°C)
    Maximum Operating Elevation9842.52 ft
