Tripp Lite 1440VA UPS Eco Green Battery Back Up AVR 120V USB Energy Star (222572)

This item is brand-new, factory sealed.

Energy-Saving 1440VA/900W UPS Battery Backup for PCs or Home Theater Systems
This 120V line-interactive AVR UPS system provides reliable battery backup and AC power protection against blackouts, brownouts, surges and line noise that can damage valuable electronics or destroy data. The 10-outlet UPS is ideal protection for your home office or media center components, including computers, routers, printers, NAS drives, HDTVs, Blu-ray players, game consoles, media players, DVRs and audio receivers.
Allows Time to Back Up Critical Files During a Blackout
Backup support allows you to work through short power failures, and gives you enough time to safely save files and shut down your system in case of a prolonged blackout. Backup time varies according to load, but the line-interactive UPS system should keep an energy-efficient desktop computer with LCD monitor powered as long as 90 minutes. During normal operation, incoming utility power keeps the UPS battery fully charged, so backup power will always be available. The hot-swappable internal batteries can be replaced by the user.
Connects Your Equipment to 10 NEMA 5-15R Outlets
Five 5-15R outlets provide both battery backup and surge protection for your computer, monitor and other crucial components. The other five 5-15R outlets are surge-protected only for printers, scanners and other non-essential equipment. Two outletsone battery/surge and one surge-onlyare spaced apart from the others to accommodate bulky transformers. Four are ECO outlets designed to save you money and protect the environment (see below).
ENERGY STAR-Certified to Help You Save Money and Protect the Environment
By meeting strict EPA efficiency guidelines, this ENERGY STAR-certified UPS system helps you save money and energy.OUTPUT
- Output Volt Amp Capacity (VA):
1440
- Output kVA Capacity (kVA) ):
1.44
- Output Watt Capacity (Watts):
900
- Nominal Output Voltage(s) Supported:
110V, 115V, 120V
- Nominal Voltage Details:
120v nominal output in battery mode
- Frequency Compatibility:
50 / 60 Hz
- Output Voltage Regulation (Battery Mode):
120V (+/- 5%)
- Output Receptacles:
(10) 5-15R
- Output Receptacle Details:
5 UPS battery supported outlets with surge suppression + 5 surge suppression-only outlets
- Output AC Waveform (AC Mode):
Sine wave
- Output AC Waveform (Battery Mode):
PWM sine wave
- Individually Controllable Load Bank:
No
INPUT
- Rated input current (Maximum Load):
12A
- Nominal Input Voltage(s) Supported:
120V AC
- UPS Input Connection Type:
5-15P
- Input Circuit Breakers:
15A
- UPS Input Cord Length (ft.):
6
- Recommended Electrical Service:
15A 120V
- Input Phase:
Single-Phase
BATTERY
- Full Load Runtime (min.):
3 min. (900w)
- Half Load Runtime (min.):
12 min. (450w)
- DC System Voltage (VDC):
24
- Battery Recharge Rate (Included Batteries):
7 hours from 10% to 90%
- Internal UPS Replacement Battery Cartridge:
Qty 2 RBC51
- Expandable Runtime:
No
VOLTAGE REGULATION
- Voltage Regulation Description:
Automatic voltage regulation (AVR) maintains line power operation during brownouts as low as 86V (60Hz operation) / 105V (50Hz operation)
- Undervoltage Correction:
Input voltages between 86 and 105 are boosted by 23% (60Hz operation only)
USER INTERFACE, ALERTS and CONTROLS

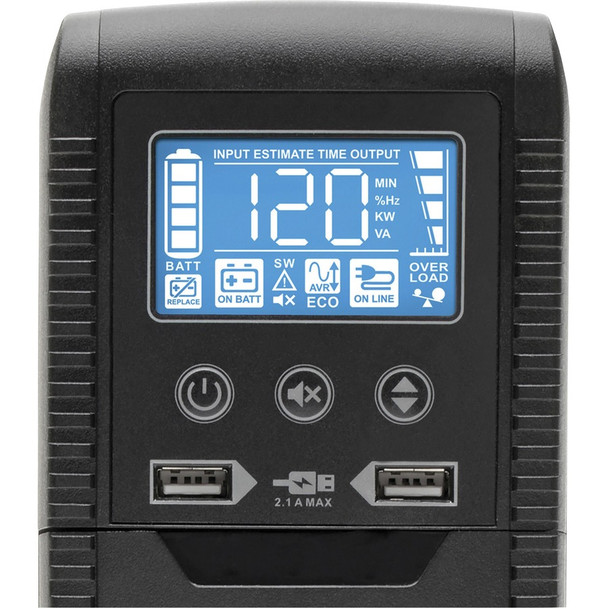

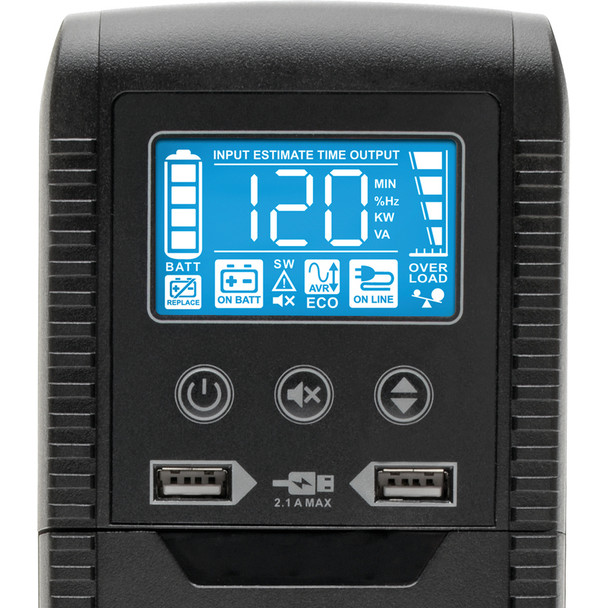

- Front Panel LCD Display:
LCD screen offers detailed UPS status information, configuration options and error message reporting, STATUS INFORMATION input voltage, output voltage, input frequency, output frequency, load in VA, load in watts, battery charge level (4 bar graph), estimated runtime remaining (minutes) and UPS operating mode, CONFIGURATION OPTIONS Eco-mode off/on, alarm disable, ERROR MESSAGES Replace battery, overload and critical fault (see manual for complete listing)
- Switches:
ON / OFF / TEST Button offers power control and self-test operation, MUTE Button enables alarm-cancel and silent-mode opeation, SELECT Button is used to toggle LCD condition displays
- Alarm Cancel Operation:
Temporary alarm cancel and silent-mode operation is available using front-panel MUTE button (see manual)
- Audible Alarm:
Audible alarm indicates low battery, fault, overload and replace battery condition warnings
SURGE / NOISE SUPPRESSION
- UPS AC Suppression Joule Rating:
316
- UPS AC Suppression Response Time:
Instantaneous
- UPS Dataline Suppression:
1 line TEL/DSL (1 in / 1 out), 10/100Base T Ethernet
- EMI / RFI AC Noise Suppression:
Yes
PHYSICAL
- Installation Form Factors Supported with Included Accessories:
Tower
- Primary Form Factor:
Tower
- Cooling Method:
Fan
- UPS Housing Material:
ABS
ENVIRONMENTAL
- Operating Temperature Range:
+32 to +104 degrees Fahrenheit / 0 to +40 degrees Celsius
- Storage Temperature Range:
+5 to +122 degrees Fahrenheit / -15 to +50 degrees Celsius
- Relative Humidity:
Up to 95%, non-condensing
- AC Mode BTU / Hr. (Full Load):
81
- AC Mode Efficiency Rating (100% Load):
97%
COMMUNICATIONS
- Communications Interface:
USB (HID enabled)
- Network Monitoring Port Description:
Supports detailed monitoring of UPS and site power conditions
- PowerAlert Software:
For local monitoring via the UPSs built-in communication ports, download PowerAlert Local software at http://www.tripplite.com/poweralert
- Communications Cable:
USB cable included
- WatchDog Compatibility:
Supports Watchdog application, OS and hard-reboot restart options for remote applications
LINE / BATTERY TRANSFER
- Transfer Time:
6 milliseconds
- Low Voltage Transfer to Battery Power (Setpoint):
86V during 60Hz operation (105V during 50Hz operation)
- High Voltage Transfer to Battery Power (Setpoint):
142V
SPECIAL FEATURES
- Green Energy-Saving Features:
Greater than 95% efficiency - GREEN UPS
CERTIFICATIONS
- UPS Certifications:
ENERGY STAR Qualified, Meets FCC Part 15 Category B (EMI), Tested to CSA (Canada), Tested to NOM (Mexico), Tested to UL1778 (USA)
- UPS Certification Details:
UL1778: 2014 5th EDITION, CAN/CSA-C22.2 NO. 107.3:2014 3rd EDITION
Package Includes
ECO1500LCD ECO LCD 120V 1440VA 900W Line-Interactive UPS USB cable
Owners manual
Item Dimension(L inchxW inchxH inch)
20 x 8 x 15
Weight
27.94lb
Warranty Information
3-year limited warranty

Package Contents:

• ECO1500LCD 1500VA Tower UPS
• USB Cable
• Owner's Manual
