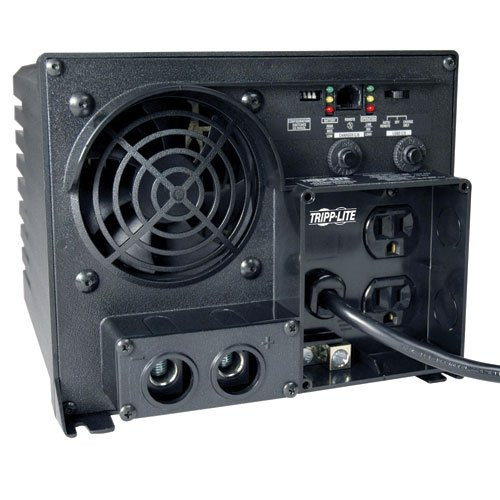

Tripp Lite 750W APS 12VDC 120V Inverter / Charger w/ Auto Transfer Switching ATS 2 Outlets (APS750)
- SKU:
- 18054139
- MPN:
- aps750
- Availability:
- Usually ships in 1-2 business days. In stock at our OK warehouse.
- Shipping:
- Calculated at Checkout
- Stock Update:
- 04/10/2026 12:23:19 AM PST
- Stock Update:
- 04/10/2026 12:23:19 AM PST
Description
This item is brand-new, factory sealed.
Tripp Lite's APS750 DC-to-AC inverter with automatic line-to-battery transfer and integrated charging system serves as an extended run UPS, a standalone power source or an automotive inverter. Supplies up to 750 watts of continuous 120V AC power to 2 AC outlets from any 12V battery or automotive DC source. OverPower inverter output feature temporarily provides up to 150% of the continuous output for 1-60 minutes and DoubleBoost inverter output feature delivers up to 200% of the continuous output for up to 10 seconds, providing the extra power needed to cold start heavy-duty tools and motorized equipment. When AC cable is connected to a live wall socket, commercial power passes through to connected equipment and the battery set is recharged via 3 stage, 20 amp charging system. In UPS mode, the APS system responds to blackouts and voltage fluctuations with a near instantaneous automatic transfer to battery-derived AC output. Includes a set of high current DC input terminals for simple installation (user supplies batteries and cabling - see owner's manual for recommendations). Passes sine wave utility or generator power during battery charging and UPS line power operation, plus efficient PWM sine wave AC output in inverter and UPS backup modes. Reliable large transformer design, with frequency control powers resistive electronic loads or large inductiv
Package Contents:
- PowerVerter APS 750W Inverter/Charger
- Instruction Manual with Warranty Information
Features
Additional Information:
- Frequency control for operating stability
- AC surge suppression not included
- Material of construction: Polycarbonate
- Low voltage transfer to battery power: User configurable to 75V, 85V, 95V & 105V
- High voltage transfer to battery power: User configurable to 135V, 145V
- Coated internal circuit boards offer continuous operation in humid environments
- Advanced 20 amp, 3-stage battery charger and selector switch for gel or wet cell batteries
- Functions as an extended run UPS system, standalone power source and automotive inverter
- RJ-45 port allows connection of APS/PowerVerter Remote Switch (manuf# APSRM4)
- Switch allows user to select between off, auto-invert/remote and charge-only settings
- Configuration switches to allow the user to select the high and low voltage
- Mounting slots enable permanent placement of inverter on any horizontal surface
- AC input cord and auto-transfer to enable battery charging and automatic UPS support for blackouts & brownouts
Environmental Compliance:
Restriction of Hazardous Substances (RoHS)
Country of Origin:
China
Specs
| Power Description | |
| Maximum Frequency | 60 Hz |
| Continuous Power Load | 750 W |
| Input Voltage Range | 10 V DC - 15 V DC |
| Input Voltage |
|
| Peak Power Load | 1500 W |
| Output Voltage | 120 V AC |
| Waveform Type | Pulse-width Modulated Sine Wave |
| Physical Characteristics | |
| Weight (Approximate) | 17 lb |
| Product Color | Black |
| Height | 7" |
| Color Family | Black |
| Width | 8.8" |
| Depth | 9" |
| Warranty | |
| Limited Warranty | 1 Year |
| General Information | |
| Brand Name | Tripp Lite series |
| Manufacturer Website Address | http://www.eaton.com |
| Marketing Information | The APS750 750W PowerVerter APS 12V DC 120V AC Inverter/Charger is a reliable power source for a wide variety of equipment ranging from power tools and pumps to portable lighting and computer equipment in heavy-load conditions. With no fumes, fuel or excess noise, it's an excellent alternative to generator power. The DC-to-AC inverter features an automatic line-to-battery transfer switch and integrated charging system that allow it to work as a vehicle inverter, standalone AC power source or extended-run UPS. It delivers 750W of continuous power, 1125W up to one hour, or 1500W of peak power up to 10 seconds during equipment startup or cycling. An automatic overload detector, cooling fan and resettable AC circuit breakers protect the unit from damage. Designed for easy installation in RVs, over-the-road trucks, fleet vehicles and emergency vehicles, the APS750 converts stored power from any 12V battery or automotive DC source to safe, stable, computer-grade AC power for unlimited runtime. When hardwired to an external 120V AC source, the unit keeps the user-supplied battery charged via a three-stage 20A charging system while simultaneously delivering AC power to connected equipment. When used as a UPS, the APS750 responds to blackouts and brownouts with an automatic, instantaneous transfer to battery-derived AC output. LEDs on the unit indicate AC/DC operational modes, overload status, DC voltage level, shutdown status and system fault status. More from the Manufacturer |
| Product Type | Power Inverter |
| Product Name | 750W PowerVerter APS 12VDC 120V Inverter/Charger |
| Manufacturer | Eaton Corporation |
| Manufacturer Part Number | APS-750 |
| Product Model | APS750 |
| Product Series | APS |
| Product Line | PowerVerter |
| Technical Information | |
| Plug/Connector Type | NEMA 5-15P |
| Receptacles | 2 x NEMA 5-15R |
| Protection Type | Overload Protection |
