Tripp Lite DisplayPort to HDMI Over Cat6 Extender Kit w KVM Support 4K@60Hz (b127a-1a1-bdbh)

This item is brand-new, factory sealed.

• DISPLAYPORT TO HDMI EXTENDER KIT IDEAL FOR DIGITAL SIGNAGE IN SCHOOLS AND LECTURE HALLS: This complete transmitter and receiver system is recommended for video presentations in conference rooms, schools, trade shows, meeting facilities, houses of worship, retail settings, hotels and other digital signage applications where the source and display are farther apart than conventional A/V cables allow.
• EXTENDS A 4K A/V TRANSMISSION UP TO 230 FT: The B127A-1A1-BDBH extends 4K signals from a DisplayPort source device to an HDMI display up to 230 feet away via user-supplied Cat6 cabling. By adding a Tripp Lite B127A-010-H HDMI repeater or B127A-110-BH transceiver (sold separately) to the application, you can extend the signal up to 400 or 460 feet, respectively.
• TRANSMITS CRYSTAL-CLEAR 4K VIDEO WITH MULTI-CHANNEL AUDIO, HDR AND 4:4:4 COLOR: The B127A-1A1-BDBH supports Ultra HD resolutions up to 3840 x 2160 (4K x 2K) at 60 Hz, as specified by HDMI 2.0, with full, rich uncompressed DTS-HD, Dolby TrueHD and 7.1-channel digital audio. HDCP 2.2 compliance allows you to stream 4K and Netflix content with no complications. This extender kit also supports 4:4:4 chroma subsampling for top-level PC gaming or using your HDTV as a PC monitor. Built-in equalization allows you to fine-tune the image quality at the remote display.
• BUILT-IN POC TECHNOLOGY LETS YOU AVOID BULKY EXTERNAL POWER BRICKS: After you connect the included external power supply to either the transmitter or receiver, Power over Cable (PoC) technology powers the opposite unit over Cat6 cable. LEDs on both the transmitter and receiver will light up to indicate the system is receiving power and a signal is being transmitted. PoC lets you avoid the hassle of a bulky power brick and gives you the freedom to place one unit where needed without worrying about finding a nearby AC outlet.

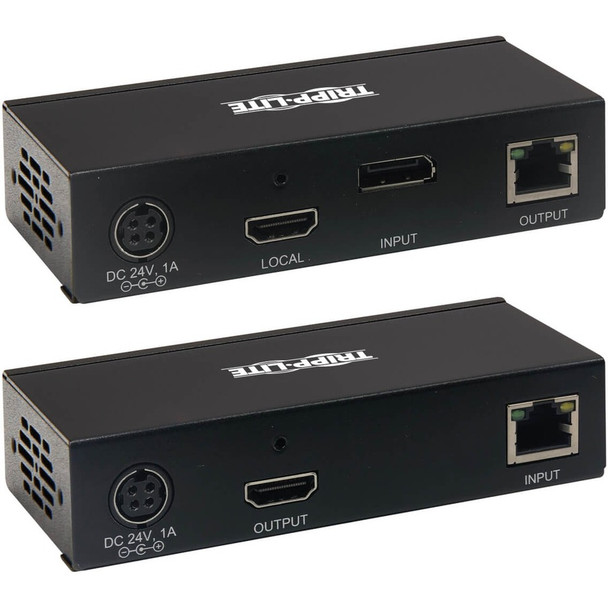

• PLUG AND PLAY OPERATION FOR QUICK SETUP AND IMMEDIATE USE: The included transmitter and receiver units work right out of the box with no software required. Mounting hardware is included for installing both units on a wall, pole or 19-inch rack. Connect the transmitter to the source with a user-supplied DisplayPort cable (such as Tripp Lites P580-Series). Then connect the receiver to the display with a user-supplied HDMI cable (such as Tripp Lites P568- or P569-Series). Finally, connect the two units with user-supplied Cat6 patch cable (such as Tripp Lite N202-Series).

• Package Dimensions: 10.28 x 6.42 x 2.2 inches
• Item Weight: 1.87 pounds

DisplayPort to HDMI Extender Kit Ideal for Digital Signage or Displaying Video in Schools or Trade Show Booths This complete transmitter and receiver system is recommended for video presentations in conference rooms, schools, trade shows, meeting facilities, houses of worship, retail settings and digital signage applications where the source and display are farther apart than conventional A/V cables allow. The B127A-1A1-BDBH extends 4K video and stereo audio signals from a DisplayPort source to an HDMI display up to 230 feet away via user-supplied Cat6 cabling. USB 1.1 ports on the receiver end allow for the connection of a keyboard and mouse. The maximum transmission distance can be extended to a total of 400 ft. when used with Tripp Lite's B127A-010-H signal booster. Transmits Crystal-Clear 4K HDMI Video with Multi-Channel Audio and 4:4:4 Color The B127A-1A1-BDBH supports Ultra High Definition (UHD) video resolutions up to 4K x 2K (3840 x 2160) at 60 Hz, as specified by HDMI 2.0, with full, rich uncompressed DTS-HD, Dolby TrueHD and 7.1-channel digital audio. Built-in equalization automatically fine-tunes the image quality at the remote display with no time-consuming manual fiddling needed. Its compatible with HDCP 2.2 and EDID. It also supports 4:4:4 chroma subsampling for top-level PC gaming or using your HDTV as a PC monitor. Built-In PoC Technology Provides Receiver Power to Avoid Bulky External Power Bricks Built-in bi-directional Power over Cable (PoC) technology powers the transmitter or receiver over Cat6 cable opposite from the connected external power supply. Green and orange LEDs on both the transmitter and receiver will light up to indicate the system is receiving power and a signal is being transmitted. Plug-and-Play Operation for Quick Setup and Immediate Use The included transmitter and receiver units work right out of the box with no software required. Mounting hardware is included for installing the units on walls, poles or 19-inch racks. Connect the DisplayPort transmitter to the source with a user-supplied DisplayPort cable and the receiver to the display with a user-supplied HDMI (such as Tripp Lites P568- or P569-Series of HDMI cable and P580-Series of DisplayPort cable). Then, connect the two units using Cat6 patch cable (such as Tripp Lite N202-Series cable). Connect an optional display to the transmitters local HDMI output to monitor the image connected to the receiver up to 125 feet away. TAA-Compliant for GSA Schedule Purchases The B127A-1A1-BDBH is compliant with the Federal Trade Agreements Act (TAA), which makes it eligible for GSA (General Services Administration) Schedule and other federal procurement contracts.

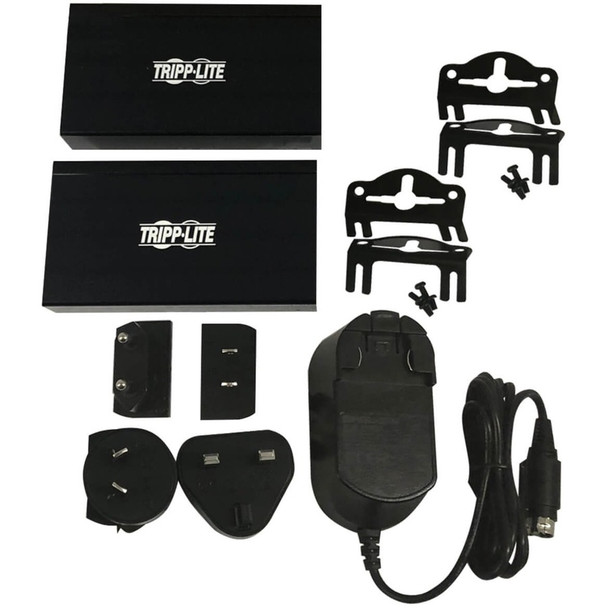

• 1 x Transmitter
• 1 x Receiver
• External Power Supply (Input: 100-240V, 50/60 Hz, 0.6A; Output: 24V 1A)
• 4 x International Plug Adapters (North America, Europe, U.K. and Australia)
• Mounting Hardware
• Owner's Manual
