Tripp Lite HDMI Over Cat6 Extender Kit w Wall Plate Receiver 4K60Hz HDR PoC (b127a-1a1-bhfh)

This item is brand-new, factory sealed.

• HDMI extender kit with transmitter & receiver extends 4K signal via Cat6 cable to HDMI display up to 230 feet (70.1 m) away. Combines with optional B127A-010-H repeaters to extend signal to 400 feet.
• Supports 4K @ 60 Hz video resolutions (4:4:4) as specified in HDMI 2.0. Carries High Dynamic Range (HDR) signals for rich contrast and expanded color accuracy.
• Power over Cable (PoC) technology provides power to receivers via Cat6 cable. Transmitters local port shows you the 4K image being displayed at the other end.
• Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases.
• 1-year limited warranty

• Package Dimensions: 13.86 x 6.46 x 2.17 inches
• Item Weight: 2.27 pounds

HDMI Extender Kit Ideal for Digital Signage in Schools, Restaurants and Lecture Halls This complete transmitter and receiver system is recommended for video presentations in conference rooms, schools, trade shows, meeting facilities, houses of worship, retail settings, hotels and other digital signage applications where the source and display are farther apart than conventional A/V cables allow. The metal transmitter box and the single-gang metal wall plate receiver with metal back cover blend perfectly into the room dcor. Extends a 4K A/V Transmission up to 230 ft....or Even Farther The B127A-1A1-BHFH extends 4K signals from an HDMI source device to an HDMI display up to 230 feet (70.1 meters) away via user-supplied Cat6 cabling. Bi-directional IR remote control lets you operate the source from the display end of the installation. By adding a Tripp Lite B127A-010-H HDMI repeater (sold separately) to the application, you can extend the signal up to 400 feet (121.9 meters). Transmits Crystal-Clear 4K Video with Multi-Channel Audio, HDR and 4:4:4 Color The B127A-1A1-BHFH supports Ultra HD resolutions up to 3840 x 2160 (4K x 2K) at 60 Hz, as specified in HDMI 2.0, with 7.1-channel surround sound. High Dynamic Range (HDR) provides a wide range of vibrant colors with richer contrast, brighter whites and deeper blacks that pop on your 4K display. HDCP 2.2 compliance allows you to stream 4K and Netflix content with no complications. This extender kit also supports 4:4:4 chroma subsampling for top-level PC gaming or using your HDTV as a PC monitor. Built-in equalization automatically fine-tunes the image quality at the remote display. Local HDMI Port on Transmitter Supports 4K @ 60 Hz Resolution To monitor the video signal being extended to the receiver, connect a 4K display to the transmitter's local HDMI port with a user-supplied HDMI cable. This port does not support multi-resolution capabilities, so the connected monitor must also support 4K/60 Hz to function properly. Built-In PoC Technology Provides Power to Avoid Bulky External Power Bricks After you connect the included external power supply to the transmitter, Power over Cable (PoC) technology powers the receiver over Cat6 cable. LEDs on both the transmitter and receiver will light up to indicate the system is receiving power and a signal is being transmitted. PoC lets you avoid the hassle of a bulky power brick and gives you the freedom to install the receiver where best needed without worrying about finding a nearby AC outlet. Plug-and-Play Operation for Quick Setup and Immediate Use The included transmitter and receiver units work right out of the box with no software required. Connect the transmitter to the source with a user-supplied HDMI cable (such as Tripp Lite's P568- or P569-Series). Then, connect the receiver to the display with another user-supplied HDMI cable. Finally, connect the two units with user-supplied Cat6 patch cable (such as Tripp Lite N202-Series). Mounting hardware is included for both units. TAA-Compliant for GSA Schedule Purchases The B127A-1A1-BHFH is compliant with the Federal Trade Agreements Act (TAA), which makes it eligible for GSA (General Services Administration) Schedule and other federal procurement contracts.

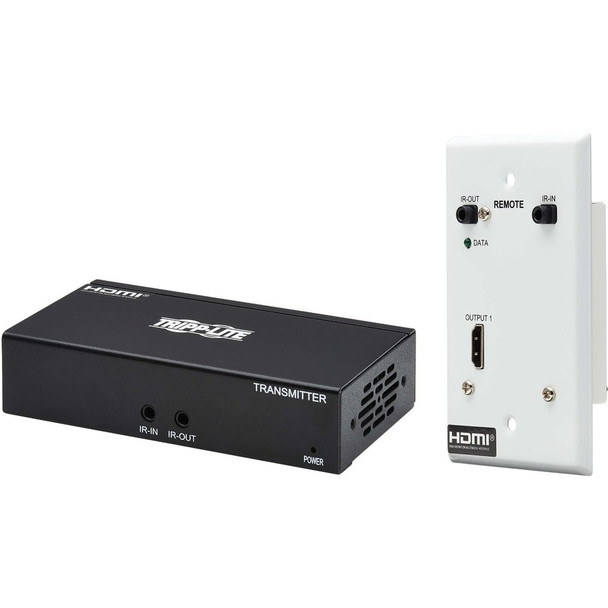

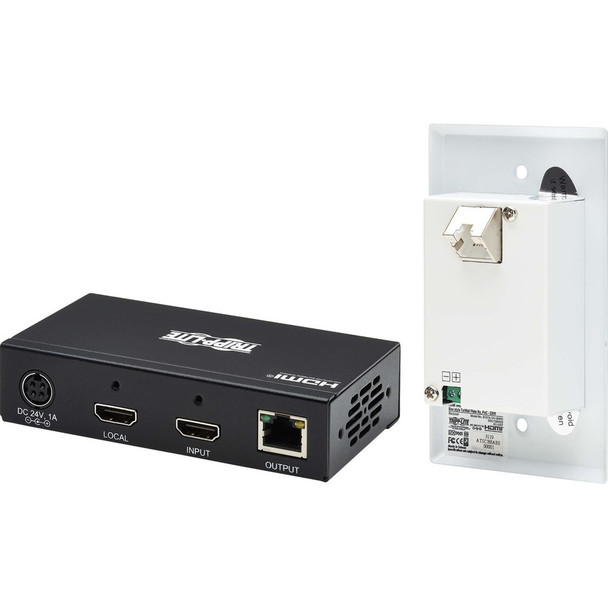

• 1 x Box transmitter
• 1 x Wall plate receiver
• External power supply (Input: 100-240V, 50/60 Hz, 0.6A; Output: 24V 1A)
• 4 x International plug adapters (North America, Europe, U.K. and Australia)
• IR-In cable
• IR-Out cable
• Mounting Hardware
• Owner's Manual
