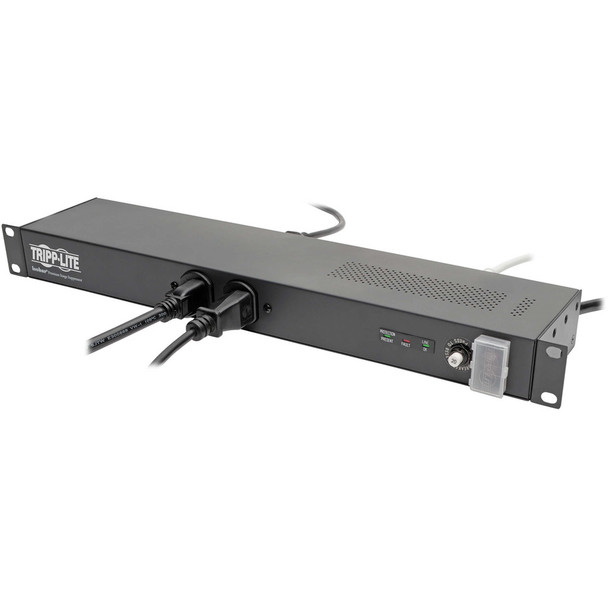

Tripp Lite Isobar Surge Protector Rackmount 20A 12 Outlet 15' Cord 1URM (IBAR12-20T)
- SKU:
- 18272137
- MPN:
- ibar12-20t
- Availability:
- Out of stock
- Stock Update:
- 12/05/2025 05:22:49 AM PST
- Stock Update:
- 12/05/2025 05:22:49 AM PST
Description
This item is brand-new, factory sealed.
Tripp Lite's IBAR12-20T offers network-grade surge and noise suppression in a versatile all-metal multi-mount cabinet with L5-20P twist-lock input plug and 20-amp capacity. Detachable mounting flanges are configurable for rackmount, wallmount and under-counter installation. Uses only 1 rack space (1U) when installed in any 19 inch EIA standard rack. Features network grade AC surge suppression with EMI/RFI noise filtering. Outlets are arranged in exclusive isolated filter banks to limit noise interaction among connected items. Includes 12 outlets (2 front mounted 15-amp/10 rear mounted 20- amp), 15 ft. power cord and power switch. Diagnostic LEDs indicate AC present, line fault and protection status.PLUG/OUTLETS: Input: NEMA L5-20P (twist lock)/Output: 2 NEMA5-15R (front) & 10 NEMA5-20R (rear)ELECTRICAL: 120V AC, 50/60Hz, 20A (Requires NEMA L5-20R wall receptacle)SUPPRESSION: AC: 140V RMS Clamping/1280 joules/60,000 ampsFORMAT: Supports 19 in. rackmount (uses 1 rack space/1U), wallmount, under-counter and more
Package Contents:
Features
- IBAR12-20T
- IBAR12-20T Surge Suppressor
- Warranty information
- Instruction manual
Certifications & Standards:
UL1449 (UR status), UL1283, cUL, Exceeds IEEE 587 category A&B specifications
Additional Information:
- Versatile all-metal cabinet with detachable mounting flanges allows rackmount, wallmount, undercounter and other creative mounting options
- Uses one rack space (1U) in standard 19 inch rack ("zero U" mounting possible in many racks)
- 1280 joules / 60,000 amp network-grade AC surge suppression with EMI/RFI filtering

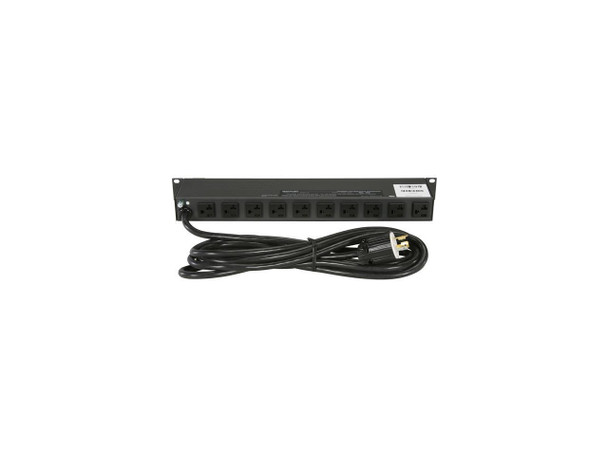

- 12 output receptacles outlets (2 front mounted NEMA 5-15R / 10 rear mounted NEMA 5-20R)
- 15 foot AC cord with NEMA L5-20P straight-in plug connection
- Diagnostic LEDs confirm proper wiring and suppressor operation
- Front panel switch controls power to all outlets
- 20 amp electrical capacity with circuit breaker 120VAC, 50/60Hz electrical compatibility
- $25,000 Ultimate Lifetime Insurance (USA & Canada Only)
- Lifetime product warranty
Compatibility:
TYPICAL APPLICATIONS: Ideal for the protection of sensitive electronic equipment in 19 inch rackmount, wallmount and under-counter applications, such as internetworking equipment, PC systems, telecommunications, audio / video, security, sound reinforcement and more.
Country of Origin:
Philippines
Specs
| Power Description | |
| Surge Energy Rating | 3840 J |
| Input Voltage | 120 V AC |
| Output Voltage | 120 V AC |
| Maximum Line Current | 20 A |
| Physical Characteristics | |
| Weight (Approximate) | 5.40 lb |
| Power Cord/Cable Length | 15 ft |
| Height | 1.8" |
| Width | 17.5" |
| Depth | 4" |
| Warranty | |
| Limited Warranty | Lifetime |
| Controls/Indicators | |
| Status Indicators | <li>Line fault</li> <li>Line OK</li> <li>Protection present</li> |
| General Information | |
| Brand Name | Tripp Lite series |
| Manufacturer Website Address | http://www.eaton.com |
| Marketing Information | Tripp Lite's IBAR12-20T offers network-grade surge and noise suppression in a versatile all-metal multi-mount cabinet with L5-20P twist-lock input plug and 20-amp capacity. Detachable mounting flanges are configurable for rackmount, wallmount and under-counter installation. Uses only 1 rack space (1U) when installed in any 19 inch EIA standard rack. Features network grade AC surge suppression with EMI/RFI noise filtering. Outlets are arranged in exclusive isolated filter banks to limit noise interaction among connected items. Includes 12 outlets (2 front mounted 15-amp/10 rear mounted 20- amp), 15 ft. power cord and power switch. Diagnostic LEDs indicate AC present, line fault and protection status. More from the Manufacturer |
| Product Type | Surge Suppressor/Protector |
| Product Name | IBAR12-20T |
| Manufacturer | Eaton Corporation |
| Manufacturer Part Number | IBAR12-20T |
| Technical Information | |
| Plug/Connector Type | Yes |
| Receptacles | 12 x NEMA 5-20R |
| Protection Type | Surge |
