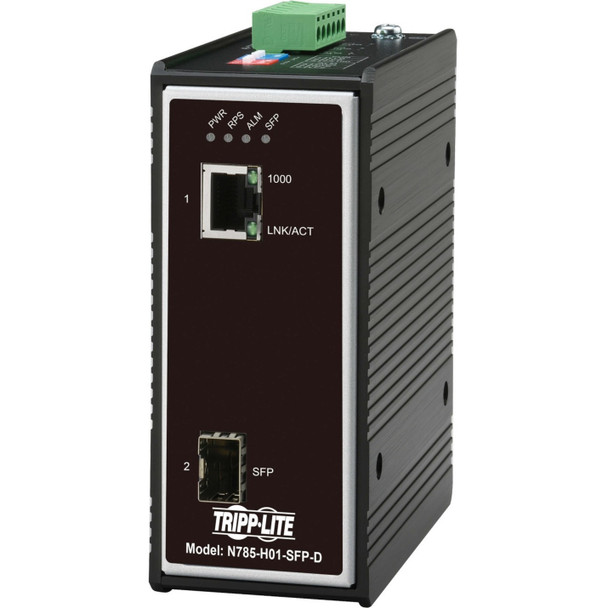

Tripp Lite N785-I01-SFP-D Transceiver/Media Converter

This item is brand-new, factory sealed.

Tripp Lite Industrial Heavy-Duty Network Copper Ethernet to Fiber Optic SFP Transceiver Media Converter Extender, SFP to RJ45, 10/100/1000 Mbps, IP30 House, DC Power, 2-Year Warranty (N785-I01-SFP-D)

• EXTENDS NETWORK CONNECTION OVER FIBER OPTIC CABLE: Extends 10/100/1000 Mbps Gigabit Ethernet network connection over fiber optic cable using your choice of SFP transceiver. Automatic MDI/MDI-X configuration connects devices without crossover cabling.
• MONITOR YOUR INSTALLATION: LEDs indicate connection, statuses, and data transfer speed. Local Loop Back (LLB) functions ensure copper and fiber cables have been correctly installed. DIP switches control each function and turn them on or off.
• BUILT TO WITHSTAND INDUSTRIAL STRENGTH HAZARDS: Operating temperature range of -40 to 75C or -40 to 167F. Protected from electrostatic discharge (ESD), radio frequency interference (RFI) and power surges. DIN mounting hardware included.
• COMPLIANT PRODUCTS FOR GOVERNMENT BUSINESSES: Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases.
• RELIABLE PRODUCT FULLY BACKED AND SUPPORTED: This product is covered by a 2-Year Limited Warranty and is supported by Tripp Lite's Chicago-based expert technical support team over phone and email.

• Brand: Tripp Lite
• Item Weight: 1.32 pounds
• Package Dimensions: 9.17 x 7.2 x 2.44 inches
• Manufacturer: TRIPP LITE

CUSTOMIZE A NETWORK EXTENSION OVER FIBER OPTIC CABLE: This network media converter works with a variety of SFP transceivers to convert a copper Gigabit Ethernet signal to fiber optic and extend it to a second network device. The customizable SFP port supports both singlemode and multimode transceivers, allowing your network connection to reach hubs, switches and other devices located farther away than copper cabling's 100-meter limit. Auto-negotiation and automatic MDI/MDI-X configuration seamlessly connect devices without crossover cabling. MONITOR YOUR INSTALLATION WITH LINK FAULT SIGNALING AND LOOP BACK FUNCTIONS: Determine the health of your network connection via the Link Fault Signaling (LFS) and Line Loop Back (LLB) functions. The LFS LED indicates when a copper or fiber cable has been severed or another cause of disruption in service has occurred. The LLB diagnostic test ensures copper and fiber cables have been correctly installed. Use the DIP switches to control each function or turn them on or off. LEDS INDICATE INSTALLATION PERFORMANCE AND DIAGNOSTIC FUNCTIONS: Easy-to-read LEDs on the side of the unit indicate essential status information, including network speed and connection, LFS diagnostics and unit power. The included 20-57VDC terminal block provides primary and secondary power inputs. PROTECTIVE METAL HOUSING BUILT TO WITHSTAND A VARIETY OF HAZARDS: The IP30 industrial-grade aluminum case is protected from entry by tools, wires and other solid objects greater than 2.5 millimeters in diameter. It can also operate in extreme temperatures ranging from -40 to 75 degrees Celsius (-40 to 167 degrees Fahrenheit). It is protected from electrostatic discharge (ESD), radio frequency interference (RFI) and power surges. Hardware is included for DIN mounting. TAA-COMPLIANT FOR GSA SCHEDULE PURCHASES: The N785-I01-SFP-D is compliant with the Federal Trade Agreements Act (TAA), which makes it eligible for GSA (General Services Administration) Schedule and other federal procurement contracts.

Package Contents:

• N785-I01-SFP-D Transceiver/Media Converter
• SFP Connector Cap
• RJ45 Connector Cap
• Terminal Block (20-57VDC)
• DIN Rail Kit
• Quick Start Guide
