Tripplite

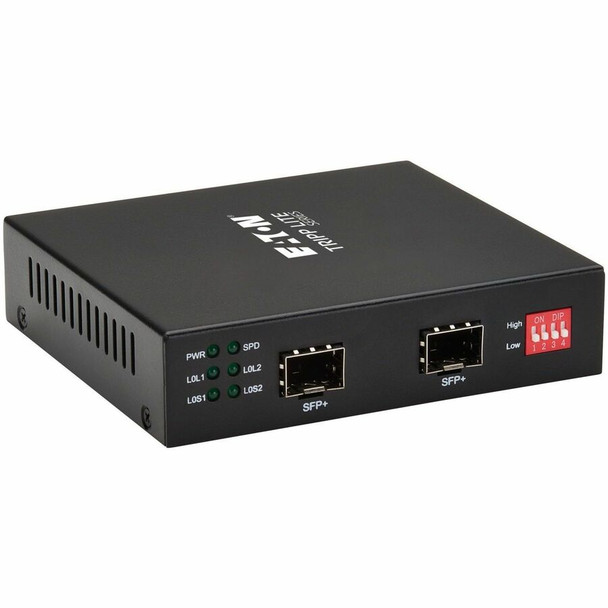

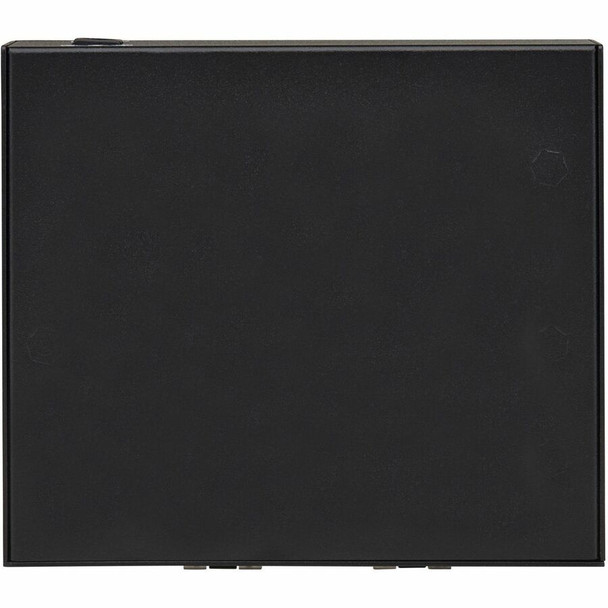

Tripplite N786-MDC-SFPSFP 10 Gigabit Sfp Plus To Sfp Plus Fiber Converter
- SKU:
- 21332914
- MPN:
- n786-mdc-sfpsfp
- Availability:
- Usually ships in 2-3 business days. In stock at our CA, IL warehouses.
- Shipping:
- Calculated at Checkout
- Stock Update:
- 01/25/2026 03:38:45 AM PST
- Stock Update:
- 01/25/2026 03:38:45 AM PST
Description
This item is brand-new, factory sealed.
Customizes Your Network Extension over Fiber Optic Cable
This network mode converter works with a variety of SFP and SFP+ transceivers to convert a multimode fiber signal to a singlemode fiber optic signal and extend it to a second network device. The mode conversion allows your network connection to reach hubs, switches and other devices located up to 80 kilometers (50 miles) away. The N786-MDC-SFPSFP is ideal for network engineers migrating toward higher-density data centers.
LEDs Indicate Installation Performance and Diagnostic Functions
Easy-to-read LEDs on the side of the mode converter indicate essential status information, including network speed and connection, signal diagnostics and unit power. LEDs indicate when a fiber cable has been severed or another cause of disruption in service has occurred. DIP switches on the unit allow changing from 1.25-8.5 Gbps speeds to 10.3 Gbps speeds based on your installation needs.
Protective Metal Housing Built to Withstand a Variety of Hazards
The rugged metallic case is designed to operate in temperatures ranging from -20 to 60 degrees Celsius (-4 to 140 degrees Fahrenheit).
Flexible to Fit Your Network Needs
Not only does the N786-MDC-SFPSFP support SFP and SFP+ transceivers, as well as DDM functionality, it also supports IEEE 802.3ab 1000Base-Tx and IEEE 802.3z 1000Base-Fx protocols. You can easily hot-swap transceivers and cabling, so no system shutdown is necessary during routine maintenance.
Package Contents:
- N786-MDC-SFPSFP Fiber Optic Mode Converter
- External power supply (Input: 100-240V, 50/60 Hz, 0.35A; Output: 12V 1A) with 4.5 ft. (1.4 m) cord
- 4 x International plug adapters (North America, Europe, U.K., Australia)
- Quick Start Guide
Features
- N786-MDC-SFPSFP Fiber Optic Mode Converter
- External power supply (Input: 100-240V, 50/60 Hz, 0.35A; Output: 12V 1A) with 4.5 ft. (1.4 m) cord
- 4 x International plug adapters (North America, Europe, U.K., Australia)
- Quick Start Guide
Environmental Certification:
T?V Rheinland Green Product
Environmentally Friendly:
Yes
Application/Usage:
Fiber Optic
Network
Hub
Switch
Data Center
Environmental Compliance:
Restriction of Hazardous Substances (RoHS)
Waste Electrical and Electronic Equipment Directive (WEEE)
Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
Specs
| Power Description | |
| Power Source | AC Adapter |
| Input Voltage |
|
| Output Voltage | 12 V |
| Input Current | 350 mA |
| Physical Characteristics | |
| Product Material | Metal |
| Weight (Approximate) | 1.88 lb |
| Product Color | Black |
| Height | 0.9" |
| Color Family | Black |
| Width | 2.9" |
| Depth | 4.3" |
| Material Details | <p>Metal Shell</p> |
| Warranty | |
| Limited Warranty | 2 Year |
| General Information | |
| Brand Name | Tripp Lite series |
| Manufacturer Website Address | http://www.eaton.com |
| Marketing Information | Customizes Your Network Extension over Fiber Optic Cable This network mode converter works with a variety of SFP and SFP+ transceivers to convert a multimode fiber signal to a singlemode fiber optic signal and extend it to a second network device. The mode conversion allows your network connection to reach hubs, switches and other devices located up to 80 kilometers (50 miles) away. The N786-MDC-SFPSFP is ideal for network engineers migrating toward higher-density data centers. LEDs Indicate Installation Performance and Diagnostic Functions Easy-to-read LEDs on the side of the mode converter indicate essential status information, including network speed and connection, signal diagnostics and unit power. LEDs indicate when a fiber cable has been severed or another cause of disruption in service has occurred. DIP switches on the unit allow changing from 1.25-8.5 Gbps speeds to 10.3 Gbps speeds based on your installation needs. Protective Metal Housing Built to Withstand a Variety of Hazards The rugged metallic case is designed to operate in temperatures ranging from -20 to 60 degrees Celsius (-4 to 140 degrees Fahrenheit). Flexible to Fit Your Network Needs Not only does the N786-MDC-SFPSFP support SFP and SFP+ transceivers, as well as DDM functionality, it also supports IEEE 802.3ab 1000Base-Tx and IEEE 802.3z 1000Base-Fx protocols. You can easily hot-swap transceivers and cabling, so no system shutdown is necessary during routine maintenance. |
| Product Type | Fiber Optic Mode Converter |
| Product Name | N786-MDC-SFPSFP Fiber Optic Mode Converter |
| Manufacturer | Eaton Corporation |
| Manufacturer Part Number | N786-MDC-SFPSFP |
| Product Model | N786-MDC-SFPSFP |
| Packaged Quantity | Box |
| Technical Information | |
| Features |
|
