Tripp Lite PDU Single Phase Basic 120V Outlets 13 5-15R 5-15P 15ft cord 1U RM (PDU1215)
(No reviews yet)
Write a Review
- SKU:
- 18128610
- MPN:
- pdu1215
- Availability:
- Usually ships the same or next business day. In stock at our GA, IL, PA warehouses.
- Shipping:
- Calculated at Checkout
- Stock Update:
- 12/09/2025 08:23:02 AM PST
Bulk discount rates
Below are the available bulk discount rates for each individual item when you purchase a certain amount
| Buy 2 - 3 | and pay only $121.59 each 121.59 |
| Buy 4 - 9 | and pay only $119.07 each 119.07 |
| Buy 10 or above | and pay only $113.01 each 113.01 |
- Stock Update:
- 12/09/2025 08:23:02 AM PST
Description
This item is brand-new, factory sealed.

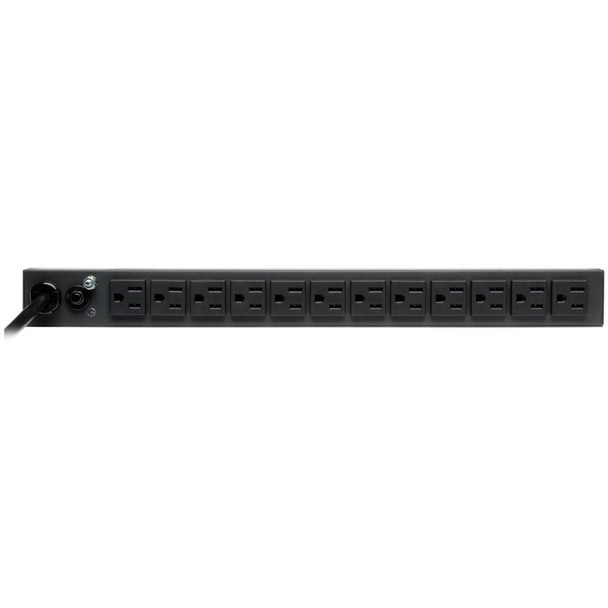

Tripp Lites PDU1215 AC power distribution unit offers 15 amp, 120 volt capacity in a versatile multi-mount cabinet. Detachable mounting flanges are configurable for wallmount, under-counter or 1U/0U rackmount installation. Uses only 1 rack space (1U) when installed in any 19 inch rack, with the potential for 0U mounting in the cable management area of most rack enclosures. Detachable flanges with pre-punched access holes and adjustable depth channels allow user configuration in dozens of potential mounting schemes. Attractive housing with all rear-facing outlets measures only 4.5 inches in depth. Unfiltered electrical pass-through without a power switch makes PDU1215 ideal for distributing alternate waveform UPS or generator power in rack enclosures, network closets and more. Includes 12 rear-facing NEMA5-15R outlets and one front-facing, 15-ft. AC power cord, 15 amp circuit breaker, grounding lug and rugged all-metal case design.Multi-outlet power distribution unit is the ideal means of powering multiple loads in 19 inch rackmount, wallmount and under-counter applications, such as internetworking, PC systems, telecommunications, audio/video, security, sound reinforcement and more. Ideal for distribution of UPS, generator or commercially derived AC power to protected equipment.System overview - 1U rackmount, 0U vertical rackmount, wallmount or under-counter Power Distribution UnitVoltage compatibility - 120V ACFrequency compatibility - 50/60 HzOutput nominal voltage - 120V ACOutlet quantity / type - 13 NEMA 5-15R (1 front / 12 rear)Overload protection - 15AInput connection type - NEMA 5-15PInput cord length - 15Recommended electrical service - 15A 120VSwitches - No power switchUnit Dimensions (HWD/in) - 1.75 (1U) x 17.5 x 4.5Unit Dimensions (HWD/cm) - 4.5 x 44.5 x 11.4Material of construction - Sheet metalForm factors supported - 1U rackmount, 0U vertical rackmount, wall-mount and undercounter installation supportedTVSS grounding - Back panel nut and bolt grounding lugKEY BUYING POINTS- Corded AC power distribution unit with 15 amp capacity and 13 AC receptacles- Versatile all-metal cabinet with detachable mounting flanges allows wallmount, under-counter and 19 inch rackmount mounting in both 1U or zero-U formats- Detachable flanges with pre-punched access holes and adjustable depth channels allow user configuration in dozens of potential mounting schemes, including zero-U rackmount capability in the cable management area or other available space within a rack enclosure- Unfiltered electrical pass-through reliably distributes alternate waveform AC power from UPS or generator to supported equipmentFeatures
Package Contents:
cUL, UR
Yes
TYPICAL APPLICATIONS: Multi-outlet power distribution unit is the ideal means of powering multiple loads in 19 inch rackmount, wallmount and under-counter applications, such as internetworking, PC systems, telecommunications, audio/video, security, sound reinforcement and more. Ideal for distribution of UPS, generator or commercially derived AC power to protected equipment.
Restriction of Hazardous Substances (RoHS)
China
- PDU1215 PDU Basic 120V 15A 13 Outlet
- PDU1215 Rackmount Power Strip
- Warranty information
- Instruction manual
Certifications & Standards:
cUL, UR
Additional Information:
- Corded AC power distribution unit with 15 amp capacity and 13 AC receptacles
- Versatile all-metal cabinet with detachable mounting flanges allows wallmount, under-counter and 19 inch rackmount mounting in both 1U or zero-U formats
- Detachable flanges with pre-punched access holes and adjustable depth channels allow user configuration in dozens of potential mounting schemes, including zero-U rackmount capability in the cable management area or other available space within a rack enclosure
- Unfiltered electrical pass-through reliably distributes alternate waveform AC power from UPS or generator to supported equipment
- 13 NEMA5-15R output receptacles accept common NEMA5-15 equipment plugs

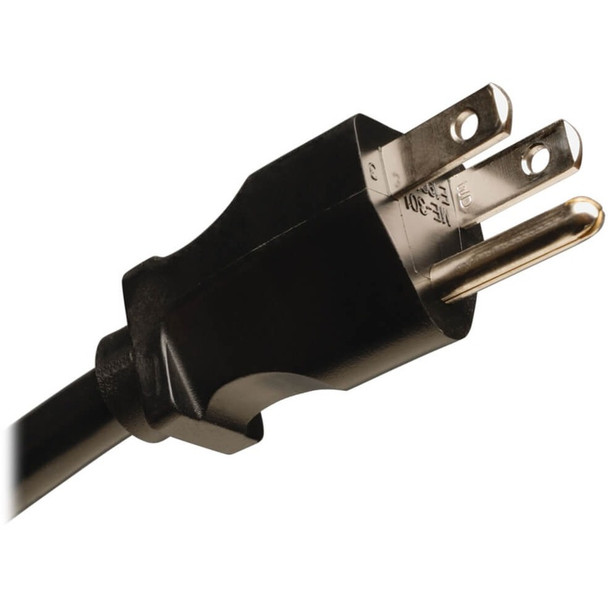

- 15 foot AC cord NEMA5-15P plug connection
- Switch-free design prevents the potential for accidental shutoff of connected loads
- 15 amp electrical capacity with circuit breaker
- 120V AC, 50/60Hz electrical compatibility
Environmentally Friendly:
Yes
Compatibility:
TYPICAL APPLICATIONS: Multi-outlet power distribution unit is the ideal means of powering multiple loads in 19 inch rackmount, wallmount and under-counter applications, such as internetworking, PC systems, telecommunications, audio/video, security, sound reinforcement and more. Ideal for distribution of UPS, generator or commercially derived AC power to protected equipment.
Environmental Compliance:
Restriction of Hazardous Substances (RoHS)
Country of Origin:
China
Specs
| Power Description | |
| Power Rating (Watt) | 1800 W |
| Input Voltage | 120 V AC |
| Output Voltage | 120 V AC |
| Input Current | 15 A |
| Physical Characteristics | |
| Weight (Approximate) | 4.90 lb |
| Mount Type | Rack-mountable |
| Height | 2" |
| Mounting Orientation | Horizontal |
| Width | 20" |
| Rack Height | 1U |
| Depth | 4.5" |
| Warranty | |
| Limited Warranty | 5 Year |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| General Information | |
| Brand Name | Tripp Lite series |
| Manufacturer Website Address | http://www.eaton.com |
| Marketing Information | Tripp Lite's PDU1215 AC power distribution unit offers 15 amp, 120 volt capacity in a versatile multi-mount cabinet. Detachable mounting flanges are configurable for wallmount, under-counter or 1U/0U rackmount installation. Uses only 1 rack space (1U) when installed in any 19 inch rack, with the potential for 0U mounting in the cable management area of most rack enclosures. Detachable flanges with pre-punched access holes and adjustable depth channels allow user configuration in dozens of potential mounting schemes. Attractive housing with all rear-facing outlets measures only 4.5 inches in depth. Unfiltered electrical pass-through without a power switch makes PDU1215 ideal for distributing alternate waveform UPS or generator power in rack enclosures, network closets and more. Includes 12 rear-facing NEMA5-15R outlets and one front-facing, 15-ft. AC power cord, 15 amp circuit breaker, grounding lug and rugged all-metal case design.PLUG/OUTLETS - Input: NEMA 5-15P/Output: 13 NEMA5-15R (12 rear-facing, one front-facing)ELECTRICAL - 120V AC, 50/60Hz, 15A (Requires NEMA 5-15R wall receptacle)FORMAT - Supports 19 in. rackmount (1U/0U), wallmount, under-counter and more More from the Manufacturer |
| Product Type | PDU |
| Product Name | PDU1215 PDU Basic 120V 15A 13 Outlet |
| Manufacturer | Eaton Corporation |
| Manufacturer Part Number | PDU1215 |
| Product Model | PDU1215 |
| Technical Information | |
| Plug/Connector Detail | 1 x NEMA 5-15P |
| Receptacle Type | NEMA 5-15R |
| Receptacle Detail | 13 x NEMA 5-15R |
| Phase | Single Phase |
| Plug/Connector Type | NEMA 5-15P |
| PDU Type | Basic |
