Tripp Lite PDU Basic 13 NEMA 5-15/20R Outlets L5-20P Input 6ft Cord 1URM (pdu1220t6)
(No reviews yet)
Write a Review
- SKU:
- 18200434
- MPN:
- pdu1220t6
- Availability:
- Usually ships the same or next business day. In stock at our GA, PA warehouses.
- Shipping:
- Calculated at Checkout
- Stock Update:
- 12/09/2025 08:23:02 AM PST
Bulk discount rates
Below are the available bulk discount rates for each individual item when you purchase a certain amount
| Buy 2 or above | and pay only $167.71 each 167.71 |
- Stock Update:
- 12/09/2025 08:23:02 AM PST
Description
This item is brand-new, factory sealed.

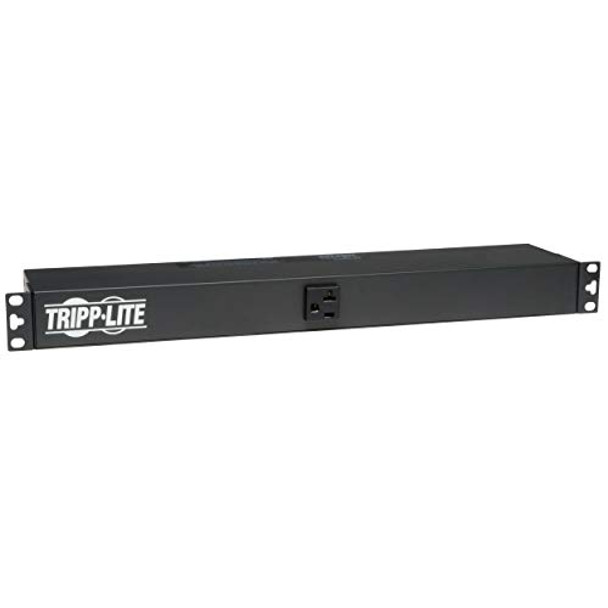

Tripp Lite PDU 2.4kW, 120V Single-Phase Basic PDU - 13 NEMA 5-15/20R Outlets, L5-20P Input, 6 ft. (1.83 m) Cord, 1U Rack-Mount (PDU1220T6)- BASIC PDU: 20A single phase 120V basic power distribution unit is a versatile no-frills unit for data centers, server rooms and network wiring closets

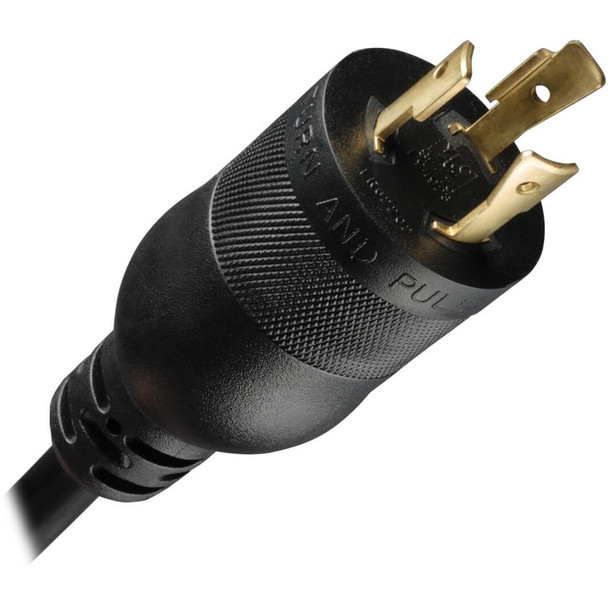

- 13 OUTLETS: 1U horizontal rackmount PDU features 13 outlets - 1 front-facing 5-15R, 12 rear-mounted 5-20R. L5-20P input comes with 5-20P adapter and with long 6 foot cord.
- RUGGED BUILD: Built with all-metal reversible housing to face the front or back of the rack; and switchless design to prevent accidental shutoff and safeguards against downtime from human error.
- VERSATILE INSTALLATION: The PDU1220T6 comes with mounting brackets for installation in 1U or 0U of space in an EIA-standard 19-inch rack. The brackets can be reoriented for permanent mounting under a counter or on a wall with user-supplied hardware.
- Product Dimensions: 4.5 x 17.5 x 1.8 inches
- Item Weight: 4.64 pounds
Delivers 120V single-phase AC power to multiple loads from a utility outlet, generator or UPS system in a high-density IT environment.
Package Contents:
- PDU1220T6 13-Outlets PDU
- Rack-mounting Hardware
- Owner's Manual
Features
Package Contents:
Yes
Restriction of Hazardous Substances (RoHS)
China
- PDU1220T6 13-Outlets PDU
- Rack-mounting Hardware
- Owner's Manual
Environmentally Friendly:
Yes
Environmental Compliance:
Restriction of Hazardous Substances (RoHS)
Country of Origin:
China
Specs
| Power Description | |
| Power Rating (Watt) | 2500 W |
| Input Voltage | 120 V AC |
| Output Voltage |
|
| Input Current | 20 A |
| Physical Characteristics | |
| Weight (Approximate) | 5.20 lb |
| Mount Type |
|
| Height | 1.8" |
| Mounting Orientation | Horizontal/Vertical |
| Width | 17.5" |
| Rack Height | 1U |
| Depth | 4.5" |
| Warranty | |
| Limited Warranty | 5 Year |
| General Information | |
| Brand Name | Tripp Lite series |
| Manufacturer Website Address | http://www.eaton.com |
| Marketing Information | Single-Phase 120V PDU Distributes Network-Grade Power to Multiple Loads This basic PDU is an ideal no-frills unit for networking, telecom, security, audio/video and sound reinforcement applications. Recommended for high-density IT environments, the PDU1220T6 features a single breakered load bank with 13 NEMA 5-15/20R outlets - 12 in the rear and one in front. A 6-ft. (1.83 m) cord with NEMA L5-20P input plug connects to your facility's AC power source, generator or protected UPS system to distribute power to connected loads. Up-to-Date Safety Features Protect Your Vital Equipment The switchless design helps prevent an accidental shutdown, which could lead to costly downtime. A 20A circuit breaker protects connected components from dangerous overloads. Versatile Installation Options Give You Plenty of Choices The reversible all-metal housing comes with mounting brackets for installation in 1U or 0U of space in an EIA-standard 19-inch rack. You can also reorient the brackets for permanent mounting under a counter or on a wall with user-supplied hardware. |
| Product Type | PDU |
| Product Name | PDU1220T6 13-Outlets PDU |
| Manufacturer | Eaton Corporation |
| Manufacturer Part Number | PDU1220T6 |
| Product Model | PDU1220T6 |
| Technical Information | |
| Receptacle Type | NEMA 5-15/20R |
| Receptacle Detail | 13 x NEMA 5-15/20R |
| Phase | Single Phase |
| Plug/Connector Type | NEMA L5-20P |
| PDU Type | Basic |
| Protection Type |
|
