Tripp Lite PDU Basic ISOBAR Surge Protection 14 Outlets L5-20P 6ft Cord 1U (pduh20-iso6)
- SKU:
- 18212952
- MPN:
- pduh20-iso6
- Availability:
- Usually ships the same or next business day. In stock at our IL warehouse.
- Shipping:
- Calculated at Checkout
- Stock Update:
- 12/08/2025 09:07:38 PM PST
- Stock Update:
- 12/08/2025 09:07:38 PM PST
Description
This item is brand-new, factory sealed.
Single-Phase 120V PDU Distributes Network-Grade Power to Multiple Loads

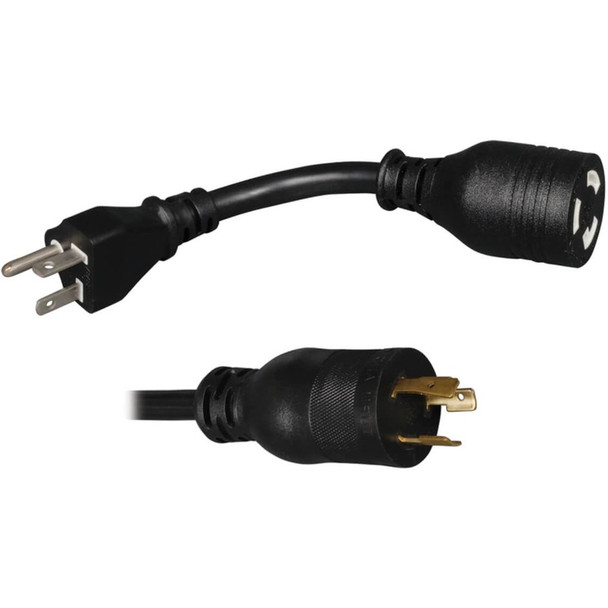

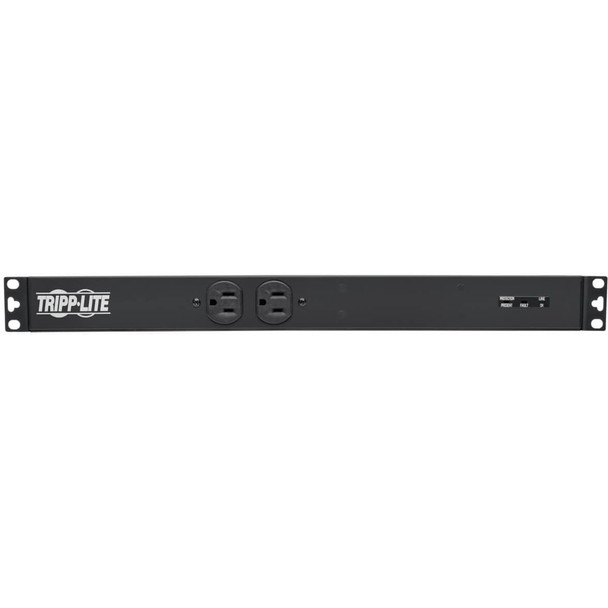

This basic PDU is an ideal no-frills unit for telecom, security, audio/video and a wide variety of general portable and stationary rack-mount applications. Recommended for network-grade IT environments, the PDUH20-ISO6 features 12 NEMA 5-20R outlets in the rear and two 5-15R outlets in front. A six-foot cord with L5-20P input plug (and included 5-20P adapter) connects to your facility's AC power source, generator or protected UPS system to distribute power to connected loads.
3840 Joules Fight Back Against Unexpected Power Surges
Protecting your valuable electronics is ISOBAR® network-grade AC surge and noise suppression. A 3840-joule surge protection rating defends your sensitive electronic components against even the strongest power surges, spikes and line noise. The PDUH20-ISO6 covers full normal (H-N) and common (N-G/H-G) protection modes. A green LED confirms your connected equipment is protected.
Up-to-Date Safety Features Protect Your Vital Equipment
The switchless design helps prevent an accidental shutdown, which could lead to costly downtime. A 20A circuit breaker protects connected components from dangerous overloads. A red LED signals a suppressor or wiring fault.
Versatile Installation Options Give You Plenty of Choices

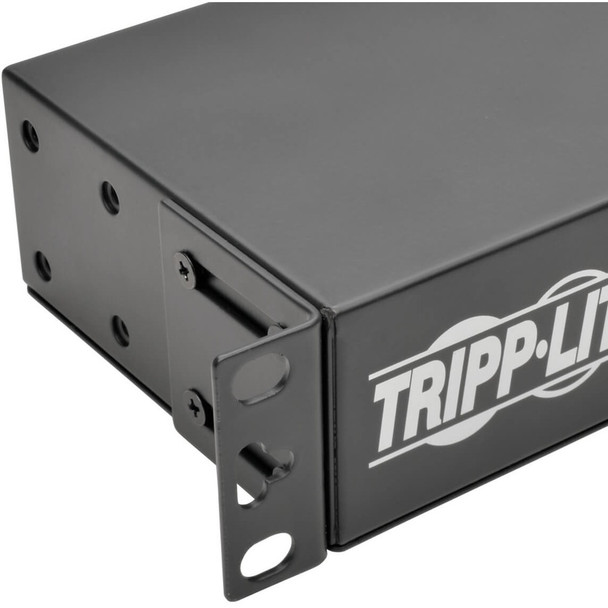

The reversible all-metal housing comes with mounting brackets for installation in 1U of space or 0U vertical mounting in an EIA-standard 19-inch rack. You can also reorient the brackets for permanent mounting under a counter or on a wall with user-supplied hardware.
Package Contents:
- PDUH20-ISO6 14-Outlets PDU
- NEMA 5-20P Input Adapter
- Rack-Mounting Hardware
- Owner's Manual
Features
- PDUH20-ISO6 14-Outlets PDU
- NEMA 5-20P Input Adapter
- Rack-Mounting Hardware
- Owner's Manual
Environmentally Friendly:
Yes
Environmental Compliance:
Restriction of Hazardous Substances (RoHS)
Country of Origin:
China
Specs
| Power Description | |
| Power Rating (Watt) | 2030 W |
| Input Voltage | 120 V AC |
| Output Voltage |
|
| Input Current | 20 A |
| Physical Characteristics | |
| Weight (Approximate) | 4.60 lb |
| Mount Type |
|
| Height | 1.8" |
| Mounting Orientation | Horizontal/Vertical |
| Width | 17.5" |
| Rack Height | 1U |
| Depth | 4.5" |
| Warranty | |
| Limited Warranty | 2 Year |
| General Information | |
| Brand Name | Tripp Lite series |
| Manufacturer Website Address | http://www.eaton.com |
| Marketing Information | Single-Phase 120V PDU Distributes Network-Grade Power to Multiple Loads This basic PDU is an ideal no-frills unit for telecom, security, audio/video and a wide variety of general portable and stationary rack-mount applications. Recommended for network-grade IT environments, the PDUH20-ISO6 features 12 NEMA 5-20R outlets in the rear and two 5-15R outlets in front. A six-foot cord with L5-20P input plug (and included 5-20P adapter) connects to your facility's AC power source, generator or protected UPS system to distribute power to connected loads. 3840 Joules Fight Back Against Unexpected Power Surges Protecting your valuable electronics is ISOBAR® network-grade AC surge and noise suppression. A 3840-joule surge protection rating defends your sensitive electronic components against even the strongest power surges, spikes and line noise. The PDUH20-ISO6 covers full normal (H-N) and common (N-G/H-G) protection modes. A green LED confirms your connected equipment is protected. Up-to-Date Safety Features Protect Your Vital Equipment The switchless design helps prevent an accidental shutdown, which could lead to costly downtime. A 20A circuit breaker protects connected components from dangerous overloads. A red LED signals a suppressor or wiring fault. Versatile Installation Options Give You Plenty of Choices The reversible all-metal housing comes with mounting brackets for installation in 1U of space or 0U vertical mounting in an EIA-standard 19-inch rack. You can also reorient the brackets for permanent mounting under a counter or on a wall with user-supplied hardware. |
| Product Type | PDU |
| Product Name | PDUH20-ISO6 14-Outlets PDU |
| Manufacturer | Eaton Corporation |
| Manufacturer Part Number | PDUH20-ISO6 |
| Product Model | PDUH20-ISO6 |
| Technical Information | |
| Receptacle Type |
|
| Receptacle Detail |
|
| Phase | Single Phase |
| Plug/Connector Type |
|
| PDU Type | Basic |
| Protection Type |
|
