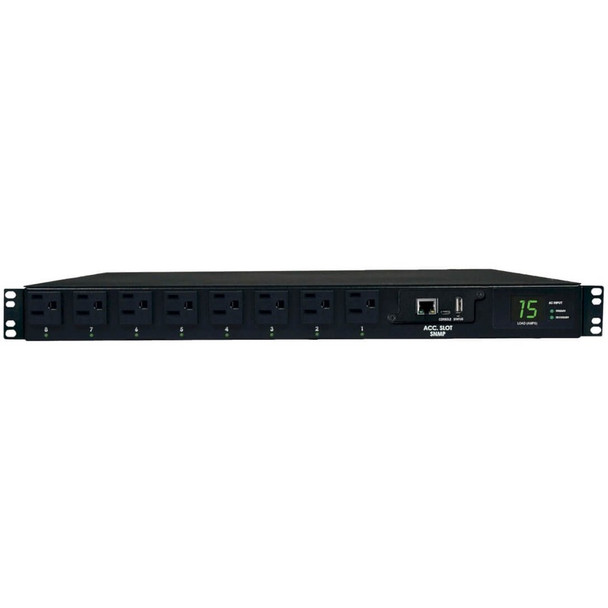

Tripp Lite PDU Switched ATS 120V 15A 5-15R 8 Outlet 2 5-15P Horizontal 1URM (PDUMH15ATNET)
(No reviews yet)
Write a Review
- SKU:
- 18060358
- MPN:
- pdumh15atnet
- Availability:
- Usually ships the same or next business day. In stock at our CA, IL, PA, SC warehouses.
- Shipping:
- Calculated at Checkout
- Stock Update:
- 12/08/2025 06:11:06 PM PST
- Stock Update:
- 12/08/2025 06:11:06 PM PST
Description
This item is brand-new, factory sealed.
Tripp Lites 120V 15A metered PDU system with Automatic Transfer Switching (ATS) is an 8 outlet PDU with a digital display to indicate total PDU power consumption in amps. Outlets are sequentially turned on at 250 millisecond intervals when the PDU is first energized from an unpowered state to prevent inrush-related equipment interaction on startup. Installed web/network monitoring card enables remote power monitoring and control. Remotely displays status of input power, load capacity, and outlet power condition via secure network or web browser interface. Offers individual outlet control to power on, off, or cycle AC output to regain control of locked-up servers and other network devices. Load ramping and shedding provides automatic power management to any type of network configuration. Supports notification and logging of input power status, event notification, output power and PDU loading conditions. Supports 1U rackmount installation in a 2 or 4 post racks. Included are 8 NEMA 5-15R outlets and two 12 ft. 5-15P optional-use dual cords for auto-transfer switching (ATS) option.SYSTEM OVERVIEW System overview -- Multi-outlet PDU with Current Monitoring ,Sequential Power-on, Individual outlet control, and remote monitoring; Configurable to operate from either one or two 120v input power sourcesVoltage compatibility -- 120VFrequency compatibility -- 50/60 HzOUTPUT Output volt amp capacity (VA) -- 15A/1800VAOutput nominal voltage -- 120 VACOutlet quantity / type -- 8 NEMA 5-15RCustomized load management receptacles -- 8 individually controlled outletsINPUT Maximum input amps -- 15AInput connection type -- 2 NEMA 5-15PInput cord length -- 12ft. (each)Recommended electrical service -- 120V 15A, dedicated line recommendedLEDS ALARMS & SWITCHES Front panel LEDs -- 10 front panel LEDs display power on - off status for each outlet, plus 2 LEDs for power status on each input line cord. Digital Current Meter display shows total output power consumption in amps.Typical battery lifespan -- 3 to 6 years, depending on usage, Battery recharge rate -- 2 to 4 hours to reach 90% chargePHYSICAL Shipping weight -- 15.2 lbs / 6.9 kgUnit weight -- 11 lbs / 5 kgFeatures
Package Contents:
Yes
Yes
Taiwan
- PDUMH15ATNET PDU Switched ATS 120V 15A 8 Outlet
- PDU with attached 5-15P input power cord
- Detachable C13 to NEMA 5-15P 12 ft/3.6m power cord for optional secondary input
- User manuals with warranty information
Certifications & Standards:
- 60950
- Class A
- RoHS compliant
TAA Compliant:
Yes
Environmentally Friendly:
Yes
Country of Origin:
Taiwan
Specs
| Power Description | |
| Power Rating (VA) | 1800 VA |
| Input Voltage | 120 V AC |
| Output Voltage | 120 V AC |
| Physical Characteristics | |
| Weight (Approximate) | 11 lb |
| Product Color | Black |
| Mount Type | Rack-mountable |
| Number of Cord/Cable | 2 |
| Height | 1.8" |
| Color Family | Black |
| Mounting Orientation | Vertical |
| Width | 1.8" |
| Rack Height | 1U |
| Depth | 14.5" |
| Warranty | |
| Limited Warranty | 2 Year |
| General Information | |
| Brand Name | Tripp Lite series |
| Manufacturer Website Address | http://www.eaton.com |
| Marketing Information | Tripp Lite Switched ATS / Auto Transfer Switch provides a redundant power option for single-corded network devices. Dual input cords support separate connection to PRIMARY and SECONDARY power sources. The ATS will normally maintain continuous output to all outlets as derived from the primary input cable. If the primary power source becomes unstable or fails altogether, the ATS will switch over to the secondary power source until the primary input is restored and stable. The built-in Java-free HTML5-based LX Platform interface enables full remote access for PDU status monitoring and email notifications via secure web browser, SNMP, telnet or SSH. It supports 10/100 Mbps auto-sensing for optimum communication with an Ethernet network. Optional EnviroSense2 modules (sold separately) provide a variety of environmental monitoring capabilities. Protocols supported include IPv4, IPv6, HTTP, HTTPS, SMTP, SNMPv1, SNMPv2, SNMPv3, telnet, SSH, FTP, DHCP, BOOTP and NTP. Switched PDU features include individually controllable output receptacles. Super-fast switchover between primary and secondary power sources occurs within milliseconds. ATS functionality is supported by any two compatible AC power sources, regardless of phase angle, to support a variety of advanced redundant power networking applications. Enables fault tolerant hot-swappable UPS protection when used with a single UPS and fully redundant UPS protection when each cord is connected to a separate UPS system. In a two-UPS environment, the primary input cable must be supported by a full time sine wave UPS with zero transfer time. Tripp Lite SmartOnline series is highly recommended for use as the primary UPS in a two-UPS application. ATS configurations utilizing separate mains circuits, backup generators and even separate utility power grid feeds are fully supported. On-board ATS processor constantly evaluates power quality on both input sources to prevent transfer to the secondary source when unavailable or of lower quality than the primary source. Front input LED's display primary or secondary power availability. More from the Manufacturer |
| Product Type | PDU |
| Product Name | PDUMH15ATNET PDU Switched ATS 120V 15A 8 Outlet |
| Manufacturer | Eaton Corporation |
| Manufacturer Part Number | PDUMH15ATNET |
| Product Model | PDUMH15ATNET |
| Technical Information | |
| Plug/Connector Detail | 2 x NEMA 5-15P |
| Receptacle Type | NEMA 5-15R |
| Receptacle Detail | 8 x NEMA 5-15R |
| Plug/Connector Type | NEMA 5-15P |
| PDU Type | Switched |
| Management | |
| Management | <ul><li>Integrated Automatic Transfer Switch (ATS) allows PDU to operate from secondary input source when primary input fails</li><li>Sequential outlet power-on prevents inrush-related equipment interaction on startup</li><li>Programmable or real-time outlet power control via web/network monitoring and control card</li></ul> |
