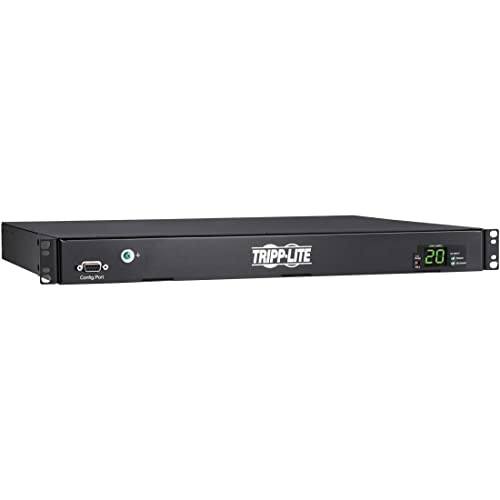

Tripp Lite PDU ATS/Metered 200-240V 8 C13 2 C19 Dual C20 12ft Cords 1URM (PDUMH20HVATS)

This item is brand-new, factory sealed.

Tripp Lite Metered PDU, Auto-Transfer Switch (ATS), 20A, 200-240V, 3.8kW, Single-Phase - 8 C13 Outlets & 2 C19 Outlets, Dual C20 12ft Input Cords - 1U Rackmount, 2 Year Warranty (PDUMH20HVATS)

• ATS PDU allows real-time current monitoring to prevent circuit overloads and enables redundant power for non-redundant network devices. Eight C13 and two C19 200240V outlets distribute AC power to connected equipment.
• Digital ammeter for on-site real-time load monitoring helps prevent power overloads. Switches from primary to secondary power source in less than 5 milliseconds for constant operation.
• Dual 12-foot (3.7-meter) power cables with C20 inputs connect to separate primary and secondary mains circuits, backup generators, UPS systems or utility power grids. Switching is prevented if the secondary source is unavailable or of lower quality.
• Compliant with the Federal Trade Agreements Act (TAA) for GSA (General Services Administration) Schedule purchases and other federal procurement contracts.
• 2-year limited warranty

• Product Dimensions: 14.8 x 17.3 x 1.7 inches
• Item Weight: 10.3 pounds

Style:Without Network Card

SINGLE-PHASE 20A ATS PDU DISTRIBUTES AND MONITORS NETWORK-GRADE POWER IN REAL TIME: This metered PDU provides real-time local reporting of the total load level via its built-in digital current meter. Ideal for network IT applications, small computer rooms and other equipment rack applications, the PDUMH20HVATS features eight C13 and two C19 200-240V outlets for connecting equipment. Outlets are factory-programmed for sequential turn-on at 250-millisecond intervals when the PDU is first energized to prevent inrush-related equipment interaction at startup. SWITCHES FROM PRIMARY TO SECONDARY POWER SOURCE IN MILLISECONDS: Dual 12-foot (3.7-meter) power cables with C20 inputs connect to separate primary and secondary mains circuits, backup generators, UPS systems or utility power grids, including out-of-phase sources. Dynamic solid-state automatic transfer switching (ATS) allows the PDU to switch to the secondary source within 2-5 milliseconds, should the primary source fail or become unstable, to ensure your connected equipment operates without interruption. An on-board ATS processor constantly evaluates the power quality of both input sources. It prevents switching if the secondary source is unavailable or of lower quality than the primary source. DIGITAL LOAD METER HELPS PREVENT POTENTIALLY EXPENSIVE OVERLOADS: A digital ammeter reports the total load for all connected equipment. Monitoring amperage helps ensure load levels remain well below maximum capacity with no danger of overload that could lead to costly downtime or damaged equipment. Maintaining proper load levels, even while adding new equipment, can keep your TCO (total cost of ownership) low. MOUNTS INTO 1U OF RACK SPACE: Use the included mounting hardware to install the all-metal housing into 1U of space in an EIA-standard 19-inch rack. TAA-COMPLIANT FOR GSA SCHEDULE PURCHASES: The PDUMH20HVATS is compliant with the Federal Trade Agreements Act (TAA), which makes it eligible for GSA (General Services Administration) Schedule and other federal procurement contracts.

Package Contents:

• PDUMH20HVATS 10-Outlets PDU
• 2 x Detachable C19 to C20 Input Cords, 12 ft. (3.7 m)
• 10 x Plug-lock Insert Sleeves
• Rack-mounting Hardware
• Owner's Manual
