Tripp Lite PDU Metered 120V 20A 5-15/20R 28 Outlet L5-20P Vertical 0URM (PDUMV20)
- SKU:
- 18060365
- MPN:
- pdumv20
- Availability:
- Usually ships the same or next business day. In stock at our CA, GA warehouses.
- Shipping:
- Calculated at Checkout
- Stock Update:
- 01/08/2026 07:09:02 PM PST
- Stock Update:
- 01/08/2026 07:09:02 PM PST
Description
This item is brand-new, factory sealed.

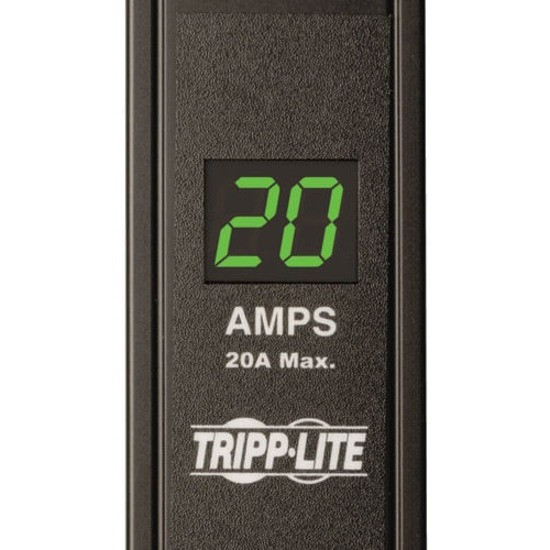

Tripp Lite's PDUMV20 metered power distribution unit offers 20 amp, 120V multi-outlet AC power distribution in a convenient 60 inch mountable housing. Digital current meter displays the power consumption of connected equipment. Offers vertical power distribution in rackmount, raceway, and workbench applications. Tooless installation supports fast installation in button-mount compatible equipment racks. Sturdy all-metal extruded aluminum housing stands up to demanding network, laboratory, or factory enviroments. Unfiltered electrical pass-through makes the PDUMV20 ideal for distributing alternate waveform UPS or generator power in rack enclosures, network closets and more. Includes 20 NEMA 5-15/20R output receptacles, 15 ft. AC line cord, lighted power switch with locking transparent cover to prevent accidental shutoff, and 20 amp circuit breaker in rugged metal case design.PLUG/OUTLETS-Input: NEMA L5-20P/Output: 20 NEMA 5-15/20RELECTRICAL- 120V AC, 50/60Hz, 20A [Requires NEMA L5-20R or 5-20R(using included adapter) wall receptacle]FORMAT- 60 inch mountable strip format
Package Contents:
- PDUMV20 PDU Metered 120V 20A 28 Outlet
- (1) L5-20P to 5-20P plug adapter
- Mounting hardware
- Six protective outlet covers
- Instruction manual with warranty information
Features
- PDUMV20 PDU Metered 120V 20A 28 Outlet
- (1) L5-20P to 5-20P plug adapter
- Mounting hardware
- Six protective outlet covers
- Instruction manual with warranty information
Certifications & Standards:
- UL60950-1
- CAN/CSA C22.2 No. 60950-1-03
- RoHS Compliant
Environmentally Friendly:
Yes
Environmental Compliance:
Restriction of Hazardous Substances (RoHS)
Country of Origin:
China
Specs
| Power Description | |
| Power Rating (Watt) | 2400 W |
| Input Voltage | 120 V AC |
| Circuit Breaker | Yes |
| Output Voltage | 120 V AC |
| Physical Characteristics | |
| Weight (Approximate) | 5.20 lb |
| Mount Type | Rack-mountable |
| Height | 3" |
| Mounting Orientation | Vertical |
| Width | 60" |
| Depth | 1.5" |
| Warranty | |
| Limited Warranty | 2 Year |
| General Information | |
| Brand Name | Tripp Lite series |
| Manufacturer Website Address | http://www.eaton.com |
| Marketing Information | Tripp Lite single phase Metered PDU / Power Distribution Units offer real-time local reporting of load level in amps via built-in digital display. Enables visual monitoring of PDU load levels to prevent overloads as additional equipment is added. Offers reliable rackmount multi-outlet power distribution from any protected UPS, generator or mains input power source. High quality design includes rugged all-metal housing and secure rackmount installation with included mounting accessories. More from the Manufacturer |
| Product Type | PDU |
| Product Name | PDUMV20 PDU Metered 120V 20A 28 Outlet |
| Manufacturer | Eaton Corporation |
| Manufacturer Part Number | PDUMV20 |
| Product Model | PDUMV20 |
| Technical Information | |
| Receptacle Type | NEMA 5-15/20R |
| Receptacle Detail | 28 x NEMA 5-15/20R |
| Plug/Connector Type | NEMA L5-20P |
| Protection Type | Overload Protection |
