Tripp Lite PDU Switched 208V / 240V 30A 4 C19; 20 C13 LX Platform Vertical 0URM TAA (PDUMVR30HVNETLX)

(No reviews yet) Write a Review
SKU:
18215290
MPN:
pdumvr30hvnetlx
Availability:
Usually ships the same or next business day. In stock at our CA warehouse.
Shipping:
Calculated at Checkout
Stock Update:
12/18/2025 09:10:53 PM PST
  • Main
  • Front
  • Alternate-Image8
  • Alternate-Image7
  • Alternate-Image6
  • Alternate-Image5
  • Alternate-Image4
  • Alternate-Image3
  • Alternate-Image2
  • Alternate-Image1
  • ALTIMAGE1
  • ALTIMAGE2
  • ALTIMAGE3
  • ALTIMAGE4
$1,456.82
Stock Update:
12/18/2025 09:10:53 PM PST

Description



This item is brand-new, factory sealed.

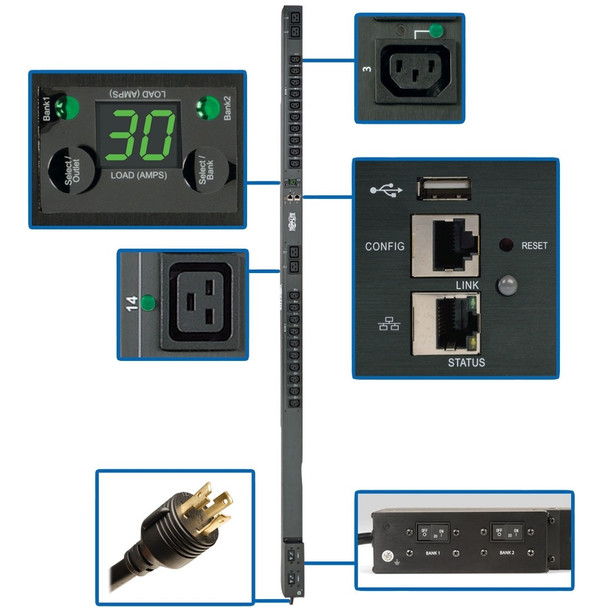

The PDUMVR30HVNETLX 5/5.8kW Single-Phase Switched PDU provides advanced network control and remote power monitoring with the ability to turn on, turn off, reboot or lock out power to each outlet. Recommended for any IT or industrial application, it features 24 switched outlets (20 C13 and 4 C19). LEDs indicate each outlet's on/off power status, and you can monitor each outlet's power consumption remotely or via digital display. A 10-foot cord with NEMA L6-30P plug connects the PDU to a compatible AC power source, generator or protected UPS.

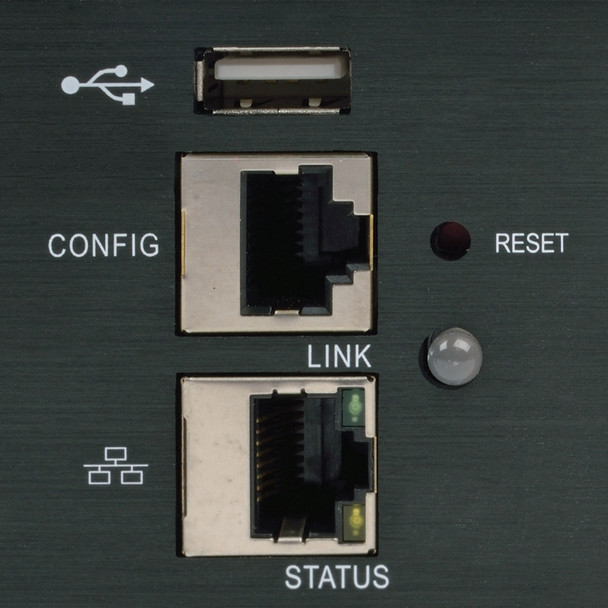

The built-in Java-free HTML5-based LX Platform interface enables full remote access for power monitoring, configuration, control and email notifications via secure web browser, SNMP, telnet or SSH. It supports 10/100 Mbps auto-sensing for optimum communication with an Ethernet network. Optional EnviroSense2 modules (sold separately) provide a variety of environmental monitoring capabilities. Protocols supported include HTTP, HTTPS, SMTP, SNMPv1, SNMPv2, SNMPv3, telnet, SSH, FTP, DHCP and NTP.

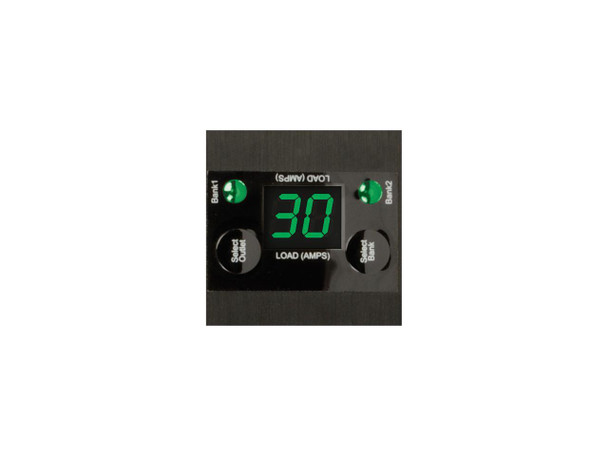

A digital LED meter allows you to monitor each bank's load in real time to ensure the PDUMVR30HVNETLX is used at maximum capacity with no danger of overload. The PDU mounts in 0U of space in EIA-standard 19-inch racks using the included toolless mounting buttons or the included rack-mounting brackets. Use the includedPDUMVROTATEBRKT kit to install the unit with outlets facing the rear for better airflow or equipment access.

Package Contents:
  • PDUMVR30HVNETLX 24-Outlet PDU
  • Configuration Cable
  • 24 x Cable ties
  • Rack-mounting Hardware
  • Owner's Manual

Features

Package Contents:
  • PDUMVR30HVNETLX 24-Outlet PDU
  • Configuration Cable
  • 24 x Cable ties
  • Rack-mounting Hardware
  • Owner's Manual



TAA Compliant:
Yes



Environmentally Friendly:
Yes



Environmental Compliance:
Restriction of Hazardous Substances (RoHS)



Country of Origin:
Taiwan



Specs

Power Description
Power Rating (Watt)5800 W
Input Voltage230 V AC
Output Voltage230 V AC
Input Current30 A
Physical Characteristics
Weight (Approximate)12 lb
Mount TypeRack-mountable
Height70"
Mounting OrientationVertical
Width2.2"
Rack Height0U
Depth2.6"
Warranty
Limited Warranty2 Year
General Information
Brand NameEaton
Manufacturer Website Addresshttp://www.eaton.com
Marketing InformationThe PDUMVR30HVNETLX 5/5.8kW Single-Phase Switched PDU provides advanced network control and remote power monitoring with the ability to turn on, turn off, reboot or lock out power to each outlet. Recommended for any IT or industrial application, it features 24 switched outlets (20 C13 and 4 C19). LEDs indicate each outlet's on/off power status, and you can monitor each outlet's power consumption remotely or via digital display. A 10-foot cord with NEMA L6-30P plug connects the PDU to a compatible AC power source, generator or protected UPS.
The built-in Java-free HTML5-based LX Platform interface enables full remote access for power monitoring, configuration, control and email notifications via secure web browser, SNMP, telnet or SSH. It supports 10/100 Mbps auto-sensing for optimum communication with an Ethernet network. Optional EnviroSense2 modules (sold separately) provide a variety of environmental monitoring capabilities. Protocols supported include HTTP, HTTPS, SMTP, SNMPv1, SNMPv2, SNMPv3, telnet, SSH, FTP, DHCP and NTP.
A digital LED meter allows you to monitor each bank's load in real time to ensure the PDUMVR30HVNETLX is used at maximum capacity with no danger of overload. The PDU mounts in 0U of space in EIA-standard 19-inch racks using the included toolless mounting buttons or the included rack-mounting brackets. Use the includedPDUMVROTATEBRKT kit to install the unit with outlets facing the rear for better airflow or equipment access.
More from the Manufacturer
Product TypePDU
Product NamePDUMVR30HVNETLX 24-Outlet PDU
ManufacturerEaton Corporation
Manufacturer Part NumberPDUMVR30HVNETLX
Product ModelPDUMVR30HVNETLX
Technical Information
Receptacle Type
  • IEC 60320 C13
  • IEC 60320 C19
Receptacle Detail
  • 20 x IEC 60320 C13
  • 4 x IEC 60320 C19
Plug/Connector TypeNEMA L6-30P
Protection TypeOverload Protection
Management
Management<ul> <li>HTTP</li> <li>HTTPS</li> <li>PowerAlert</li> <li>SMTP</li> <li>SNMPv1</li> <li>SNMPv2</li> <li>SNMPv3</li> <li>Telnet</li> <li>SSH</li> <li>FTP</li> <li>DHCP and NTP</li> </ul>
