Tripp Lite PDU Basic 36 5-15/20R L5-20P 5-20P Adapter 1.9kW 15ft Cord 72in (PDUV20-72)
- SKU:
- 18201506
- MPN:
- pduv20-72
- Availability:
- Usually ships the same or next business day. In stock at our IL warehouse.
- Shipping:
- Calculated at Checkout
- Stock Update:
- 02/04/2026 06:22:40 PM PST
- Stock Update:
- 02/04/2026 06:22:40 PM PST
Description
This item is brand-new, factory sealed.
Tripp Lite PDU Basic 36 5-15/20R L5-20P 5-20P Adapter 1.9kW 15ft Cord 72in (PDUV20-72)- SINGLE-PHASE 120V PDU DISTRIBUTES NETWORK-GRADE POWER TO MULTIPLE LOADS: This basic PDU is an ideal no-frills unit for networking, telecom, security, audio/video and sound reinforcement applications. Recommended for small to mid-sized data centers, computer rooms and network closets, the PDUV20-72 features 36 NEMA 5-15/20R outlets for connecting equipment. A 15-foot cord with L5-20P input plug (and included 5-20P adapter) connects to your facilitys AC power source, generator or protected UPS system to distribute power to connected loads.
- UP-TO-DATE SAFETY FEATURES PROTECT YOUR VITAL EQUIPMENT: A lighted on/off switch is protected by a transparent plastic cover to help prevent an accidental shutdown that could lead to costly downtime. A 20A circuit breaker protects connected components from dangerous overloads.

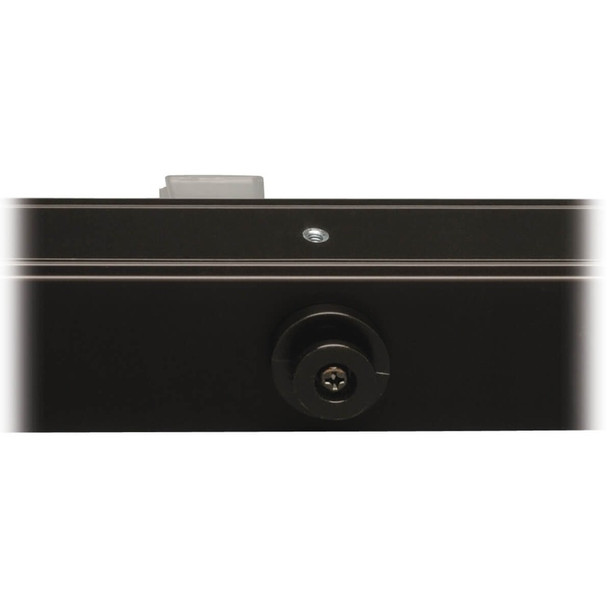

- VERSATILE INSTALLATION OPTIONS GIVE YOU PLENTY OF CHOICES: The 72-inch 0U PDU mounts vertically in an EIA-standard 19-inch rack using the included toolless mounting buttons or the included mounting clips and hardware. You may also use the clips to secure the PDU to a wall, counter or other flat, secure surface. Bolt-down retention brackets keep power cords organized and your rack free of clutter.
- Product Dimensions: 1.5 x 1.6 x 72.5 inches
- Item Weight: 6.14 pounds
Single-Phase 120V PDU Distributes Network-Grade Power to Multiple Loads This basic PDU is an ideal no-frills unit for networking, telecom, security, audio/video and sound reinforcement applications. Recommended for small to mid-sized data centers, computer rooms and network closets, the PDUV20-72 features 36 NEMA 5-15/20R outlets for connecting equipment. A 15-foot cord with L5-20P input plug (and included 5-20P adapter) connects to your facilitys AC power source, generator or protected UPS system to distribute power to connected loads. Up-to-Date Safety Features Protect Your Vital Equipment A lighted on/off switch is protected by a transparent plastic cover to help prevent an accidental shutdown that could lead to costly downtime. A 20A circuit breaker protects connected components from dangerous overloads. Versatile Installation Options Give You Plenty of Choices The 72-inch 0U PDU mounts vertically in an EIA-standard 19-inch rack using the included toolless mounting buttons or the included mounting clips and hardware. You may also use the clips to secure the PDU to a wall, counter or other flat, secure surface. Bolt-down retention brackets keep power cords organized and your rack free of clutter.
Package Contents:
- PDUV20-72 36-Outlet PDU
- L5-20P to 5-20P Input Plug Adapter
- Plug Retention Brackets with Installation Hardware
- Rack-Mounting Hardware
- Owner's Manual
Features
- PDUV20-72 36-Outlet PDU
- L5-20P to 5-20P Input Plug Adapter
- Plug Retention Brackets with Installation Hardware
- Rack-Mounting Hardware
- Owner's Manual
Environmentally Friendly:
Yes
Environmental Compliance:
Restriction of Hazardous Substances (RoHS)
Country of Origin:
China
Specs
| Power Description | |
| Power Rating (Watt) | 2030 W |
| Input Voltage | 120 V AC |
| Output Voltage |
|
| Input Current | 20 A |
| Physical Characteristics | |
| Weight (Approximate) | 6.14 lb |
| Mount Type | Rack-mountable |
| Height | 72.5" |
| Mounting Orientation | Vertical |
| Width | 1.6" |
| Rack Height | 0U |
| Depth | 1.5" |
| Warranty | |
| Limited Warranty | 2 Year |
| General Information | |
| Brand Name | Tripp Lite series |
| Manufacturer Website Address | http://www.eaton.com |
| Marketing Information | Single-Phase 120V PDU Distributes Network-Grade Power to Multiple Loads This basic PDU is an ideal no-frills unit for networking, telecom, security, audio/video and sound reinforcement applications. Recommended for small to mid-sized data centers, computer rooms and network closets, the PDUV20-72 features 36 NEMA 5-15/20R outlets for connecting equipment. A 15-foot cord with L5-20P input plug (and included 5-20P adapter) connects to your facility's AC power source, generator or protected UPS system to distribute power to connected loads. Up-to-Date Safety Features Protect Your Vital Equipment A lighted on/off switch is protected by a transparent plastic cover to help prevent an accidental shutdown that could lead to costly downtime. A 20A circuit breaker protects connected components from dangerous overloads. Versatile Installation Options Give You Plenty of Choices The 72-inch 0U PDU mounts vertically in an EIA-standard 19-inch rack using the included toolless mounting buttons or the included mounting clips and hardware. You may also use the clips to secure the PDU to a wall, counter or other flat, secure surface. Bolt-down retention brackets keep power cords organized and your rack free of clutter. Typical Applications Deliver network-grade power to high-density equipment in networking, telecom, security, audio/video and sound reinforcement applications |
| Product Type | PDU |
| Product Name | PDUV20-72 36-Outlet PDU |
| Manufacturer | Eaton Corporation |
| Manufacturer Part Number | PDUV20-72 |
| Product Model | PDUV20-72 |
| Technical Information | |
| Receptacle Type | NEMA 5-15/20R |
| Receptacle Detail | 36 x NEMA 5-15/20R |
| Phase | Single Phase |
| Plug/Connector Type |
|
| PDU Type | Basic |
| Protection Type | Overload Protection |
