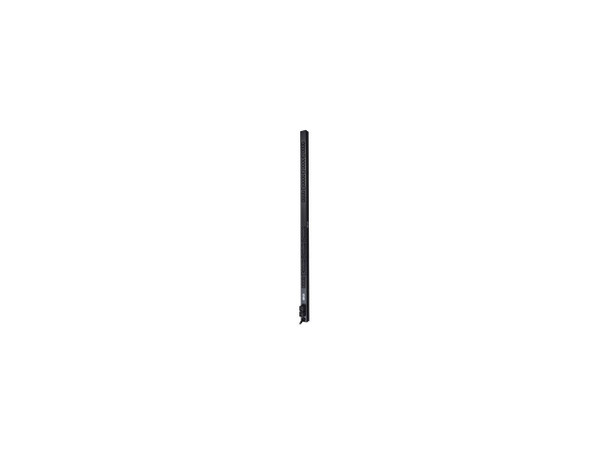

Tripp Lite PDU Basic 208V / 240V 30A 6 C19; 32 C13 L6-30P Vertical 0URM (PDUV30HV)
(No reviews yet)
Write a Review
- SKU:
- 18060369
- MPN:
- pduv30hv
- Availability:
- Usually ships the same or next business day. In stock at our PA warehouse.
- Shipping:
- Calculated at Checkout
- Stock Update:
- 02/01/2026 01:11:51 PM PST
Bulk discount rates
Below are the available bulk discount rates for each individual item when you purchase a certain amount
| Buy 2 or above | and pay only $369.48 each 369.48 |
- Stock Update:
- 02/01/2026 01:11:51 PM PST
Description
This item is brand-new, factory sealed.
Tripp Lite Basic Power Distribution Units / PDU systems offer reliable rackmount power distribution. Supplies equipment with continuous power from any protected UPS, generator or mains input power source. High quality design includes rugged all-metal housing and secure rackmount installation with included mounting accessories. PDU TypeBasic
OUTPUT
Output Capacity Details:5kW (208V input), 5.8kW (240V input), 4.8kW (200V input) 30A maximum (agency de-rated to 24A continuous)
Frequency compatibility:50 / 60 Hz
Output nominal voltage:200-240V nominal, single phase
Overload protection:Outlets are arranged in two separately breakered load banks. The top 15A breaker covers outlets on the upper half, the bottom 15A breaker covers outlets on the lower half of the PDU. Each breakered bank covers 16 C13 and 3 C19 outlets.
Outlet quantity / type:38 total (6 C19, 32 C13)
Outlet Type:IEC-C13, IEC-C19 INPUT
PDU Input Voltage:200 208 240
Maximum Input Amps (A):30
Maximum Input Amps (A) Details:Agency de-rated to 24A
PDU Plug Type:NEMA L6-30P
Input cord length (ft.):10
Input cord length (m):3.05
Phase:Single-Phase CERTIFICATIONS
TAA Compliant Option:TAA Compliant Version Available - Order Tripp Lite PDUV30HVTAA
Certifications:Tested to UL60950-1 (USA, Canada), NOM (Mexico) Item Dimension (L"xW"xH"):
63.75 x 2.25 x 3.75
Weight:
8 lb
Warranty Information:
5-year limited warranty
Features
Package Contents:
China
- PDUV30HV PDU Basic 208V - 240V 30A 38 Outlet
- PDUV30HV 63.75 inch basic PDU with owner's manual
- Set of 2 plug retention brackets and installation hardware
- Set of mounting brackets and installation hardware
Country of Origin:
China
Specs
| Power Description | |
| Input Voltage Range | 208 V AC - 240 V AC |
| Input Voltage | 230 V AC |
| Output Voltage |
|
| Physical Characteristics | |
| Weight (Approximate) | 8 lb |
| Mount Type |
|
| Height | 63.8" |
| Mounting Orientation | Vertical |
| Width | 2.3" |
| Depth | 3.8" |
| Warranty | |
| Limited Warranty | 5 Year |
| General Information | |
| Brand Name | Tripp Lite series |
| Manufacturer Website Address | http://www.eaton.com |
| Marketing Information | Tripp Lite Basic Power Distribution Units give IT Managers the ability to power multiple servers and vital networking hardware from a single input power source. Switch-free unfiltered electrical pass-through reliably distributes UPS or generator power to critical equipment in rack enclosures, network closets and more. Tooless mounting enables simple installation in button-mount compatible racks. Included mounting brackets support vertical installation in standard 2 and 4 post racks or other surfaces, such as under-counter or wallmount configurations. Plug retention brackets keep vital equipment plugged in and continuously powered.PDUV30HV 63.75 in. vertical 0U rack PDU supports 30A maximum capacity at 208/240V (agency derated to 24A). Includes 10 ft. attached line cord with L6-30P input plug. 32 C13 and 6 C19 outlets support up to 38 directly connected pieces of networking equipment. Outlets are arranged in two separately breakered 15A load banks. More from the Manufacturer |
| Product Type | PDU |
| Product Name | PDUV30HV PDU Basic 208V - 240V 30A 38 Outlet |
| Manufacturer | Eaton Corporation |
| Manufacturer Part Number | PDUV30HV |
| Product Model | PDUV30HV |
| Technical Information | |
| Receptacle Type |
|
| Receptacle Detail |
|
| Plug/Connector Type | NEMA L6-30P |
| PDU Type | Basic |
| Protection Type |
|
