Tripplite
Tripp Lite Power Strip 120V 22 5-15R; 2 5-20R L5-20P 15' Cd Vertical Metal (PS7224-20T)
- SKU:
- 18159592
- MPN:
- ps7224-20t
- Availability:
- Usually ships the same or next business day. In stock at our TX warehouse.
- Shipping:
- Calculated at Checkout
- Stock Update:
- 02/12/2026 04:38:53 PM PST
- Stock Update:
- 02/12/2026 04:38:53 PM PST
Description
This item is brand-new, factory sealed.

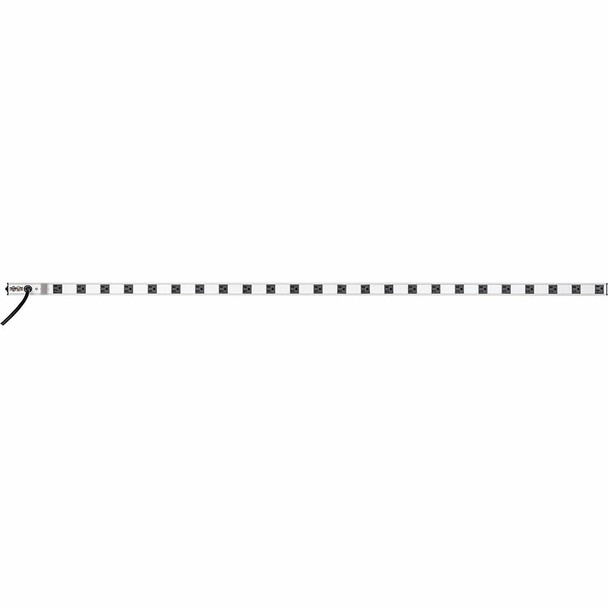

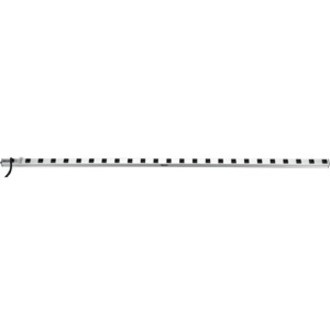

Tripp Lite's PS7224-20T power strip offers 20 amp, 120V multi-outlet AC power distribution in a convenient 72 inch mountable housing with NEMA L5-20 locking input plug. Offers horizontal or vertical power distribution in rackmount, raceway and workbench applications. Includes 24 output receptacles with 2.795 inch center-to-center spacing, 15 ft AC line cord and lighted power switch with locking transparent cover to prevent accidental shutoff. Sturdy all-metal extruded aluminum housing stands up to demanding network, laboratory or factory environments. INPUT/OUTPUT: Input: NEMA L5-20P (twist lock)/Output: 22 NEMA 5-15R & 2 NEMA 5-20RELECTRICAL: 120V AC, 50/60Hz, 20A FORMAT: 72 in. corded, mountable power strip
Package Contents:
- Power Strip 120V AC
- PS7224-20T

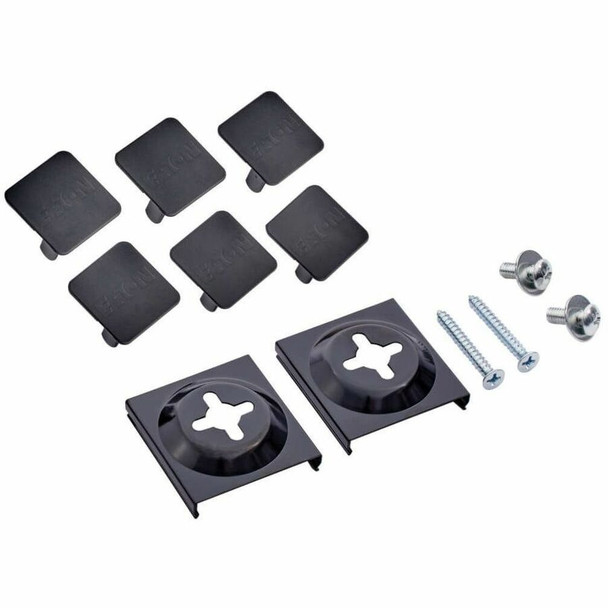

- Mounting hardware
- Instruction manual
Features
- Power Strip 120V AC
- PS7224-20T
- Mounting hardware
- Instruction manual
Certifications & Standards:
- UL1363
- cUL
Additional Information:
- Material of construction: Aluminum
- Form factors supported: Supports vertical or horizontal mounting in rack enclosures, raceways and a variety of other applications
- Switches: Lighted 2 position switch controls power to all outlets

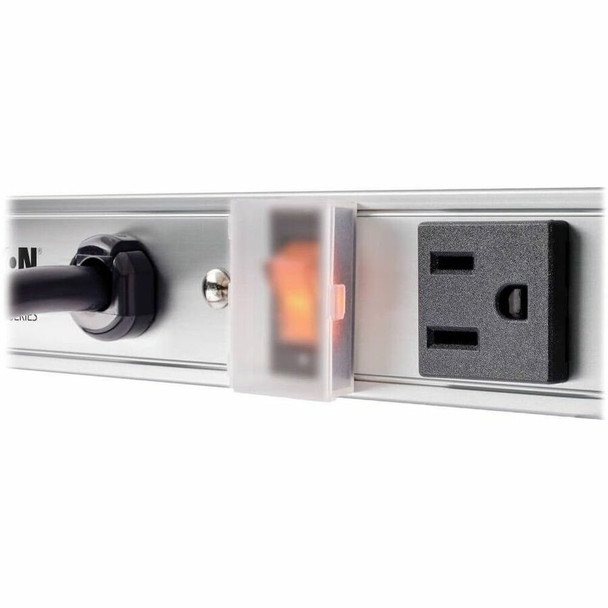

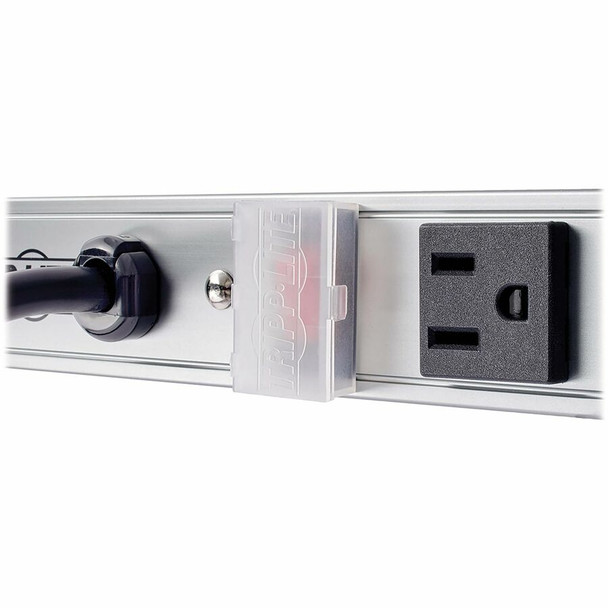

- Locking switch cover: Transparent on/off switch cover prevents accidental turn-off
Country of Origin:
Vietnam
Specs
| Power Description | |
| Maximum Frequency | 60 Hz |
| Power Rating | 2400 W |
| Power Switch | Yes |
| Maximum Output Voltage | 120 V AC |
| Input Voltage | 120 V AC |
| Maximum Input Current | 20 A |
| Physical Characteristics | |
| Form Factor | Rack-mountable |
| Weight (Approximate) | 6.60 lb |
| Product Color |
|
| Mount Type | Vertical |
| Height | 1.5" |
| Color Family | Dual Color |
| Width | 1.5" |
| Depth | 72" |
| Warranty | |
| Limited Warranty | Lifetime |
| General Information | |
| Brand Name | Tripp Lite series |
| Manufacturer Website Address | http://www.eaton.com |
| Marketing Information | Tripp Lite's PS7224-20T power strip offers 20 amp, 120V multi-outlet AC power distribution in a convenient 72 inch mountable housing with NEMA L5-20 locking input plug. Offers horizontal or vertical power distribution in rackmount, raceway and workbench applications. Includes 24 output receptacles with 2.795 inch center-to-center spacing, 15 ft AC line cord and lighted power switch with locking transparent cover to prevent accidental shutoff. Sturdy all-metal extruded aluminum housing stands up to demanding network, laboratory or factory environments. INPUT/OUTPUT: Input: NEMA L5-20P (twist lock)/Output: 22 NEMA 5-15R & 2 NEMA 5-20RELECTRICAL: 120V AC, 50/60Hz, 20A FORMAT: 72 in. corded, mountable power strip More from the Manufacturer |
| Product Type | Power Strip |
| Product Name | Power Strip 120V AC |
| Manufacturer | Eaton Corporation |
| Manufacturer Part Number | PS7224-20T |
| Technical Information | |
| Plug/Connector Type | NEMA L5-20P |
| Cord Length | 15 ft |
| Receptacles |
|
| Receptacles Spacing | 2.80" |
| Circuit Breaker | Yes |
