Tripplite

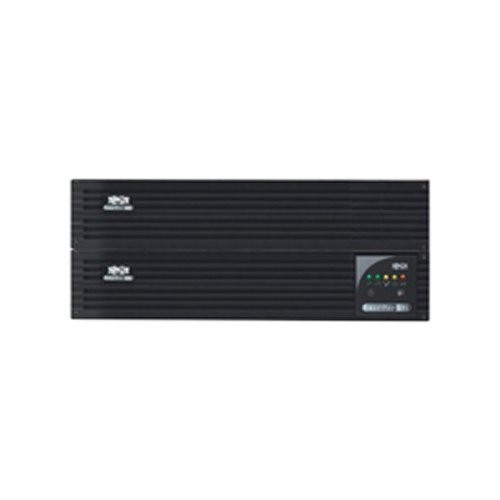

Tripp Lite UPS Smart 2200VA 1900W Rackmount AVR 120V Pure Sine Wave USB DB9 4U for Telecom (SMART2200CRMXL)
(No reviews yet)
Write a Review
- SKU:
- 18150890
- MPN:
- smart2200crmxl
- Availability:
- Out of stock
- Shipping:
- $263.16 (Fixed Shipping Cost)
- Stock Update:
- 07/03/2025 11:50:07 AM PST
- Stock Update:
- 07/03/2025 11:50:07 AM PST
Description
This item is brand-new, factory sealed.
SMART2200CRMXL 4U rackmount 2200VA/1900 watt UPS offers battery-derived sine wave AC output during power failures and extreme voltage variations. Line interactive Automatic Voltage Regulation (AVR) provides two levels of voltage boost during brownouts and one level of voltage cut during overvoltage conditions to maintain regulated 120V nominal output over an input range of 83-145V. Network management interfaces support simultaneous communications via USB port, DB9 serial port and optional SNMP/Web management accessory card slot. Optional SNMPWEBCARD offers remote management and control of the UPS via direct network connection. HID-compliant USB interface enables full integration with built-in power management and auto shutdown features of Windows and Mac OS X. Includes PowerAlert monitoring software with USB and serial cables. 2 Year Warranty standard. 3 Year Warranty with product registration.
Package Contents:
- SmartPro SMART2200CRMXL 2200VA Rack-mountable UPS
- SmartPro Compact 4U Rackmount UPS system
- 2 post rackmount installation brackets
- USB and Serial Cabling
- Owner's manual with warranty information
Features
Package Contents:
Tested to UL1778 (USA), CSA (Canada), NOM (Mexico), Class A (EMI)
PowerAlert Software
No
China
- SmartPro SMART2200CRMXL 2200VA Rack-mountable UPS
- SmartPro Compact 4U Rackmount UPS system
- 2 post rackmount installation brackets
- USB and Serial Cabling
- Owner's manual with warranty information
Certifications & Standards:
Tested to UL1778 (USA), CSA (Canada), NOM (Mexico), Class A (EMI)
Software Included:
PowerAlert Software
Recycled:
No
Country of Origin:
China
Specs
| Power Description | |
| Load Capacity (Watt) | 1900 W |
| Input Voltage | 110 V AC |
| Output Voltage | 120 V AC |
| Load Capacity (VA) | 2200 VA |
| Input Current | 16 A |
| Physical Characteristics | |
| Form Factor | Rack/Tower |
| Weight (Approximate) | 100.30 lb |
| Height | 7" |
| Width | 18" |
| Depth | 17.3" |
| Rack Height | 4U |
| Warranty | |
| Limited Warranty | 3 Year |
| Interfaces/Ports | |
| Modem (RJ-11) | Yes |
| USB | Yes |
| Serial Port | Yes |
| Battery Information | |
| Backup/Run Time (Full Load) | 11 Minute |
| Hot Swappable | Yes |
| Backup/Run Time (Half Load) | 28 Minute |
| Typical Battery Recharge Time | 3.60 Hour |
| General Information | |
| Brand Name | Tripp Lite series |
| Manufacturer Website Address | http://www.eaton.com |
| Marketing Information | Tripp Lite's SmartPro Compact Rackmount Uninterruptible Power Supply (UPS) offers line interactive voltage regulation, network grade surge suppression and long lasting battery support for critical network hardware during blackouts and extended power failures. Special reduced-depth housing, larger internal batteries, higher rated wattage and included 2 post rackmount installation hardware makes these systems ideal for network and telecom wiring closets and other limited-space installations. 97% line power mode efficiency saves operating costs over less efficient UPS types. Runtime is expandable with optional BP48V24-2U (limit 1), BP48V48RT4U (multi-pack compatible) and BP48V27-2US (multi-pack compatible) reduced-depth external battery packs. SMART2200CRMXL 4U rackmount 2200VA/1900 watt UPS offers battery-derived sine wave AC output during power failures and extreme voltage variations. Line interactive Automatic Voltage Regulation (AVR) provides two levels of voltage boost during brownouts and one level of voltage cut during overvoltage conditions to maintain regulated 120V nominal output over an input range of 83-145V. Includes NEMA 5-20P input plug, NEMA 5-15R and 5-15/20R output receptacles. Network management interfaces support simultaneous communications via USB port, DB9 serial port and optional network management accessory card slot. HID-compliant USB interface enables full integration with built-in power management and auto shutdown features of Windows and Mac OS X. Supports detailed monitoring of equipment load levels, self-test data and utility power conditions via all 3 network interfaces at once. PowerAlert monitoring software is available via free download. Emergency Power Off (EPO) interface. Integrated 3-bank programmable PDU switching supports load shedding and remote-reboot of up to 3 individual connected devices. 3-stage metered current monitoring and battery charge status LEDs. Utility power and voltage regulation LEDs. Audible alarm. Self-test. 2-post rackmount accessories included; 2-9USTAND tower stands. Field-replaceable, hot-swappable internal batteries and external battery packs. Attractive all-black color scheme. More from the Manufacturer |
| Product Type | Line-interactive UPS |
| Product Name | SmartPro SMART2200CRMXL 2200VA Rack-mountable UPS |
| Manufacturer | Eaton Corporation |
| Manufacturer Part Number | SMART2200CRMXL |
| Product Model | SMART2200CRMXL |
| Product Line | SmartPro |
| Packaged Quantity | 1 Each |
| Technical Information | |
| Receptacle Type |
|
| Receptacle Detail |
|
| Plug/Connector Type | NEMA 5-20P |
| Emergency Power OFF | Yes |
| Transfer Time | 5.50 ms |
| Management | |
| Network Management | SNMP Manageable |
