Tripplite

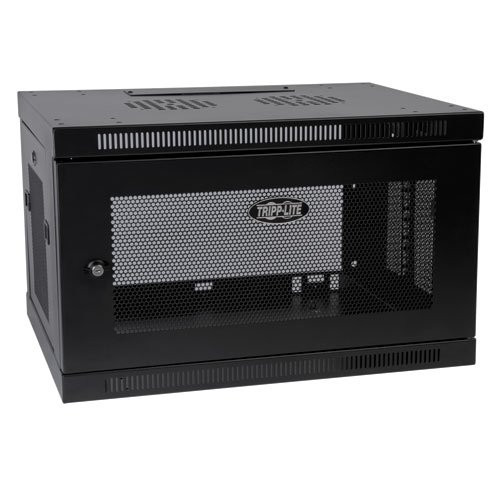

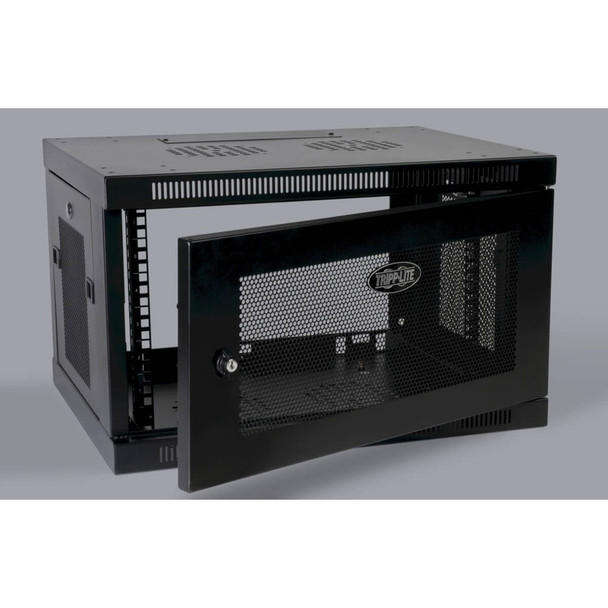

Tripp Lite 6U Wall Mount Rack Enclosure Server Cabinet w/ Door & Side Panels (SRW6U)
- SKU:
- 18061248
- MPN:
- srw6u
- Availability:
- Usually ships the same or next business day. In stock at our CA, GA, PA warehouses.
- Shipping:
- Calculated at Checkout
- Stock Update:
- 12/08/2025 07:22:59 PM PST
Bulk discount rates
Below are the available bulk discount rates for each individual item when you purchase a certain amount
| Buy 5 or above | and pay only $232.15 each 232.15 |
- Stock Update:
- 12/08/2025 07:22:59 PM PST
Description
This item is brand-new, factory sealed.
The SRW6U 6U Wall Mount Rack Enclosure Cabinet is designed to integrate wall-mounting, easy equipment access, and cable management in IT network applications with limited floor space. Ventilated front door and side panels allow generous airflow to keep equipment operating safely. Adjustable rack rails with square mounting holes accommodate up to 6U of standard 19" rackmount equipment. Supports up to 140 lbs of equipment. A sturdy wall-mount bracket allows the cabinet to quickly be hung on the wall. Meets all enclosure requirements towards PCI DSS (Payment Card Industry Data Security Standard) compliance.
Features
Ventilated front door and side panels for increased airflow
Environmentally Friendly:
Yes
Environmental Compliance:
Restriction of Hazardous Substances (RoHS)
Country of Origin:
China
Specs
| Physical Characteristics | |
| Form Factor | Wall Mountable |
| Weight (Approximate) | 29 lb |
| Rack Width | 19" |
| Maximum Weight Capacity | 140 lb |
| Height | 14.5" |
| Width | 23.5" |
| Depth | 17.5" |
| Rack Height | 6U |
| Warranty | |
| Limited Warranty | 5 Year |
| General Information | |
| Brand Name | Tripp Lite series |
| Manufacturer Website Address | http://www.eaton.com |
| Marketing Information | The SRW6U SmartRack 6U Low-Profile Switch-Depth Wall-Mount Rack Enclosure Cabinet is designed to house EIA-standard 19-inch rack equipment in network wiring closets, retail locations, classrooms, back offices and other areas with limited floor space where you need equipment to be secure, organized and out of the way. Constructed from heavy-duty steel with a durable black powder-coated finish, the cabinet has a maximum load capacity of 200 pounds.The side panels and front door lock securely to help prevent damage, tampering or theft. The front, top, bottom and removable side panels are vented, which allows air to flow freely and keep equipment cool. The reversible front door can open left or right by rotating the cabinet 180° before mounting. Convenient top and bottom ports allow easy cable routing. The SRW6U comes fully assembled and ready to mount to the wall, or use Tripp Lite's optional SRCASTER rolling caster kit to make it a mobile rack. Square and threaded mounting holes and numbered rack spaces make equipment installation easy. The vertical mounting rails adjust in 7/8-inch increments to accommodate equipment up to 16.5 inches deep, such as network switches and patch panels. More from the Manufacturer |
| Product Type | Rack Cabinet |
| Product Name | SRW6U Wall mount Rack Enclosure Server Cabinet |
| Manufacturer | Eaton Corporation |
| Manufacturer Part Number | SRW6U |
| Product Model | SRW6U |
| Product Line | SmartRack |
