Tripp Lite U234000UGI USB Galvanic Isolator for Patient Care
- SKU:
- 21502754
- MPN:
- u234-000-ugi
- Availability:
- Out of stock
- Stock Update:
- 05/25/2026 04:17:21 AM PST
- Stock Update:
- 05/25/2026 04:17:21 AM PST
Description
This item is brand-new, factory sealed.
Features | Protects Sensitive Computing Equipment and USB Peripherals in Medical Environments

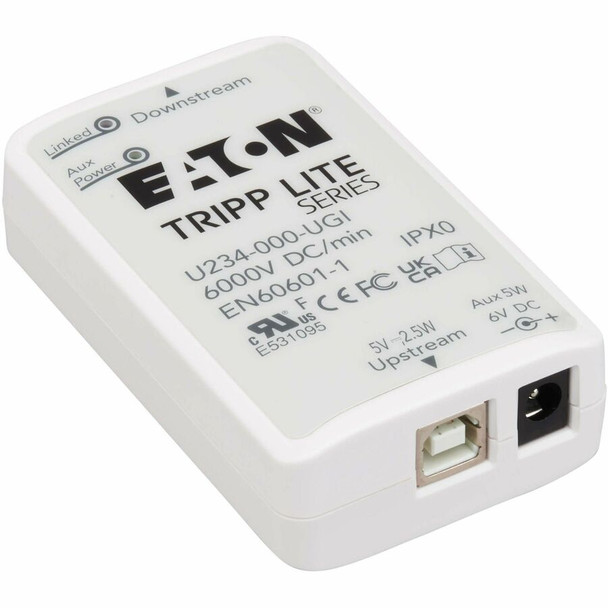

The U234-000-UGI makes it easier to integrate non-medical USB devices into ME (Medical Environment) systems by creating a 6kV DC isolation barrier between the host and peripheral to reduce risk from electrical surges and EMI (electromagnetic interference)/RFI (radio frequency interference) line noise. The isolator can protect critical equipment with 6,000V isolation for up to one minute. The IP40 housing protects against solid substances of one millimeter or more.
Complies with IEC 60601-1 Standards for Use in Patient Care Vicinities
The U234-000-UGI complies with IEC 60601-1 and EMC/IEC 60601-1-2 safety standards for a network connection between a medical device and an Ethernet network or non-medical device (PC or laptop). Because it meets IEC 60601-1 standards, this medical isolator can be used in patient care vicinities. It is 2MOPP certified to provide a redundant layer of electric protection. It is also UL/cUL recognized (E531095) and it meets CAN/CSA-C22.2 No. 60601-1 safety standards.
Plug-and-Play for Immediate Use

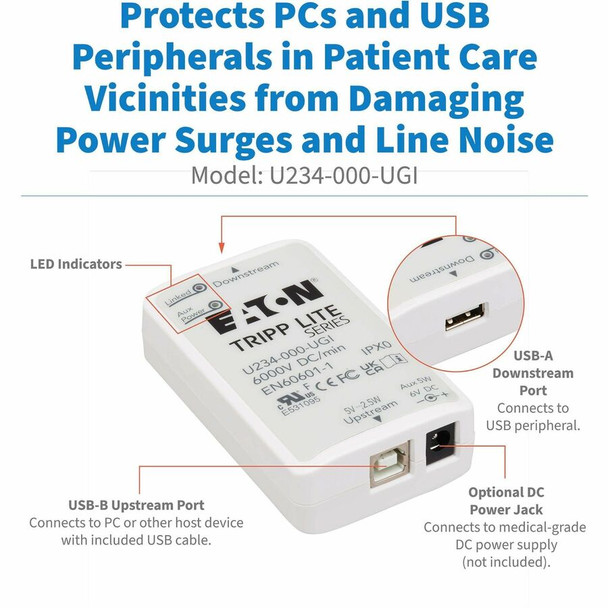

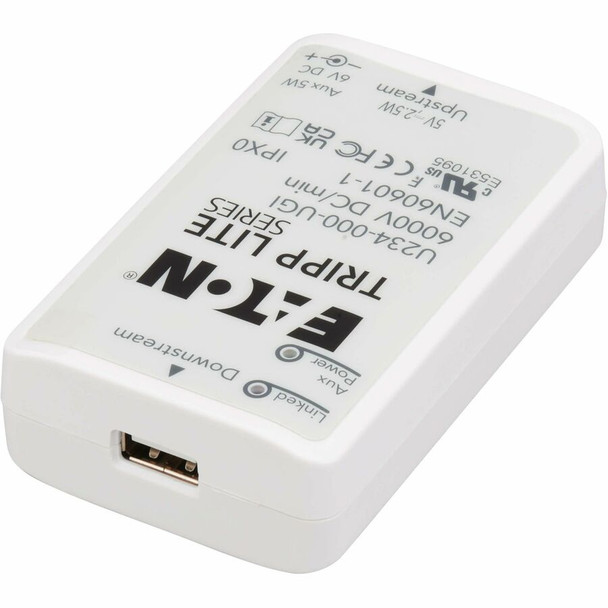

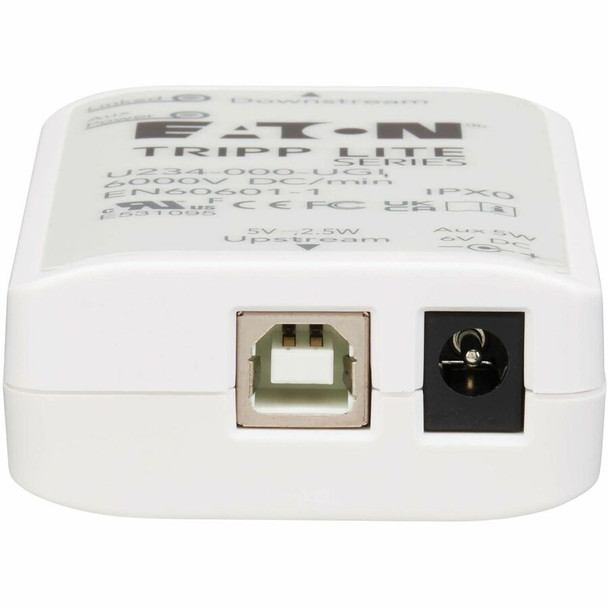

Just connect the included USB cable's USB-B plug to the isolator's "Upstream" port, then the cable's USB-A plug to the host device. Connect the desired USB peripheral to isolator's "Downstream" USB-A port with a user-supplied cable. A blue LED will illuminate to indicate a connection has been established and the device can be used. The self-powered U234-000-UGI can provide an isolated 5V DC @ 250mA current output.
TAA-Compliant for GSA Schedule Purchases
The U234-000-UGI is compliant with the Federal Trade Agreements Act (TAA), which makes it eligible for GSA (General Services Administration) Schedule and other federal procurement contracts.

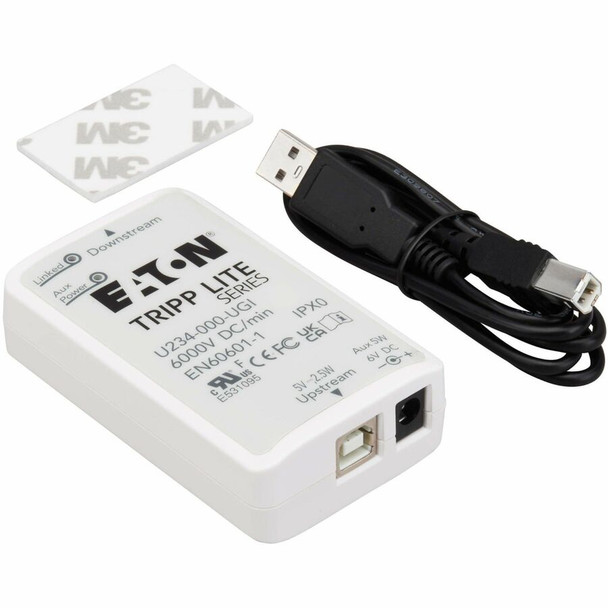

Package Contents:
- U234-000-UGI Surge Suppressor/Protector
- USB-A to USB-B Cable (M/M), 3 ft. (0.9 m)
- User Documentation
Features
IP40
Package Contents:
- U234-000-UGI Surge Suppressor/Protector
- USB-A to USB-B Cable (M/M), 3 ft. (0.9 m)
- User Documentation
Certifications & Standards:
- 2MOPP
- CAN/CSA-C22.2 No. 60601-1 (Canada)
- EN 60601-1
- CE (Europe)
- UL/cUL
TAA Compliant:
Yes
Application/Usage:
Computer
Notebook
Tablet
Smartphone
Environmental Compliance:
Restriction of Hazardous Substances (RoHS)
Country of Origin:
Taiwan
Specs
| Power Description | |
| Maximum Spike Voltage | 6 kV DC |
| Input Voltage | 6 V DC |
| Output Voltage | 5 V DC |
| Physical Characteristics | |
| Product Material |
|
| Product Color |
|
| Power Cord/Cable Length | 3 ft |
| Height | 0.9" |
| Color Family | Dual Color |
| Width | 2.2" |
| Depth | 3.5" |
| Warranty | |
| Limited Warranty | 1 Year |
| General Information | |
| Brand Name | Tripp Lite series |
| Manufacturer Website Address | http://www.eaton.com |
| Marketing Information | Features | Protects Sensitive Computing Equipment and USB Peripherals in Medical Environments The U234-000-UGI makes it easier to integrate non-medical USB devices into ME (Medical Environment) systems by creating a 6kV DC isolation barrier between the host and peripheral to reduce risk from electrical surges and EMI (electromagnetic interference)/RFI (radio frequency interference) line noise. The isolator can protect critical equipment with 6,000V isolation for up to one minute. The IP40 housing protects against solid substances of one millimeter or more. Complies with IEC 60601-1 Standards for Use in Patient Care Vicinities The U234-000-UGI complies with IEC 60601-1 and EMC/IEC 60601-1-2 safety standards for a network connection between a medical device and an Ethernet network or non-medical device (PC or laptop). Because it meets IEC 60601-1 standards, this medical isolator can be used in patient care vicinities. It is 2MOPP certified to provide a redundant layer of electric protection. It is also UL/cUL recognized (E531095) and it meets CAN/CSA-C22.2 No. 60601-1 safety standards. Plug-and-Play for Immediate Use Just connect the included USB cable's USB-B plug to the isolator's "Upstream" port, then the cable's USB-A plug to the host device. Connect the desired USB peripheral to isolator's "Downstream" USB-A port with a user-supplied cable. A blue LED will illuminate to indicate a connection has been established and the device can be used. The self-powered U234-000-UGI can provide an isolated 5V DC @ 250mA current output. TAA-Compliant for GSA Schedule Purchases The U234-000-UGI is compliant with the Federal Trade Agreements Act (TAA), which makes it eligible for GSA (General Services Administration) Schedule and other federal procurement contracts. |
| Product Type | Surge Suppressor/Protector |
| Product Name | U234-000-UGI Surge Suppressor/Protector |
| Manufacturer | Eaton Corporation |
| Manufacturer Part Number | U234-000-UGI |
| Product Model | U234-000-UGI |
| Technical Information | |
| Plug/Connector Type | USB B |
| Receptacles | 1 x USB Type A |
| Dataline Protection | USB |
| Features | LED Indicator |
| Environmental Conditions | |
| Maximum Storage Temperature | 185°F (85°C) |
| Maximum Operating Temperature | 104°F (40°C) |
| Minimum Storage Temperature | -13°F (-25°C) |
| Minimum Operating Temperature | 32°F (0°C) |
