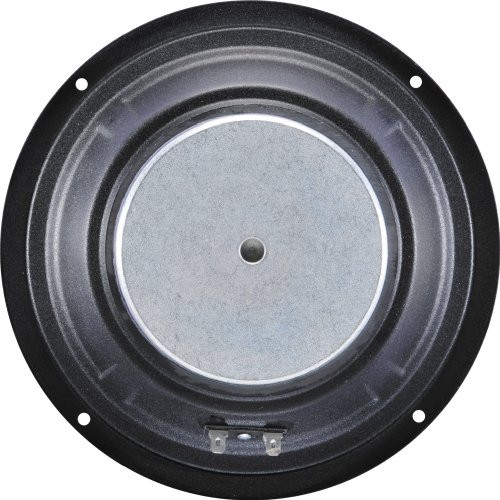

Tacony Midrange - 50 W RMS TV0615MR

This item is brand-new, factory sealed.

* 6-in mid-range driver providing 97dB sensitivity & 50 Watts RMS (AES standard) power handling
* 1.5-in high temperature copper voice coil wound on polyimide former for increased reliability
* Very compact model suitable for use in 3-way systems
* Optimised to deliver detailed reproduction of mid-range frequencies
* Closed back chassis simplifies cabinet manufacture, eliminating need for separate mid-range enclosure
* Nominal diameter: 152mm/6-in
* Power rating: 1.: 50 Watts RMS
* Nominal impedance: 8 Ohms
* Sensitivity: 2: 97dB
* Frequency range: 500-5000Hz
* Voice coil diameter: 38mm/1.5-in
* Chassis type: Pressed steel
* Magnet type: Ferrite
* Magnet weight: 0.48kg/17oz
* Coil material: Round copper
* Former material: Polyimide
* Cone material: Kevlar loaded paper
* Surround material: Treated paper
* Suspension: Single
Small Signal Parameters
* Fs: 500Hz
* Re: 5.7O
* Le (at 1kHz): 0.27mH

* Overall diameter: 178mm/7.01-in
* Overall depth: 74mm/2.91-in
* Cut-out diameter: 147mm/5.79-in
* Mounting slot dimensions: 4.3mm/0.17-in
* Number of mounting slots: .: 4
* Mounting PCD range.: 168.5mm/6.63-in
* Unit weight: 1.4kg/3.1lb
* Packed Dimensions & Weight:
* Single pack size: W x D x H: 190mm x 200mm x 90mm; /7.5in x 7.9in x 3.5-in
* Single pack Weight: . . 2kg/4.4lb
* Multipack (140) size W x D x H . 1070 mm x 850mm x 860mm; /42.1in x 33.5in x 33.9-in
* Multipack (140) weight.: 295kg/650lb [Single]
