ttpremium Toughpower GF3 1650W Gold - TT Premium Edition (ps-tpd-1650fnfagu-4)

This item is brand-new, factory sealed.

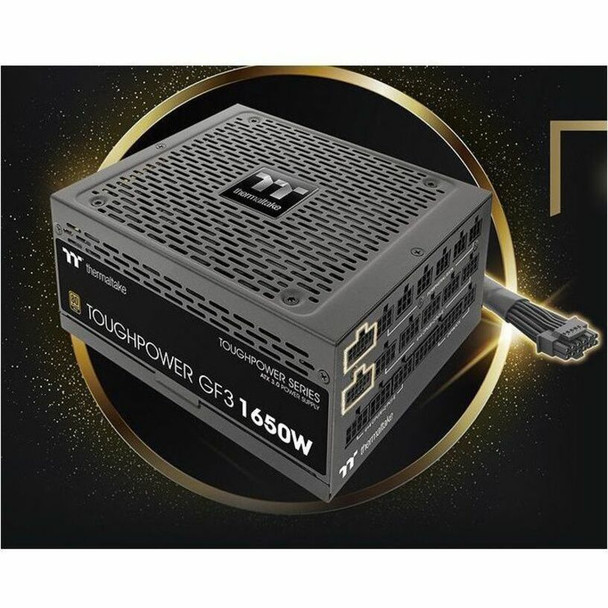

Toughpower GF3 1650W Gold - TT Premium Edition

Designed with a native PCIe 12+4pin connector, the Toughpower GF3 series is compatible with Intel s ATX 3.0 specification and is built for next-gen PCIe 5.0 graphics cards.

The wattage marked on 12VHPWRs connector is the recommended wattage. (Ref. Intel design guideline) The native 16 PIN (12VHPWR) PCIe connector of GF3 1200W can deliver up to 600W for PCIe 5.0 graphics cards.

Note: Recommended wattage is an estimation of system power demand. Actual power demands may vary based on specific components, usage, and many other factors.

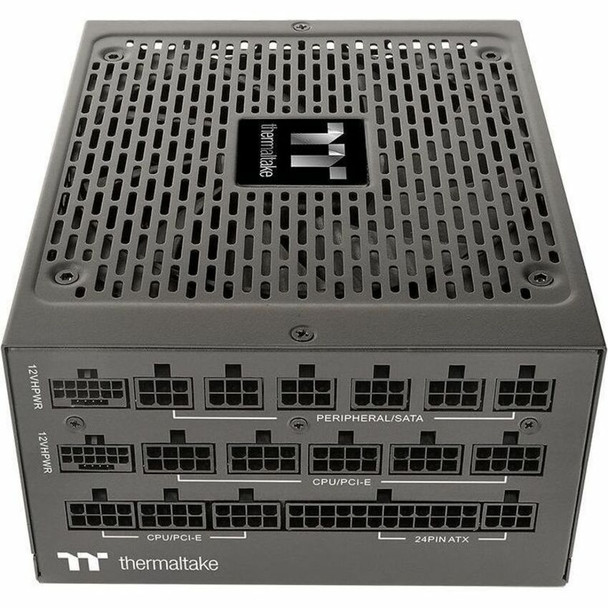

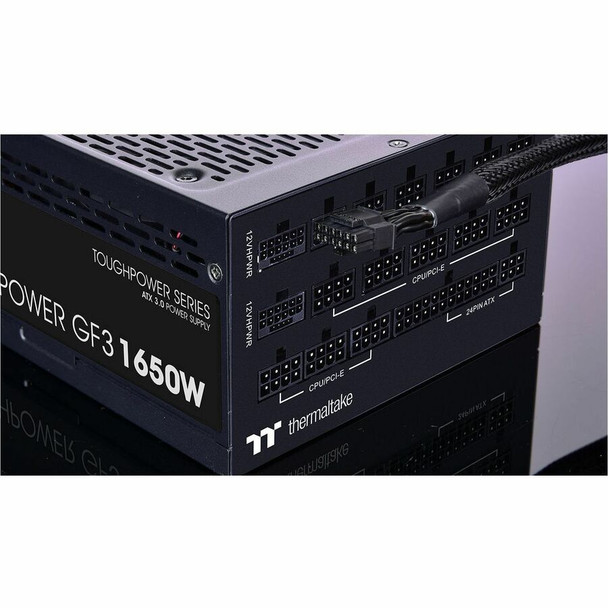

PCIe Gen 5.0 Ready! Designed with two native PCIe 12+4pin modular connectors, the Toughpower GF3 series is built for the next-gen PCIe 5.0 graphic cards and is compatible with Intel ATX 3.0 specifications. The fully modular Toughpower GF3 series comes in 1650W, 1350W, 1200W, 1000W, 850W and 750W and is built to deliver 80 PLUS Gold efficiency. Aimed at providing the best performance, the Toughpower GF3 1650W comes with 100% high quality Japanese capacitors and other premium components to help deliver continuous and stable power.


Fully Compatible With Intel PSDG ATX 3.0 Specifications

Toughpower GF3 series is fully compatible with Intel ATX 3.0 Specifications which supports up to 200% power excursion, reaches 60% low load efficiency and complies with required power supply timing standards. The GF3 series can sustain up to 3x GPU power excursion and 2x total power excursion.


Made to Comply with the Latest Graphics Cards

As the power consumption of graphics cards has increased, so has their demand for power. The GF3 series is designed to support NVIDIA and AMD graphics cards, ready to supply the graphics card according to their different ways of connections. WATTS
1650W MODEL
TPD-1650AH3FSG MAX. OUTPUT CAPACITY
1650W COLOR
Black PFC (POWER FACTOR CORRECTION)
Active PFC POWER GOOD SIGNAL
100-250 msec INPUT CURRENT
20 - 16A INPUT FREQUENCY RANGE
50-60Hz INPUT VOLTAGE
100 - 240V or more OPERATING TEMPERATURE
0^oC to + 50^oC OPERATING HUMIDITY
20% to 90%,non-condensing STORAGE TEMPERATURE
-40^oC to + 70^oC STORAGE HUMIDITY
20% to 95%, non-condensing COOLING SYSTEM
14cm hydraulic bearing fan EFFICIENCY
Meet 80 PLUS Gold at 115Vac input. MTBF
100,000 hrs minimum SAFETY APPROVAL
CE/UKCA/cTUVus/TV/FCC/IC/BSMI/EAC/CB/BIS/KCC PCI-E 6+2PIN
9 PCIE 12+4PIN
2Item Dimension (L inchxW inchxH inch)
14 x 10 x 7

Weight
10.56 lb

Warranty Information
10 years
