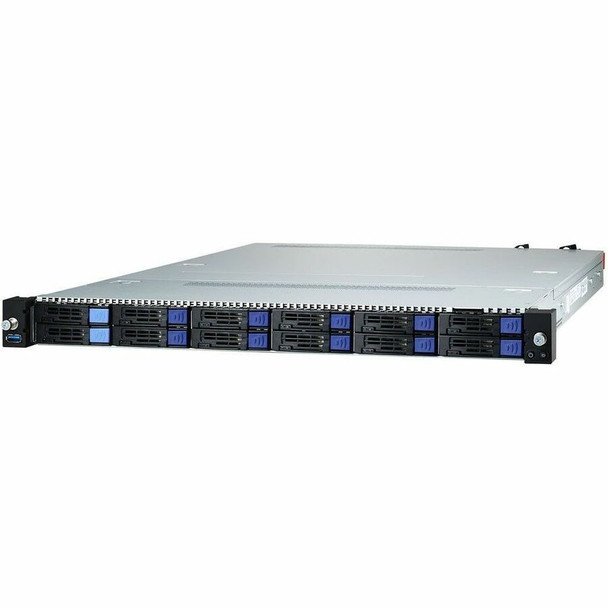

Tyan Thunder CX GC68AB7126 Barebone System - 1U Rack-mountable - Socket LGA-4189 - 2 x Processor Support (265145)
(No reviews yet)
Write a Review
- SKU:
- 20016736
- MPN:
- 265145
- Availability:
- Usually ships the same or next business day. In stock at our CA warehouse.
- Shipping:
- Calculated at Checkout
- Stock Update:
- 02/07/2026 10:59:31 PM PST
- Stock Update:
- 02/07/2026 10:59:31 PM PST
Description
This item is brand-new, factory sealed.
Thunder CX GC68A-B71261U2S Cloud Server, 12 SFF
16 DIMM slots w / DDR4 3200 memory support
12 2.5" SATA w/ opt. 4 NVMe U.2 hot-swap, tool-less drive bays
2 FH/HL PCIe 4.0 x16 slots
PCIe 3.0 x16 OCP v2.0 LAN mezzanine slot (Type 1)
1 NVMe M.2 22110 / 2280 slot
(1+1) RPSU System
Form Factor
1U Rackmount
Chassis Model
GC68A
Motherboard Name
S7126GM2NRE Front Panel
Buttons
(1) ID / (1) PWR
LEDs
(1) ID / (1) PWR
I/O Ports
(1) USB 3.0 port External Drive Bay
Qty / Type
(12) 2.5" hot-swap SATA 6Gb/s with (2) 2.5" hot-swap NVMe Front Drive Bay Interface
(12) SATA 6Gb/s and SAS w/ (2) NVMe Front HDD Backplane Support
NVMe / SATA 6Gb/s Notification
The SAS/SATA HDD backplane is connected to onboard SATA connection by default. Please contact Tyan technical support if a discrete SAS HBA/RAID adapter is required. System Cooling Configuration
FAN
(6) 4cm fans Power Supply
Type
RPSU Input Range
AC 100 to 240V/12 to 6A Frequency
50-60 Hz Output Watts
850 Watts Efficiency
80 plus Platinum Redundancy
1+1 Serviceability
Hot-swap Processor
Qty / Socket Type
(2) LGA4189
Supported CPU Series
3rd Gen Intel Xeon Scalable Processor
Thermal Design Power Wattage
Max up to 205W (TDP)
System Bus
Up to 11.2/10.4 GT/s with Intel Ultra Path Interconnect (UPI) support Chipset
PCH
Intel C621A Memory
Supported DIMM Qty
(8)+(8) DIMM slots
DIMM Type / Speed
DDR4 ECC RDIMM/RDIMM 3DS/LRDIMM/LRDIMM 3DS 3200
Capacity
Up to 2,048GB RDIMM/ 4,096GB LRDIMM/ 4,096GB RDIMM 3DS/LRDIMM 3DS Note: Follow latest Intel DDR4 Memory POR
Memory channel
8 Channels per CPU
Memory voltage
1.2V Expansion Slots
PCIe
(2) PCIe Gen.4 x16 slots (FH/HL)
Pre-installed TYAN Riser Card (PCIe Gen.3)
(1) M7126-L16-1F riser card for (1) PCIe Gen.4 x16 slot / (1) M7126-R16-1F riser card for (1) PCIe Gen.4 x16 slot
Others
(1) PCIe Gen.3 x16 OCP v2.0 mezzanine slot
Physical Dimension Abbreviation
HH/HL (Half-height / Half-length): 2.7" x 6.6" (68.9 x 167.7mm) LAN
Qty / Port
(2) GbE ports + (1) GbE dedicated for IPMI
Controller
Intel I210-AT
PHY
Realtek RTL8211E Stotage sSATA
Connector
(1) Mini-SAS HD (4 ports)
Controller
Intel C621A
Speed
6Gb/s
RAID
RAID 0/1/10/5 (Intel RSTe)
Package Contents:
- Thunder CX GC68AB7126 Barebone System
- Quick Installation Guide
Features
Package Contents:
Restriction of Hazardous Substances (RoHS) 6
- Thunder CX GC68AB7126 Barebone System
- Quick Installation Guide
Environmental Compliance:
Restriction of Hazardous Substances (RoHS) 6
Specs
| Controllers | |
| RAID Supported | Yes |
| Controller Type |
|
| RAID Levels | 0, 1, 5, 10 |
| Power Description | |
| Thermal Design Power | 205 W |
| Maximum Power Supply Wattage | 850 W |
| Number of Power Supplies Installed | 2 |
| Frequency |
|
| Input Voltage |
|
| Processor | |
| Processor Supported |
|
| Processor Socket | Socket LGA-4189 |
| 64-bit Processing | Yes |
| Number of Processors Supported | 2 |
| Chipset | |
| Chipset Manufacturer | Intel |
| Chipset Model | C621A |
| Physical Characteristics | |
| Form Factor | Rack-mountable |
| Weight (Approximate) | 23.15 lb |
| Height | 1.7" |
| Width | 17.3" |
| Rack Height | 1U |
| Depth | 26.8" |
| Warranty | |
| Limited Warranty | 3 Year |
| I/O Expansions | |
| Total Number of Expansion Slots | 5 |
| Number of M.2 Interfaces | 2 |
| Number of PCI Express x16 Slots | 3 |
| Number of Total Expansion Bays | 14 |
| Memory | |
| Memory Technology | DDR4 SDRAM |
| Total Number of Memory Slots | 16 |
| Memory Standard | DDR4-3200/PC4-25600 |
| Display & Graphics | |
| Graphics Memory Accessibility | Shared |
| Graphics Memory Technology | DDR4 SDRAM |
| General Information | |
| Brand Name | Mitac |
| Manufacturer Website Address | http://www.tyan.com |
| Product Type | Barebone System |
| Product Name | Thunder CX GC68AB7126 Barebone System |
| Manufacturer | Tyan Computer Corp |
| Manufacturer Part Number | B7126G68AV10E2HR |
| Product Model | GC68AB7126 |
| Product Line | Thunder CX |
| Packaged Quantity | 1 |
| Storage | |
| Supported Storage Drive Interfaces |
|
| Supported Storage Drive Types |
|
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Number of VGA Ports | 1 |
| Total Number of USB Ports | 3 |
| Number of USB 3.0 Ports | 3 |
| Number of Network (RJ-45) Ports | 3 |
| Network & Communication | |
| Ethernet Technology | Gigabit Ethernet |
