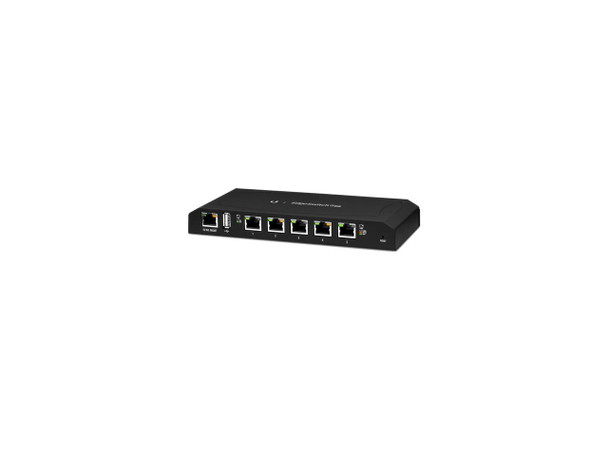

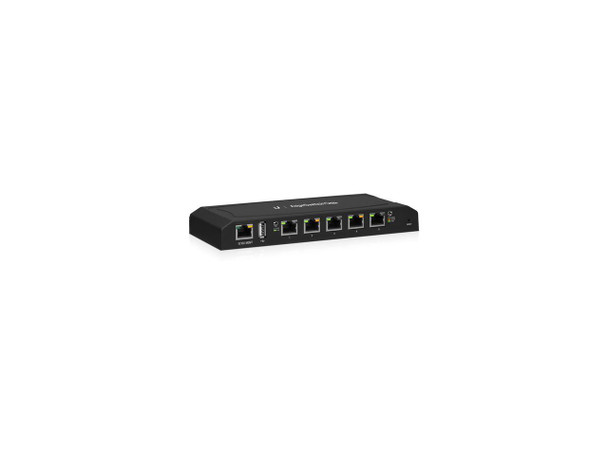

Ubiquiti EdgeSwitch ES-5XP Ethernet Switch
- SKU:
- 20518619
- MPN:
- es-5xp
- Availability:
- Usually ships the same or next business day. In stock at our GA warehouse.
- Shipping:
- Calculated at Checkout
- Stock Update:
- 12/18/2025 07:09:02 PM PST
Bulk discount rates
Below are the available bulk discount rates for each individual item when you purchase a certain amount
| Buy 2 or above | and pay only $108.39 each 108.39 |
- Stock Update:
- 12/18/2025 07:09:02 PM PST
Description
This item is brand-new, factory sealed.
Advanced Gigabit PoE Managed SwitchIntroducing the Advanced Power over Ethernet Switches, EdgeSwitch™ XP from Ubiquiti Networks. EdgeSwitch XP delivers reliable passive PoE and fast 10/100/1000 Mbps connectivity to attached Ubiquiti devices and other devices that support passive PoE.
To connect your PoE devices, simply enable PoE in the easy-touse EdgeSwitch XP Configuration Interface. Each port can be individually configured to provide PoE, so both PoE and non-PoE devices can be connected.
EdgeSwitch XP is available in multiple versions to meet your deployment needs.
- EdgeSwitch 5XP is a cost-effective, 5-port Gigabit switch with 24V PoE support.
- EdgeSwitch 8XP is an industrialstrength, 8-port Gigabit switch with 150 watts of power capable of powering 24V or 48V devices. Output voltage is controlled by the software.
- EdgeSwitch 16XP features dual EdgeSwitch 8XP systems in a rack-mountable, 1U form factor with 300 watts of power supporting up to 16 devices.
EdgeSwitch XP allows network architects to design cleaner, less cluttered deployments. For example, integrating one EdgeSwitch 8XP can eliminate the need for the following:
- 8 PoE adapters
- 8 power cords
- 8 power outlets
- 8 Ethernet patch cables
Intuitive Configuration Interface
EdgeSwitch XP provides a user-friendly configuration interface designed for efficient setup and control. Accessed via a secured management port and web browser, the EdgeSwitch XP Configuration Interface provides intuitive management with a virtual view of the ports, showing physical connectivity, speed, and PoE status
Advanced Features
EdgeSwitch XP is loaded with a variety of advanced features, including
- Port monitoring
- System connection and management services
- Virtual Local Area Network (VLAN) configuration
- Spanning Tree Protocol (STP)/ Rapid Spanning Tree Protocol (RSTP)
- Jumbo Frame Support
- Ping Watchdog
- Configurable alerts
Package Contents:
- EdgeSwitch ES-5XP Ethernet Switch
- Power Adapter
Features
Package Contents:
- EdgeSwitch ES-5XP Ethernet Switch
- Power Adapter
Specs
| Management & Protocols | |
| Manageable | Yes |
| Power Description | |
| Redundant Power Supply Supported | No |
| Power Source | Power Adapter |
| Physical Characteristics | |
| Form Factor | Wall Mountable |
| Weight (Approximate) | 8.82 oz |
| Height | 1.1" |
| Width | 7.8" |
| Depth | 3.4" |
| Interfaces/Ports | |
| Uplink Port | No |
| Stack Port | No |
| Port/Expansion Slot Details | 5 x Gigabit Ethernet Network |
| Total Number of Network Ports | 5 |
| Modular | No |
| General Information | |
| Brand Name | Ubiquiti |
| Manufacturer Website Address | http://www.ui.com |
| Marketing Information | Advanced Gigabit PoE Managed Switch Introducing the Advanced Power over Ethernet Switches, EdgeSwitch™ XP from Ubiquiti Networks. EdgeSwitch XP delivers reliable passive PoE and fast 10/100/1000 Mbps connectivity to attached Ubiquiti devices and other devices that support passive PoE. To connect your PoE devices, simply enable PoE in the easy-touse EdgeSwitch XP Configuration Interface. Each port can be individually configured to provide PoE, so both PoE and non-PoE devices can be connected. EdgeSwitch XP is available in multiple versions to meet your deployment needs. EdgeSwitch 5XP is a cost-effective, 5-port Gigabit switch with 24V PoE support. EdgeSwitch 8XP is an industrialstrength, 8-port Gigabit switch with 150 watts of power capable of powering 24V or 48V devices. Output voltage is controlled by the software. EdgeSwitch 16XP features dual EdgeSwitch 8XP systems in a rack-mountable, 1U form factor with 300 watts of power supporting up to 16 devices. Simplify Your Deployment EdgeSwitch XP allows network architects to design cleaner, less cluttered deployments. For example, integrating one EdgeSwitch 8XP can eliminate the need for the following: 8 PoE adapters 8 power cords 8 power outlets 8 Ethernet patch cables EdgeSwitch XP deployments increase efficiency and greatly reduce potential failure points - resulting in faster installations and less maintenance and troubleshooting. Intuitive Configuration Interface EdgeSwitch XP provides a user-friendly configuration interface designed for efficient setup and control. Accessed via a secured management port and web browser, the EdgeSwitch XP Configuration Interface provides intuitive management with a virtual view of the ports, showing physical connectivity, speed, and PoE status Advanced Features EdgeSwitch XP is loaded with a variety of advanced features, including Port monitoring System connection and management services Virtual Local Area Network (VLAN) configuration Spanning Tree Protocol (STP)/ Rapid Spanning Tree Protocol (RSTP) Jumbo Frame Support Ping Watchdog Configurable alerts |
| Product Type | Ethernet Switch |
| Product Name | EdgeSwitch ES-5XP Ethernet Switch |
| Manufacturer | Ubiquiti Inc. |
| Manufacturer Part Number | ES-5XP |
| Product Model | ES-5XP |
| Product Line | EdgeSwitch |
| Media & Performance | |
| Ethernet Technology | Gigabit Ethernet |
| Media Type Supported | Twisted Pair |
| Network Technology | 10/100/1000Base-T |
| Network & Communication | |
| Layer Supported | 2 |
Warranty Information
All Items are Brand New, Factory Sealed and come with a standard warranty. [Read our policies]
