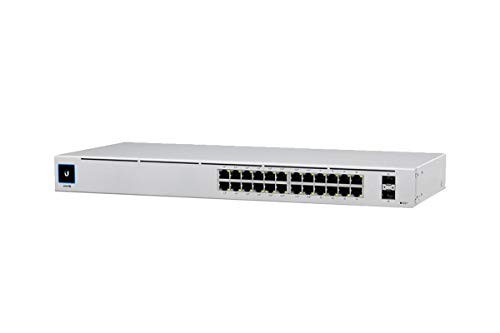

Ubiquiti USW24POE Ethernet Switch
- SKU:
- 19150135
- MPN:
- usw-24-poe
- Availability:
- Usually ships the same or next business day. In stock at our CA, GA, IL, PA warehouses.
- Shipping:
- Calculated at Checkout
- Stock Update:
- 03/24/2026 07:08:49 PM PST
Bulk discount rates
Below are the available bulk discount rates for each individual item when you purchase a certain amount
| Buy 3 or above | and pay only $401.66 each 401.66 |
- Stock Update:
- 03/24/2026 07:08:49 PM PST
Description
This item is brand-new, factory sealed.
Expand and power your network with the UniFi® PoE Switch, part of the Ubiquiti® UniFi Enterprise System. It is available in two models:- USW-16-POE 16 RJ45 ports with 2 SFP ports
- USW-24-POE 24 RJ45 ports with 2 SFP ports
Measuring only 7.9" in depth, the UniFi PoE Switch is designed for convenient installation:
- rackmounted in a SOHO rack cabinet
- placed on a desktop
SFP ports enable network uplinks of up to 1 Gbps.
Fanless, Silent Cooling
The UniFi PoE Switch features fanless, silent thermal cooling, so it can be located in any workspace.
Switching Performance
The UniFi PoE Switch offers the forwarding capacity to simultaneously process traffic on all ports at line rate without any packet loss.
802.3af/at PoE
PoE support simplifies your network infrastructure and cabling. PoE ports offer 802.3af/at to power your PoE devices, such as UniFi APs and cameras.
Package Contents:
- USW-24-POE Layer 3 Switch
- Rack Mount Hardware
Features
Certifications & Standards:
Waste Electrical and Electronic Equipment Directive (WEEE)
- CE
- FCC
- IC
- Anatel: 00593-21-08356
Additional Information:
- Switching Capacity: 52 Gbps
- Total Non-Blocking Throughput: 26 Gbps
- Forwarding Rate: 39 Mpps
- Supported VLANs: 1,000
- MAC Address Table Size: 8,000
- Packet Buffer Size: 0.5 MB
- Management: Ethernet, AR
- Heat Dissipation: 85.3 BTU/hr (Excluding PoE Output)
- Supported Rack Depth: 400~1200 mm (15.7-47.2")
- LCM Display: 1.3" touchscreen
- ESD Protection: Air: ± 16kV, contact: ± 12kV
- Ambient Operating Temperature: -5 to 40° C (23 to 104° F)
- Ambient Operating Humidity: 10 to 90% noncondensing
- NDAA Compliant: Yes
- LACP Port Aggregation: Yes
- STP & RSTP: Yes
- Advanced IGMP Configuration (Querier, Fast Leave, Router Port): Yes
- MAC-Based ACLs & Device Isolation: Yes
- DHCP Snooping & Guarding: Yes
- Egress Rate Limit: Yes
- Storm Control: Yes
- Multicast & Broadcast Rate Limiting: Yes
- MAC Address Blocking: Yes
- IP-Based ACLs & Network Isolation: Yes
- MAC-Based Port Restriction: Yes
- Port Isolation: Yes
- Jumbo Frames: Yes
- LLDP-MED: Yes
- Voice VLAN: Yes
- Virtual Network Override: Yes
Application/Usage:
Network
Wireless Access Point
Security Camera
Environmental Compliance:
Waste Electrical and Electronic Equipment Directive (WEEE)
Specs
| Management & Protocols | |
| Manageable | Yes |
| Power Description | |
| Power Source | AC/DC |
| PoE Budget | 95 W |
| Frequency |
|
| Input Voltage |
|
| PoE (RJ-45) Port | Yes |
| Power Consumption | 120 W |
| Physical Characteristics | |
| Product Material | SGCC Steel |
| Form Factor | Rack-mountable |
| Weight (Approximate) | 6.61 lb |
| Height | 1.7" |
| Compatible Rack Unit | 1U |
| Width | 17.4" |
| Depth | 7.9" |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Port/Expansion Slot Details |
|
| Total Number of Network Ports | 24 |
| I/O Expansions | |
| Total Number of Expansion Slots | 2 |
| Number of SFP Slots | 2 |
| Expansion Slot Type | SFP |
| General Information | |
| Brand Name | Ubiquiti |
| Manufacturer Website Address | http://www.ui.com |
| Product Type | Ethernet Switch |
| Product Name | USW-24-POE Ethernet Switch |
| Manufacturer | Ubiquiti Inc. |
| Manufacturer Part Number | USW-24-POE |
| Product Model | USW-24-POE |
| Media & Performance | |
| Ethernet Technology | Gigabit Ethernet |
| Maximum Data Transfer Rate | 128 MB/s |
| Media Type Supported |
|
| Network Technology |
|
| Network & Communication | |
| Layer Supported | 2 |
| Networking Standards | IEEE 802.1x |
| Technical Information | |
| Features |
|
