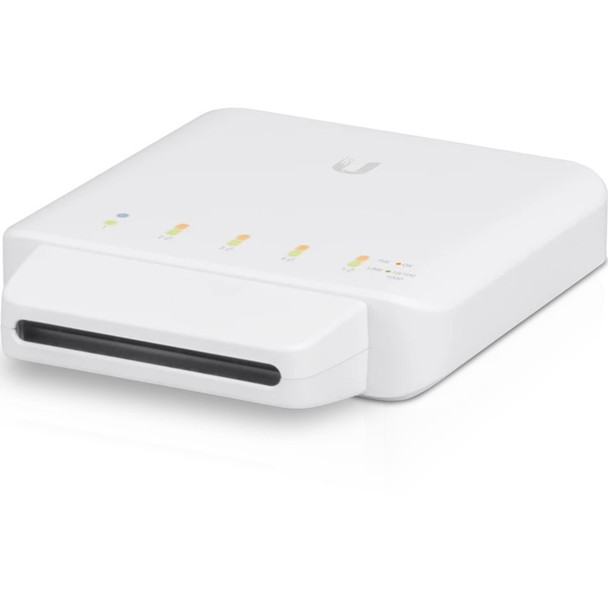

Ubiquiti 5-Port Layer 2 Gigabit Switch With PoE Support (usw-flex)
- SKU:
- 18474805
- MPN:
- usw-flex
- Availability:
- Usually ships the same or next business day. In stock at our CA, GA, IL warehouses.
- Shipping:
- Calculated at Checkout
- Stock Update:
- 02/09/2026 05:08:52 PM PST
Bulk discount rates
Below are the available bulk discount rates for each individual item when you purchase a certain amount
| Buy 2 | and pay only $113.70 each 113.7 |
| Buy 3 - 4 | and pay only $111.30 each 111.3 |
| Buy 5 - 10 | and pay only $109.58 each 109.58 |
| Buy 11 or above | and pay only $106.88 each 106.88 |
- Stock Update:
- 02/09/2026 05:08:52 PM PST
Description
This item is brand-new, factory sealed.
Overview
Build and expand your network with the
UniFi® Switch Flex, model USW-Flex. It is a
configurable Layer 2 Gigabit switch with
auto-sensing 802.3at PoE. Five RJ45 Gigabit
Ethernet ports provide one PoE input and
four PoE output links to your devices.
Switching Performance
The USW-Flex offers the forwarding capacity
to simultaneously process traffic on all ports
at line rate without any packet loss.
PoE Flexibility
The USW-Flex features five Gigabit RJ45
ports to deliver robust performance and
intelligent switching for your network.
Port 1 provides PoE input while ports 2-5
offer 802.3at PoE and provide up to 25W
of power for your PoE devices. Products
requiring 802.3at, such as G3 Flex cameras,
are supported.
Indoor/Outdoor Design
The USW-Flex can be installed horizontally
or vertically and offers versatile mounting
options: desktop, wall, and pole.
The weather-resistant USW-Flex can
withstand extreme temperature variations.
If the USW-Flex is installed at an exposed
location outdoors, we recommend the UniFi
Switch Flex Utility, model USW-Flex-Utility,
which is designed for use with the USW-Flex.
Outdoor Enclosure Accessory
An outdoor weatherproof enclosure, the
USW Flex Utility, is available as an optional
accessory. It includes an Ethernet patch
cable and a 60W PoE adapter, which
provides a maximum PoE budget of 46W.
Easily mounted on a pole, the USW Flex
Utility provides clean cable management
and a screw lock for security.
Features
- CE
- FCC
- IC
- Anatel: 00593-21-08356
Additional Information:
- Switching Capacity: 10 Gbps
- Total Non-Blocking Throughput: 5 Gbps
- Forwarding Rate: 7 Mpps
- Supported VLANs: 1,000
- MAC Address Table Size: 2,000
- Management: Ethernet
- Heat Dissipation: 17.1 BTU/hr (Excluding PoE Output)
- Outdoor Ready: Yes
- ESD Protection: Air/contact: ± 16kV
- Ambient Operating Temperature: 46W PoE output: -40 to 55° C (-40 to 131° F), 25W PoE output: -40 to 65° C (-40 to 149° F)
- Ambient Operating Humidity: 5 to 95% noncondensing
- NDAA Compliant: Yes
- Egress Rate Limit: Yes
- Port Isolation: Yes
- Jumbo Frames: Yes
Application/Usage:
Network
Wireless Access Point
Security Camera
Environmental Compliance:
Waste Electrical and Electronic Equipment Directive (WEEE)
Specs
| Management & Protocols | |
| Manageable | Yes |
| Power Description | |
| Power Source | PoE++ |
| PoE Budget | 46 W |
| Input Voltage |
|
| PoE (RJ-45) Port | Yes |
| Power Consumption | 51 W |
| Physical Characteristics | |
| Form Factor |
|
| Weight (Approximate) | 8.11 oz |
| Height | 1.1" |
| Width | 4.8" |
| Depth | 4.2" |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Port/Expansion Slot Details |
|
| Total Number of Network Ports | 5 |
| General Information | |
| Brand Name | Ubiquiti |
| Manufacturer Website Address | http://www.ui.com |
| Product Type | Ethernet Switch |
| Product Name | USW-FLEX Ethernet Switch |
| Manufacturer | Ubiquiti Inc. |
| Manufacturer Part Number | USW-FLEX |
| Product Model | USW-FLEX |
| Media & Performance | |
| Ethernet Technology | Gigabit Ethernet |
| Maximum Data Transfer Rate | 128 MB/s |
| Media Type Supported | Twisted Pair |
| Network Technology | 10/100/1000Base-T |
| Network & Communication | |
| Layer Supported | 2 |
| Technical Information | |
| Features |
|
